7.6.27 Writing the software limit switches of the robot axes
Description The function block KRC_WriteSoftEnd writes the software limit switches of the
robot axes.
Memory
Inputs

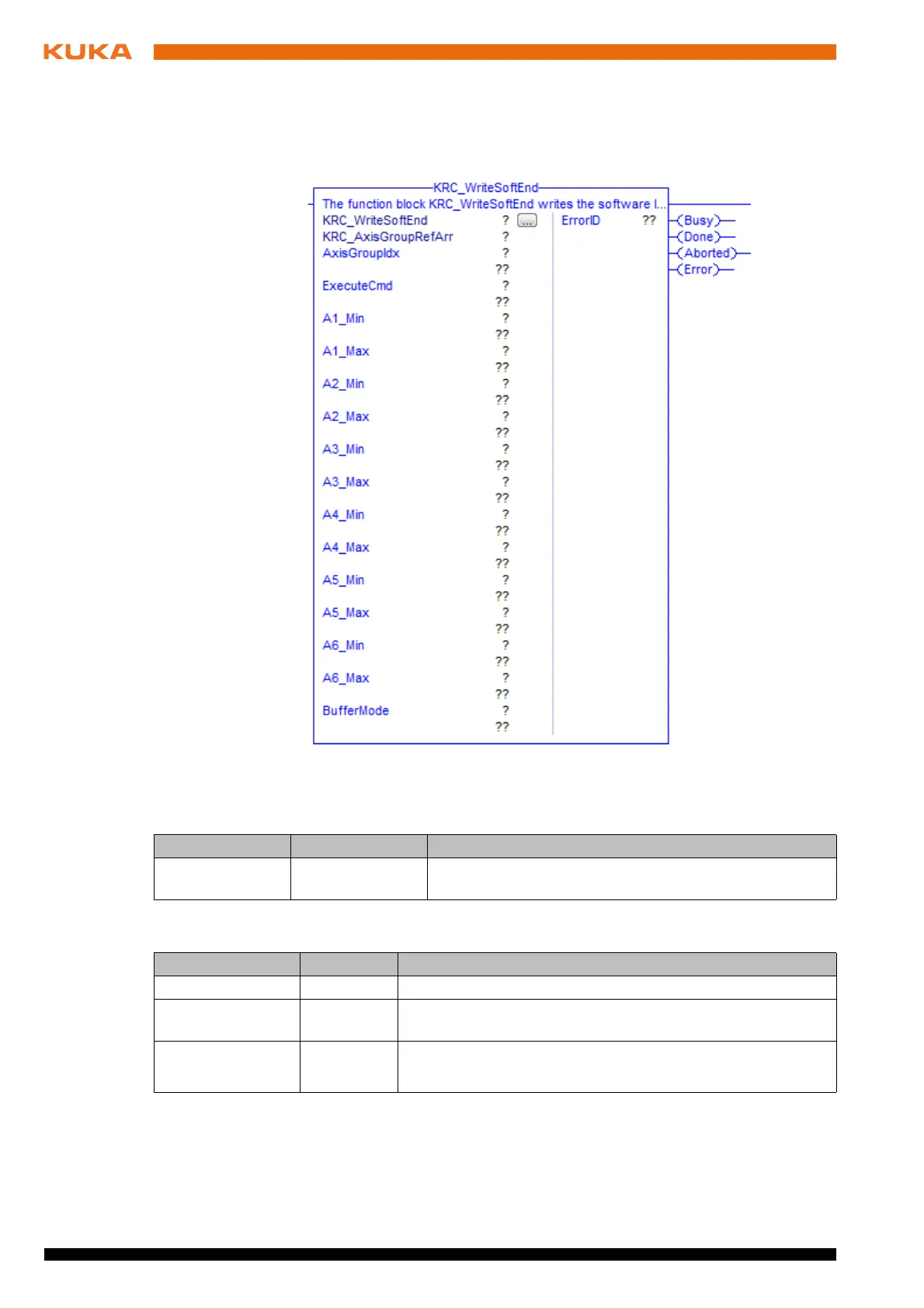

Fig. 7-28: Function block KRC_WriteSoftEnd
Parameter Type Description
KRC_AxisGroup
RefArr
AXIS_GROUP_
REF_ARR
Reference to the internal structure of the axis group
Parameter Type Description
AxisGroupIdx INT Index of axis group
ExecuteCmd BOOL The statement is executed in the case of a rising edge of the
signal.
A1_Min …
A6_Min
REAL Negative software limit switch of axis A1 … A6
(Unit: mm or °)
