KUKA.PLC mxAutomation Logix 1.0

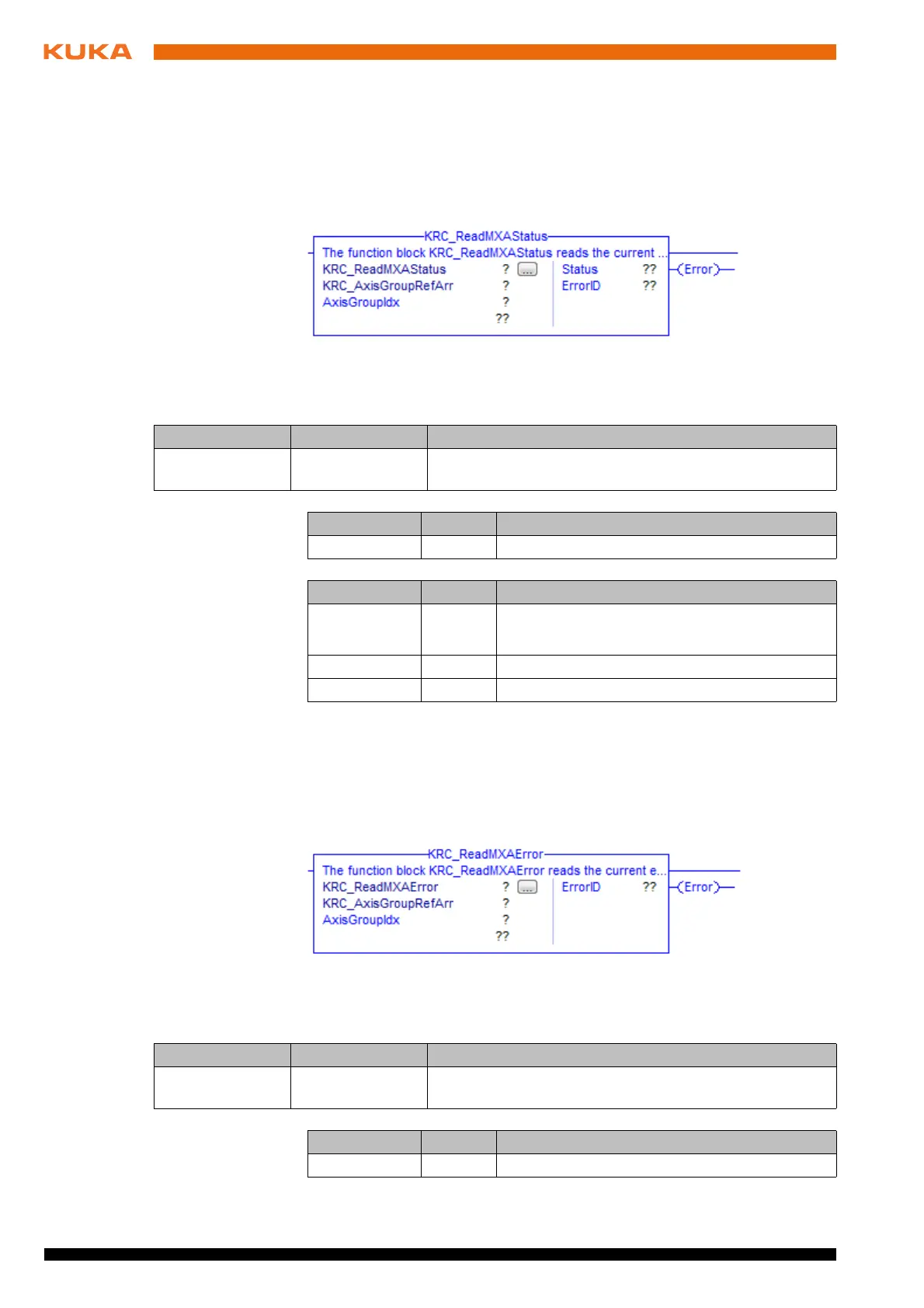

7.8 Diagnostic functions
7.8.1 Reading the current state of the mxA interface
Description The function block KRC_ReadMXAStatus reads the current state of the mxA
interface.
Memory
Inputs
Outputs
7.8.2 Reading error messages of the mxA interface
Description The function block KRC_ReadMXAError reads the current error state of an
axis group. Only error messages generated by the mxA interface are dis-
played.
Memory
Inputs
Fig. 7-48: Function block KRC_ReadMXAStatus
Parameter Type Description
KRC_AxisGroup
RefArr
AXIS_GROUP_
REF_ARR
Reference to the internal structure of the axis group
Parameter Type Description
AxisGroupIdx INT Index of axis group
Parameter Type Description
Status INT Current state of the mxA interface
(>>> "Status" Page 28)
ErrorID DINT Error number
Error BOOL TRUE = error in function block
Fig. 7-49: Function block KRC_ReadMXAError
Parameter Type Description
KRC_AxisGroup
RefArr
AXIS_GROUP_
REF_ARR
Reference to the internal structure of the axis group
Parameter Type Description
AxisGroupIdx INT Index of axis group
