7 Programming
Outputs
7.6.21 Reading BASE data
Description The function block KRC_ReadBaseData reads the BASE data of the robot.
Memory
Inputs
ToolNo INT Number of the TOOL coordinate system
 1 … 16: TOOL_DATA[1 … 16]
BufferMode INT Mode in which the statement is executed
 0: DIRECT
 1: ABORTING
 2: BUFFERED
(>>> "BufferMode" Page 27)
Parameter Type Description
Parameter Type Description
ErrorID DINT Error number
Busy BOOL TRUE = statement is currently being trans-
ferred or has already been transferred
Done BOOL TRUE = statement has been executed
Aborted BOOL TRUE = statement was aborted before it was
processed in the advance run
Error BOOL TRUE = error in function block

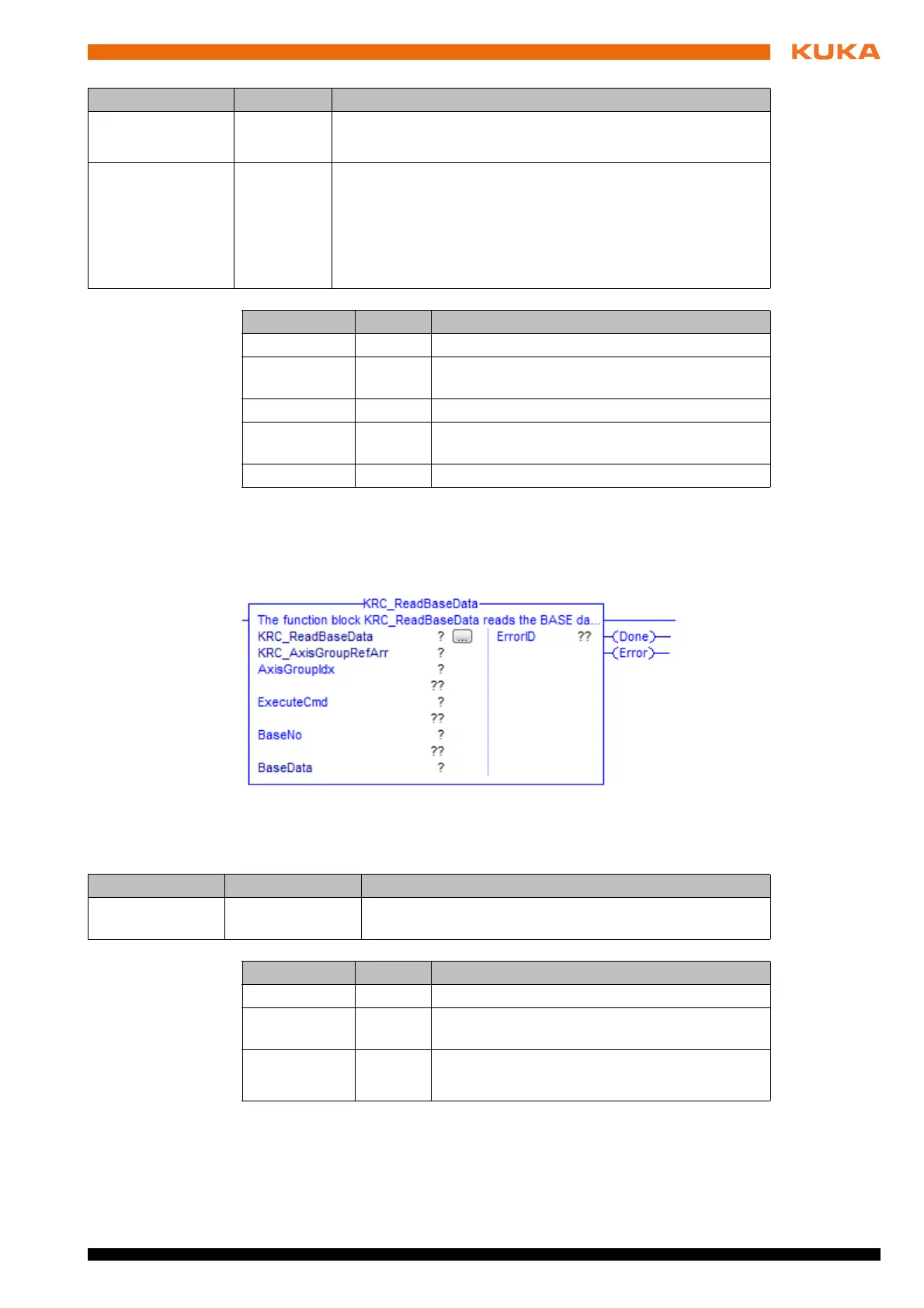

Fig. 7-22: Function block KRC_ReadBaseData
Parameter Type Description
KRC_AxisGroup
RefArr
AXIS_GROUP_
REF_ARR
Reference to the internal structure of the axis group
Parameter Type Description
AxisGroupIdx INT Index of axis group
ExecuteCmd BOOL The statement is executed in the case of a ris-
ing edge of the signal.
BaseNo INT Number of the BASE coordinate system
 1 … 32: BASE_DATA[1 … 32]
