Outputs
7.6.30 Activating interrupts
Description The function block KRC_ActivateInterrupt activates a previously declared in-
terrupt. There are 8 predefined interrupts available for this.
An interrupt cannot be processed until the interrupt has been activated by the
main run of the robot interpreter. The function block KRC_WaitForInput can be
used to monitor and check whether an interrupt is active.
Memory
Reaction INT Reaction to the interrupt
0: BRAKE F + HALT
1: BRAKE + HALT
2: BRAKE F + WAIT FOR $IN[Input]<>InputValue
3: BRAKE + WAIT FOR $IN[Input]<>InputValue
4: BRAKE F + WAIT FOR KRC_Continue
5: BRAKE + WAIT FOR KRC_Continue
6: BRAKE F + WAIT FOR $IN[Input]<>InputValue AND
KRC_Continue
7: BRAKE + WAIT FOR $IN[Input]<>InputValue AND
KRC_Continue
BufferMode INT Mode in which the statement is executed
1: ABORTING
2: BUFFERED
(>>> "BufferMode" Page 27)
Parameter Type Description
Parameter Type Description
ErrorID DINT Error number
Busy BOOL TRUE = statement is currently being transferred or has
already been transferred
Done BOOL TRUE = statement has been processed in the advance run
Note: The statement can no longer be aborted. Exception:
Program is deselected or reset.
Aborted BOOL TRUE = statement was aborted before it was processed in
the advance run
Error BOOL TRUE = error in function block

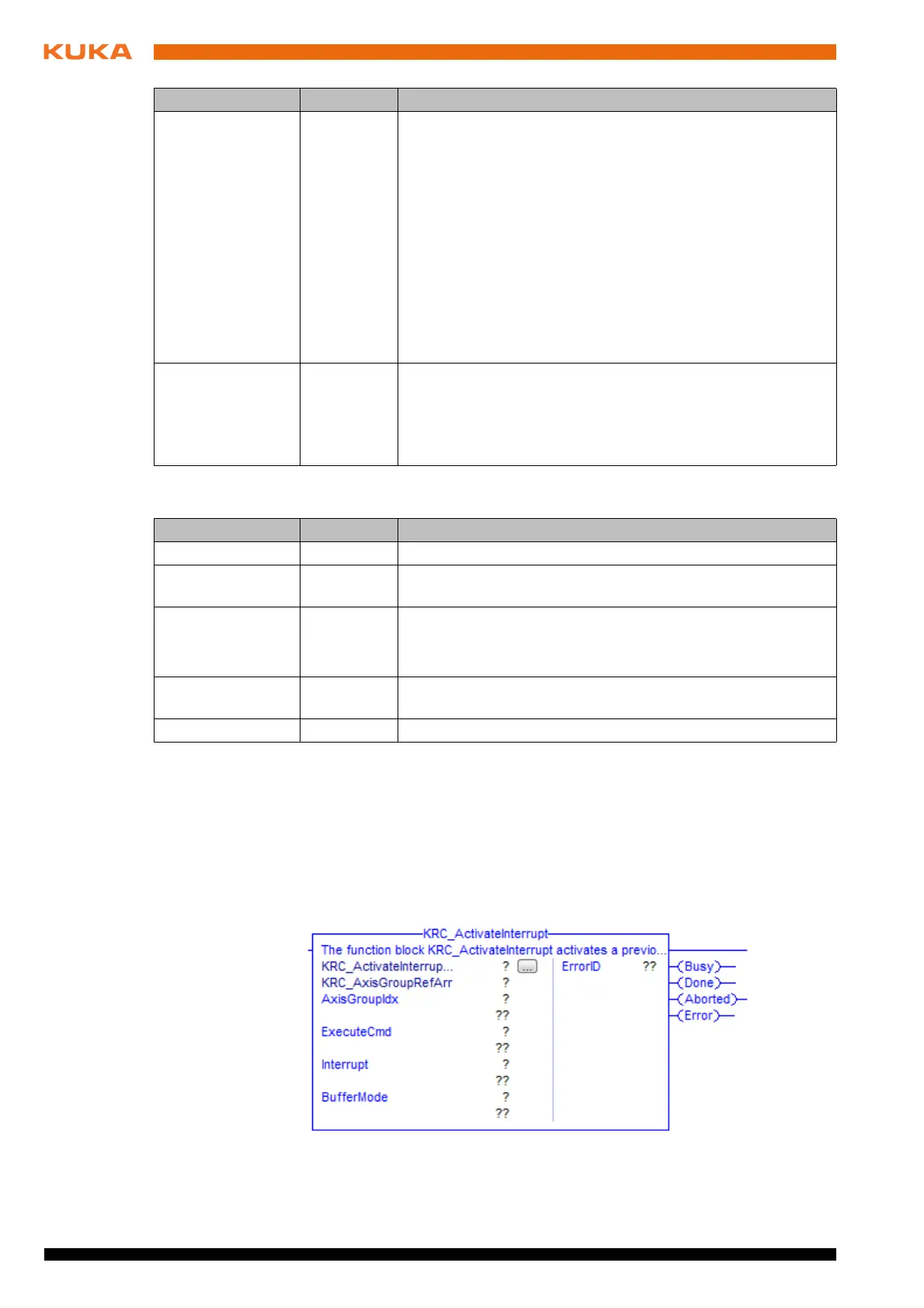

Fig. 7-31: Function block KRC_ActivateInterrupt
