3-18

Preparation before Use > Precautions for Outputting Paper

Precautions for Outputting Paper

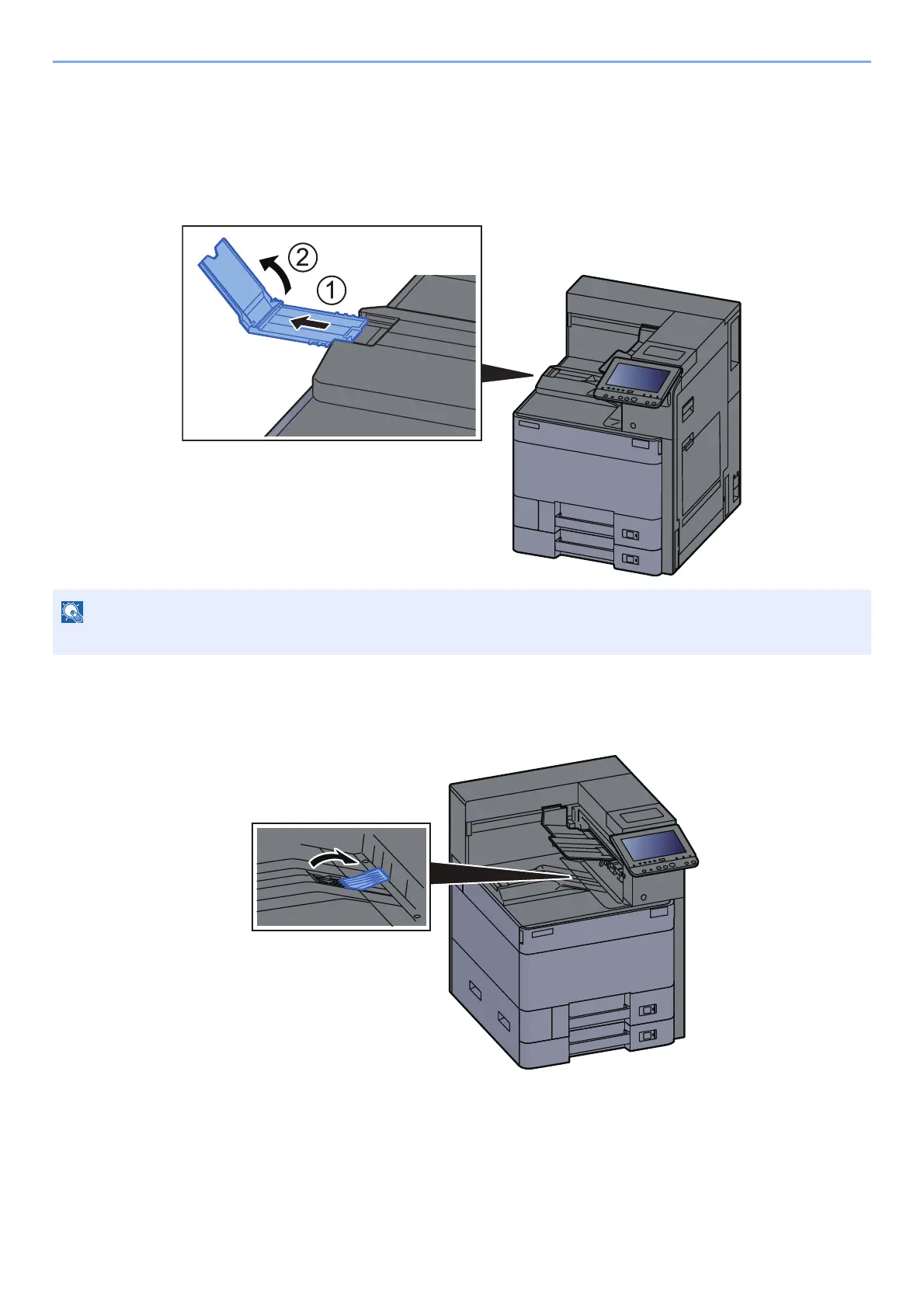

Paper Stopper

When using paper A3/Ledger or larger, open the paper stopper shown in the figure.

Envelope Stack Guide

To use an envelope, open the Envelope Stack Guide as shown below.

NOTE

When using the Job Separator for output, you can if needed open the paper stopper on the Job Separator.
