Troubleshooting > Clearing Paper Jams
After you remove the jam, the machine will warm up again and the error message will be cleared. The machine resumes
with the page that was printing when the jam occurred.
Remove any jammed paper in Cassette 1
1
If the optional side feeder is installed, detach the side feeder.

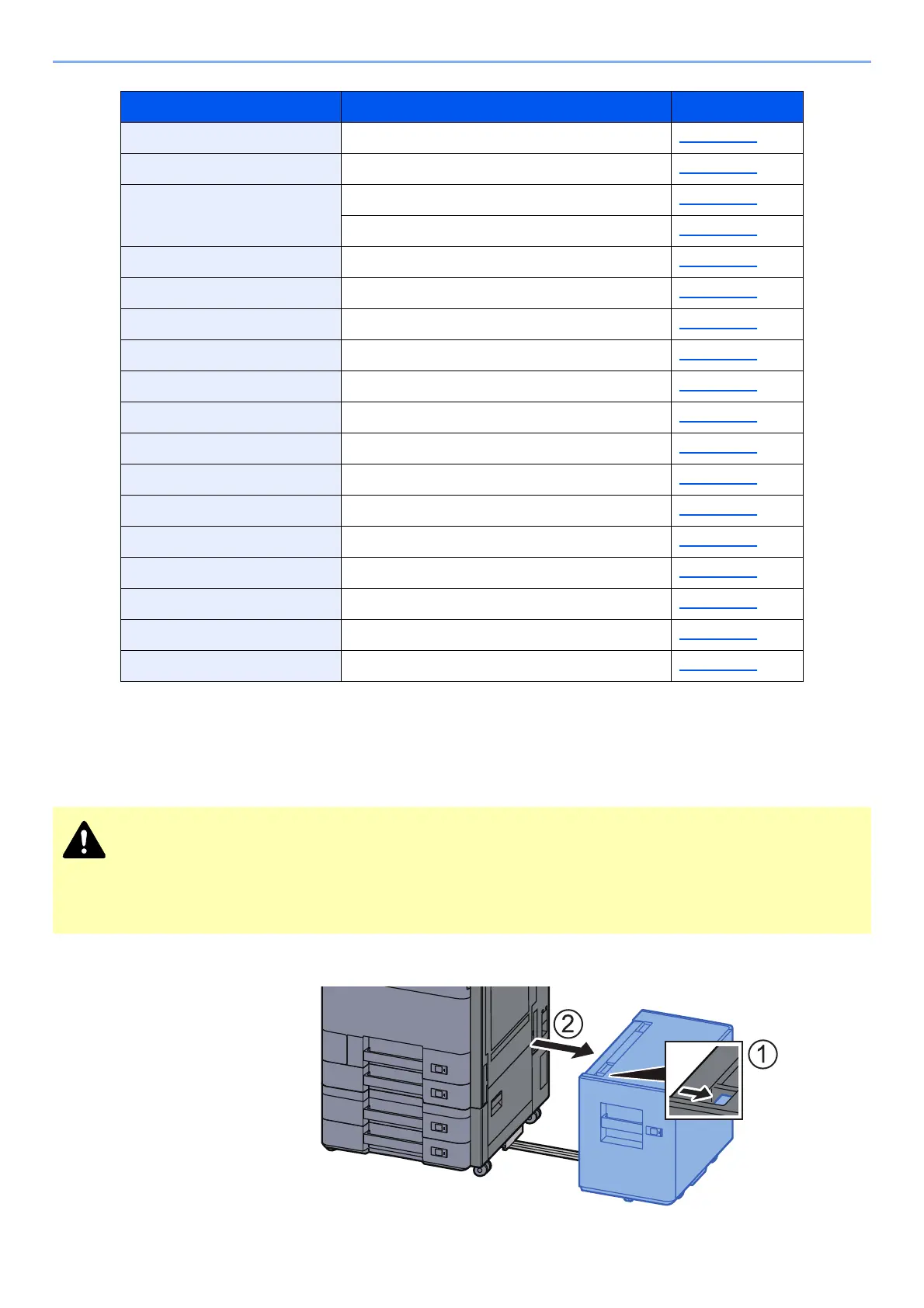

Paper Jam Location Indicator
Paper Jam Location Reference Page
A Cassette 1 page 10-41
B Cassette 2 page 10-44
C Cassette 3 (500-sheet×2) page 10-47
Cassette 3 (1,500-sheet×1) page 10-49
D Cassette 4 (500-sheet×2) page 10-47
E Cassette 4 (1,500-sheet×2) page 10-51
F Cassette 5 (Side Feeder) page 10-54
G Multipurpose Tray page 10-56
H Right Cover 1 page 10-57
I Right Cover 2 page 10-61
J Bridge Unit page 10-64
K Mailbox page 10-65
L 1,000-Sheet Finisher page 10-66
M 4,000-Sheet Finisher (Inner) page 10-69
N 4,000-Sheet Finisher (Tray A) page 10-70
O 4,000-Sheet Finisher (Tray B) page 10-74
P Folding Unit page 10-77
Q Folding Tray page 10-82
• Do not reuse jammed papers.
• If the paper tears during removal, be sure to remove any loose scraps of paper from inside the machine.
Scraps of paper left in the machine could cause subsequent jamming.
