Troubleshooting > Clearing Paper Jams

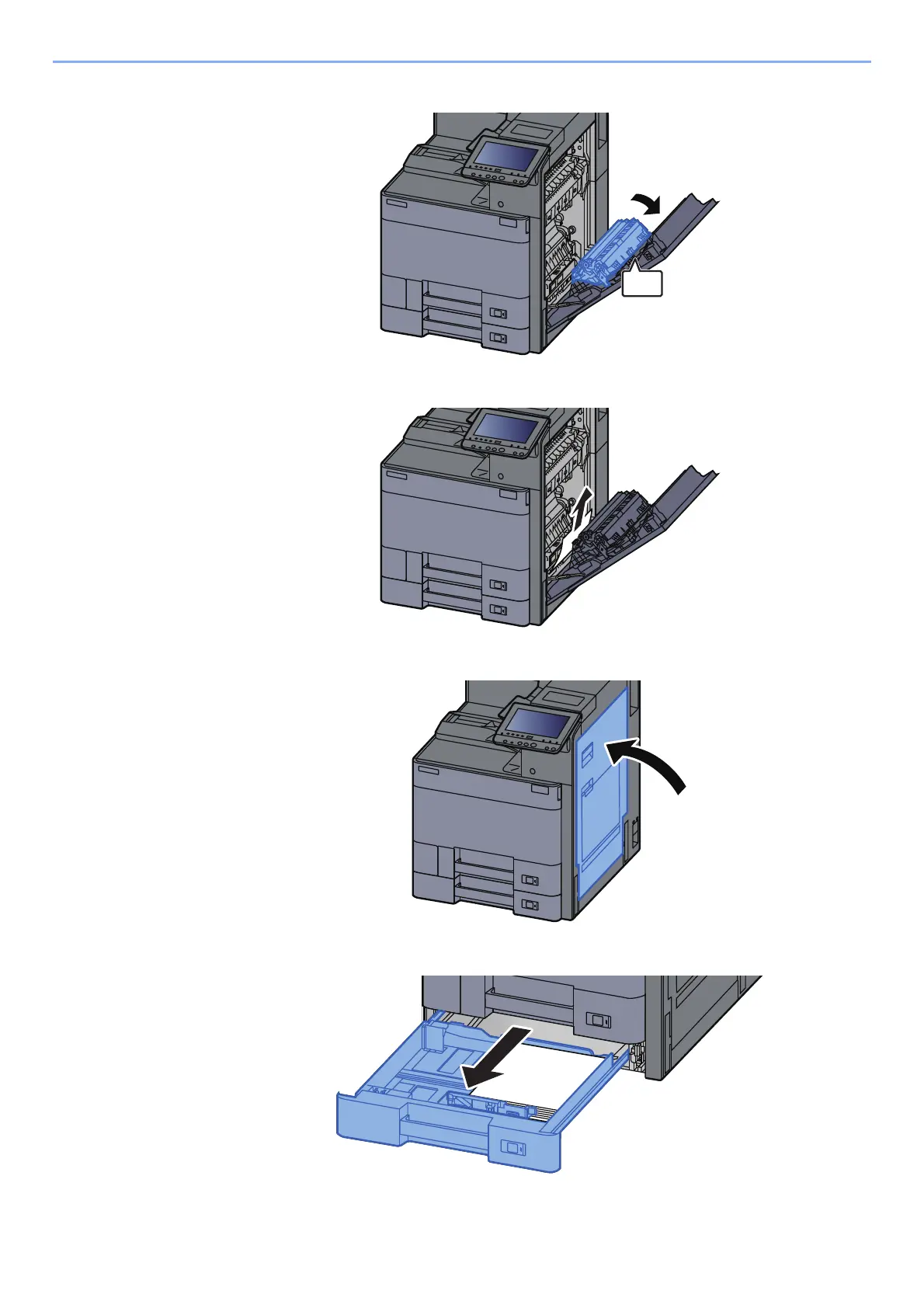

Close the duplex unit (A5).

Remove any jammed paper.

Return the cover to the original position.

Pull Cassette 2 out toward you until it stops.
