Troubleshooting > Clearing Paper Jams

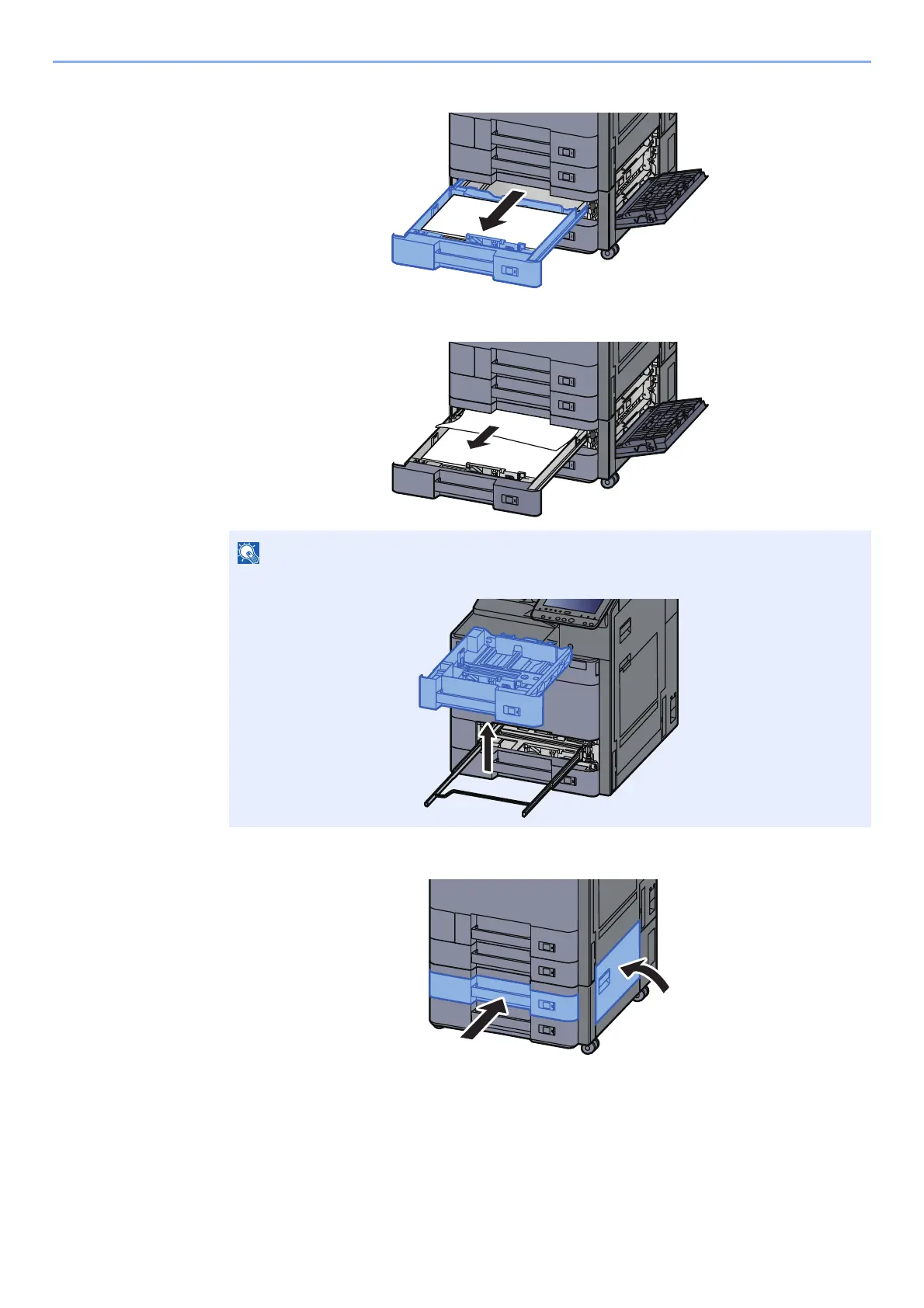

Pull Cassette 3 out toward you until it stops.

Remove any jammed paper.

Push Right Cover 2 and Cassette 3 back in.

NOTE

To remove paper which is difficult to get access to, the cassette can be removed.
