Troubleshooting > Clearing Paper Jams

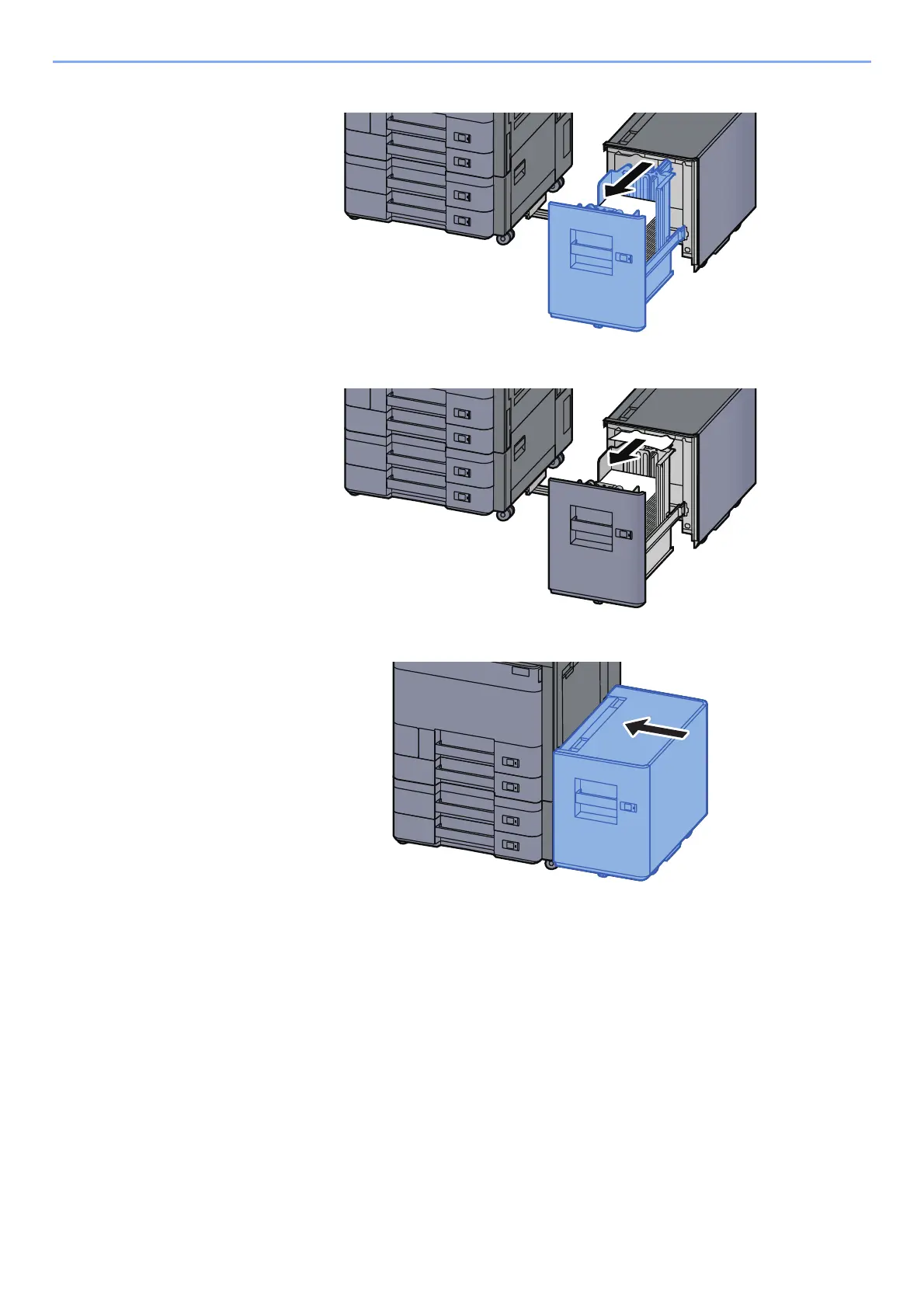

Pull Cassette 5 out toward you until it stops.

Remove any jammed paper.

Return the Cassette 5 and side feeder to the original position.
