Troubleshooting > Clearing Paper Jams

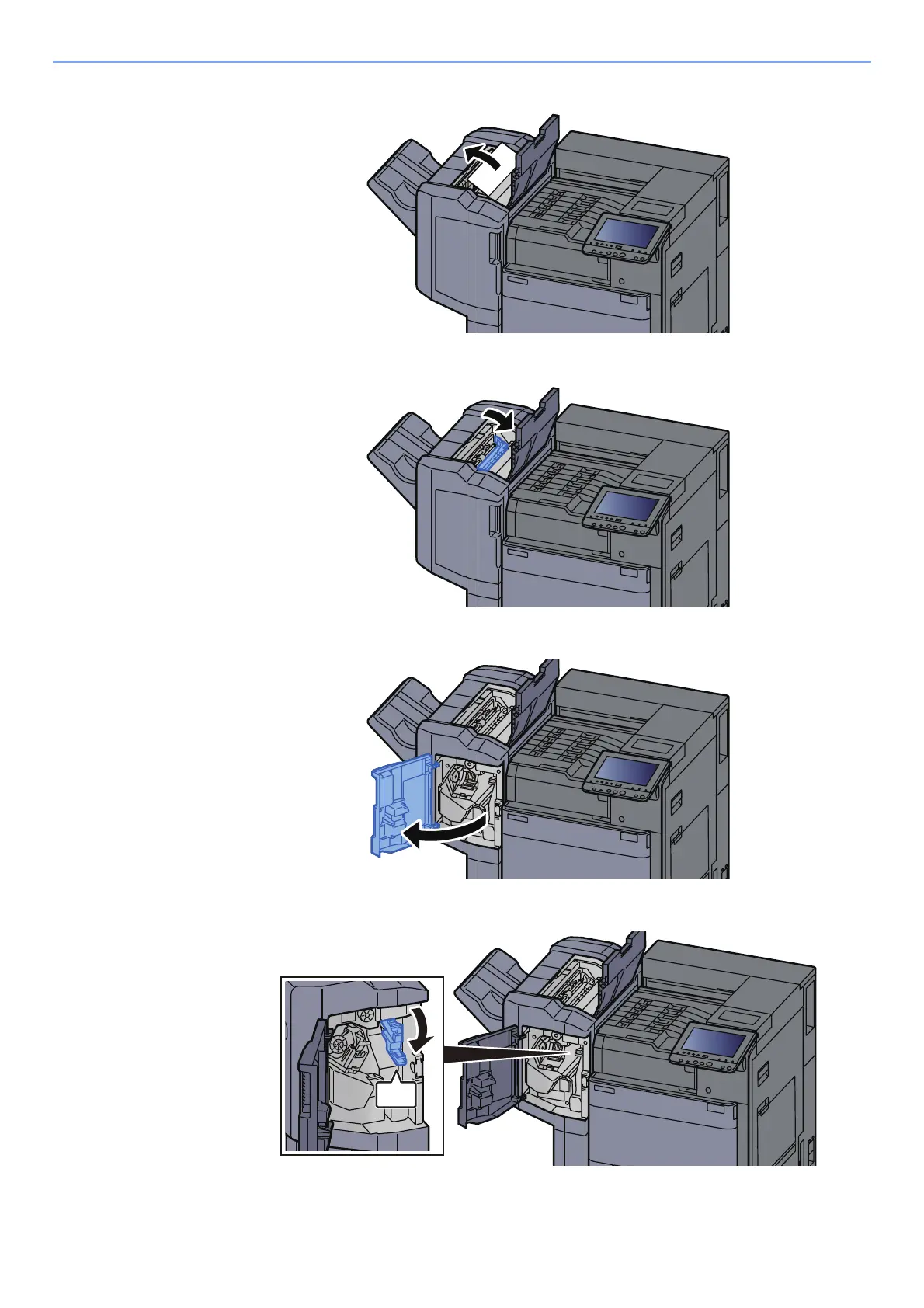

Remove any jammed paper.

Return the conveyor guide (D2) to the original position.

Open the finisher front cover.

Open the conveyor guide (D1).
