10-83

Troubleshooting > Clearing Paper Jams

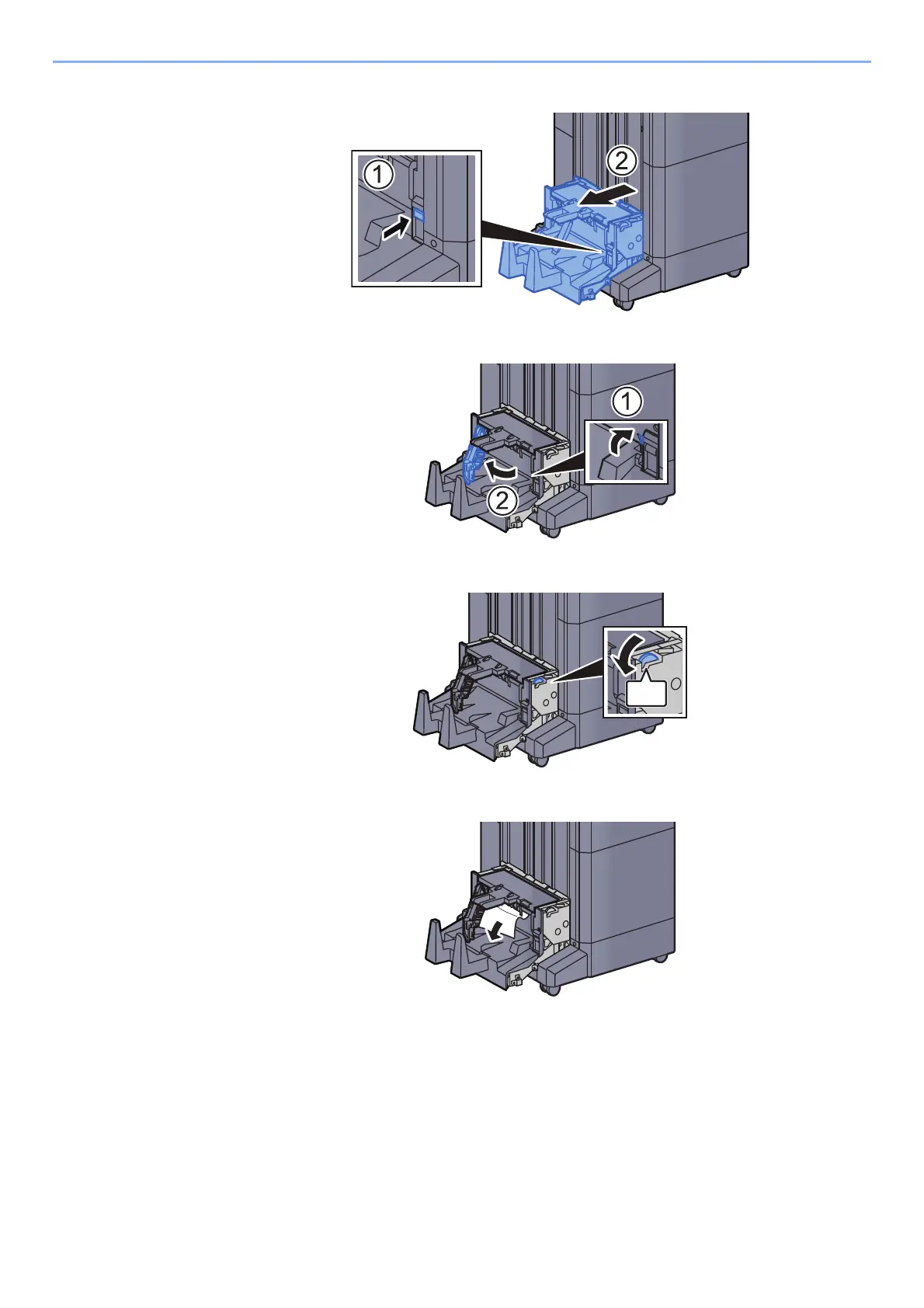

Press the release lever to pull the folding unit out.

Open the folding unit left cover.

Turn dial (D9).

Remove any jammed paper.
