Troubleshooting > Clearing a Staple Jam

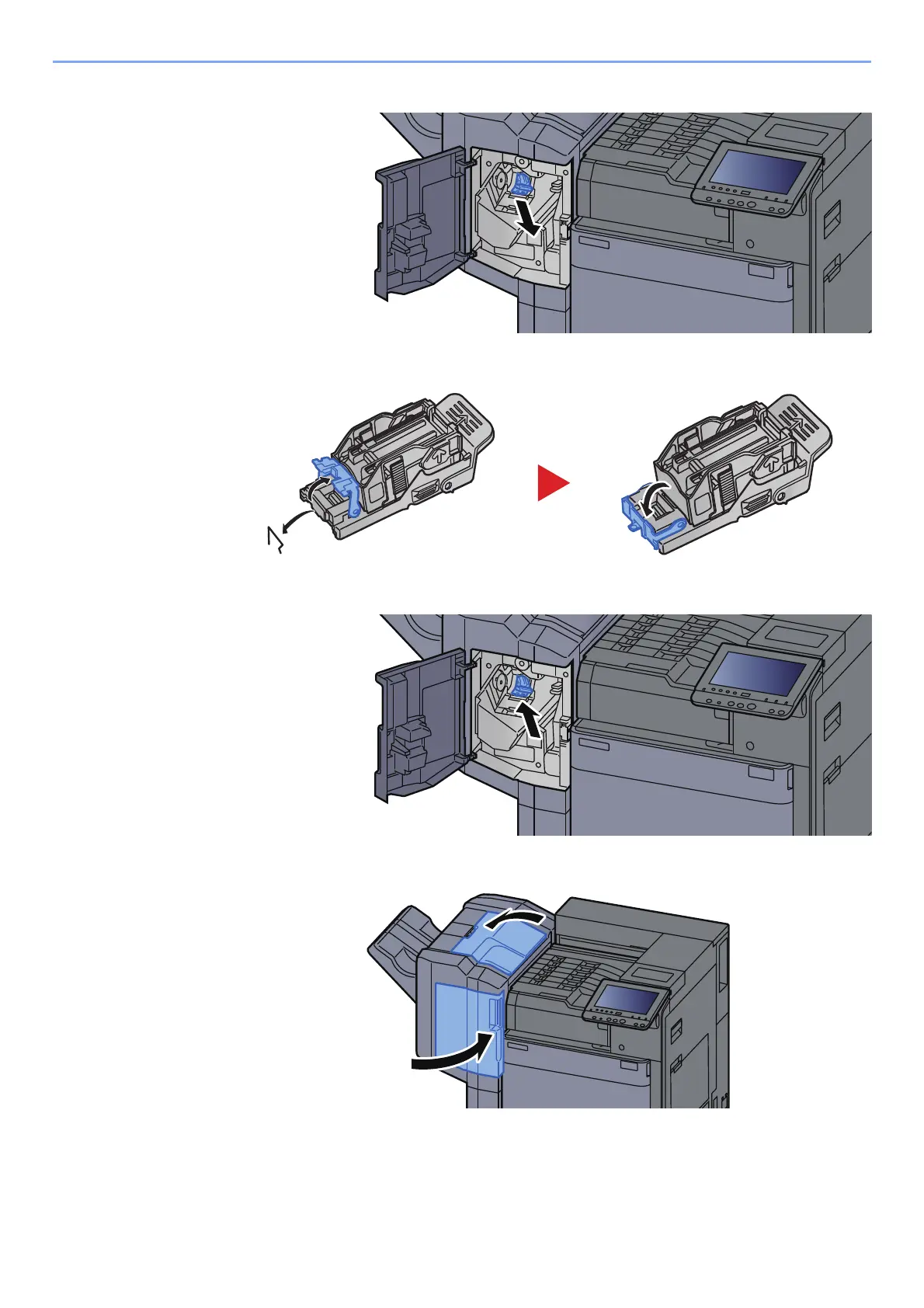

Remove the Staple Cartridge Holder.

Remove the jammed staple.

Install the Staple Cartridge Holder.

Return the covers to the original position.
