Troubleshooting > Clearing a Staple Jam

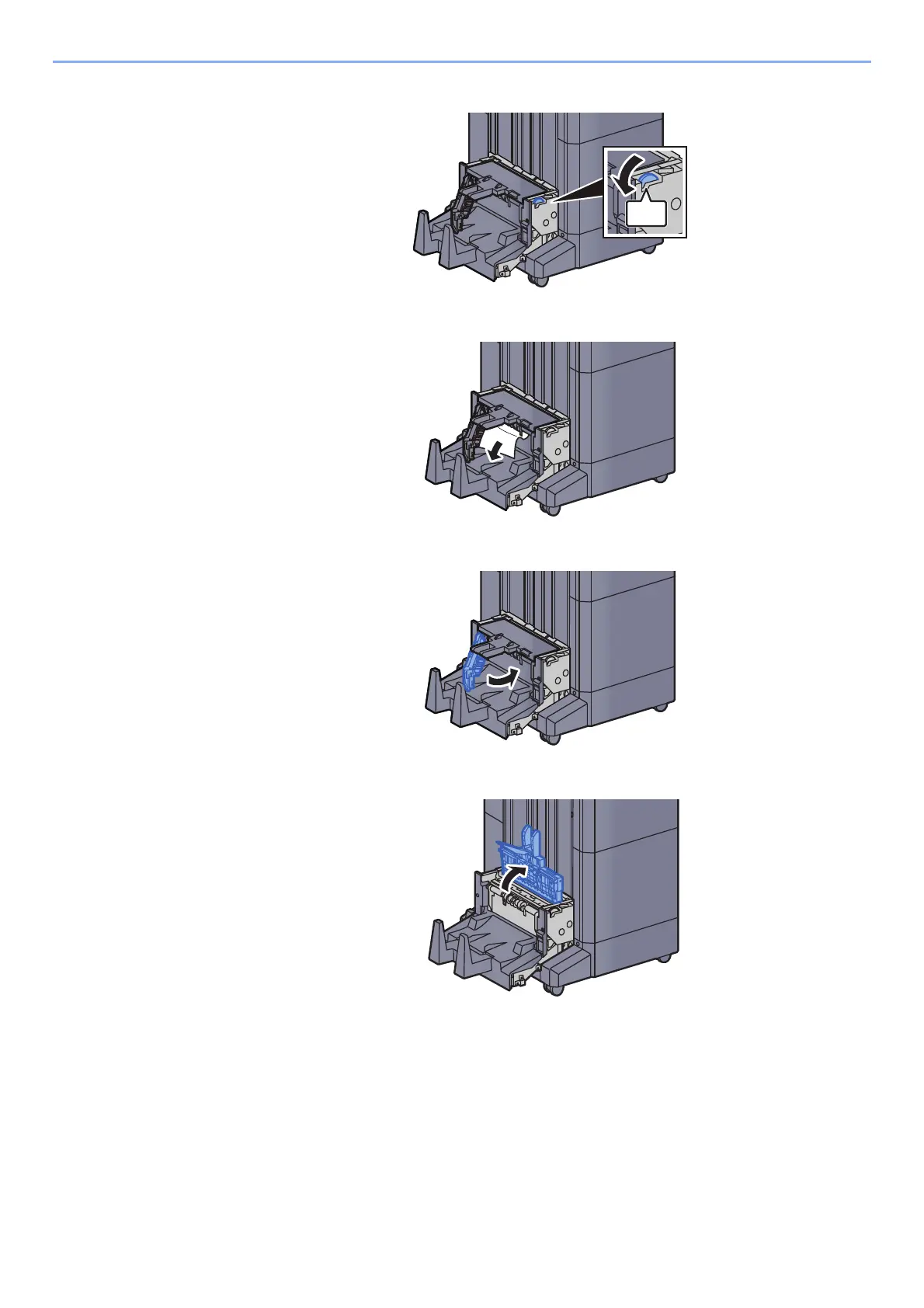

Turn dial (D9).

Remove any jammed paper.

Return the folding unit left cover to the original position.

Open the folding unit top cover.
