Kyocera FS-C8520MFP - Parts Names (Rear Side)

2MY/2MZ
1-1-7

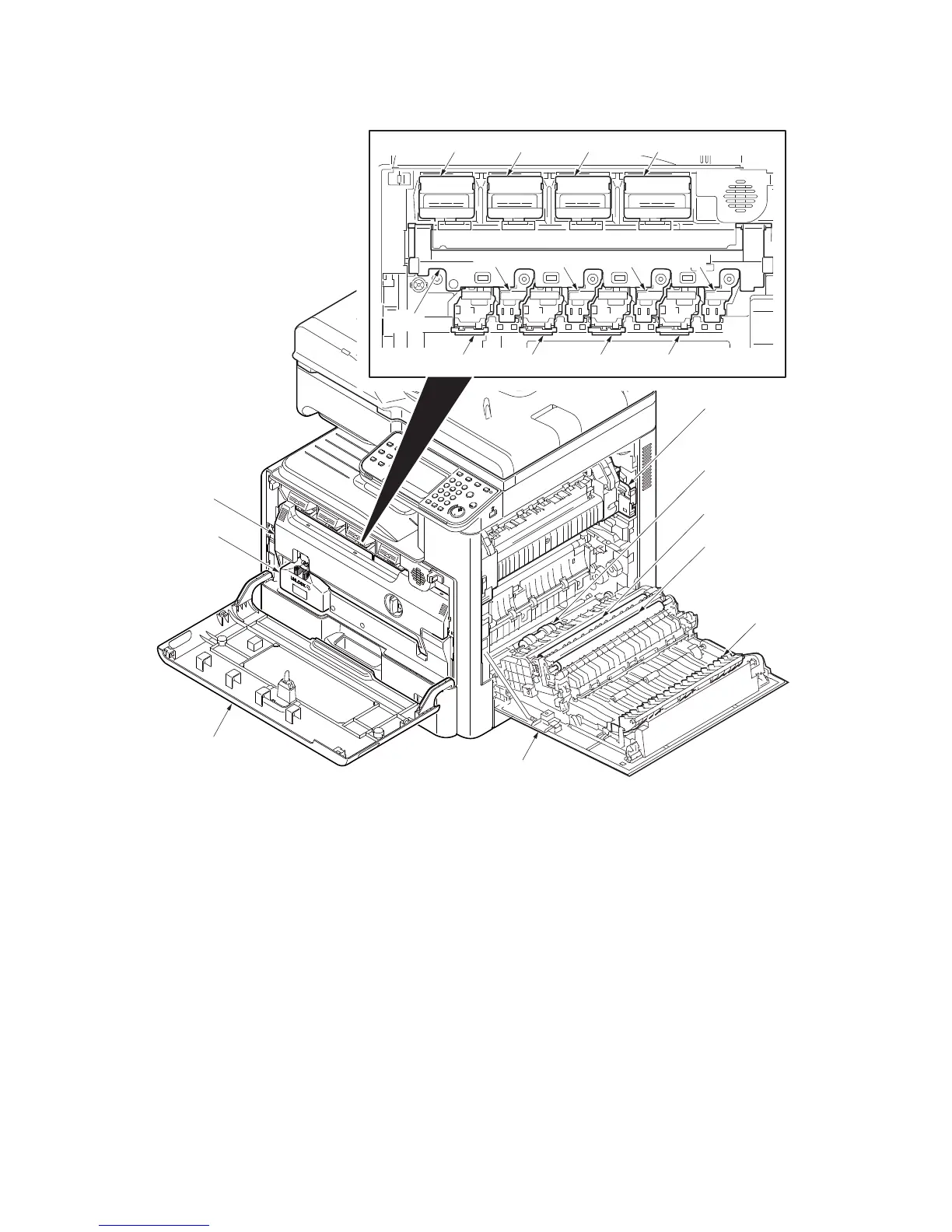

Figure 1-1-2
24
18
16
19
21
22
23
20
37
25 26 27 28
33 34 35 36
29 30 31 32
17
16. Front cover
17. Duct cover
18. Waste toner box
19. Right cover 1
20. MP paper feed roller
21. Right registration roller
22. Secondary transfer roller
23. Feed shift guide
24. Fuser unit
25. Toner container /Y
26. Toner container /C
27. Toner container /M
28. Toner container /K
29. Drum unit /Y
30. Drum unit /C
31. Drum unit /M
32. Drum unit /K
33. Developer unit /Y
34. Developer unit /C
35. Developer unit /M
36. Developer unit /K
37. Duct holder
