Kyocera FS-C8520MFP - Machine Cross Section Diagram

2MY/2MZ
1-1-10

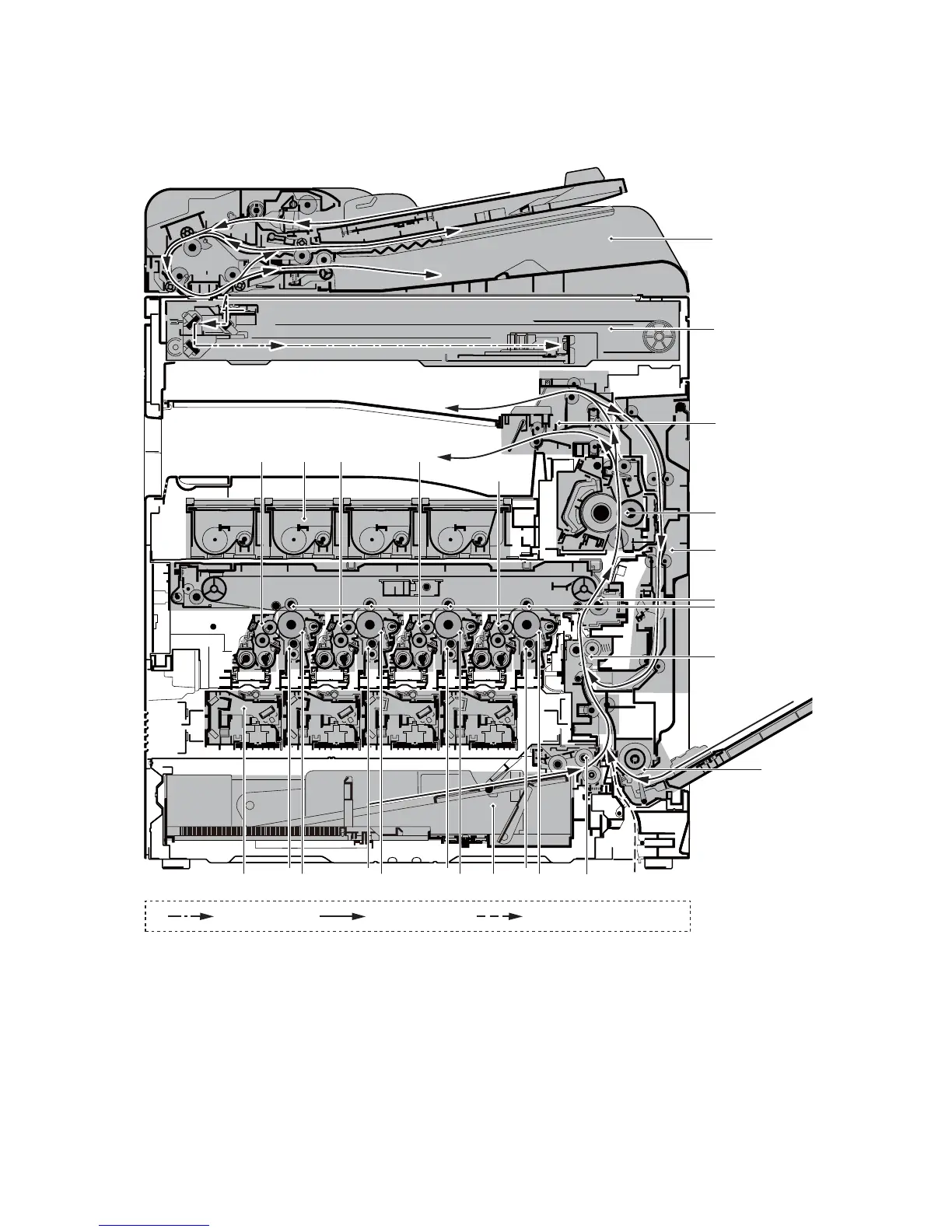

1-1-3 Machine cross section
Figure 1-1-5
Light path Paper path Paper path (option)
3
4
6
5
7
10
22
9
8
1213 14 15
16
1
11
21
11 11 11
17 18 19 20
2
1. Cassette
2. Cassette paper feed section
3. MP tray paper feed section
4. Conveying section
5. Primary transfer section
6. Secondary transfer section /
Separation sections
7. Fuser unit
8. Eject section
9. Duplex/conveyning section
10. Image scanner unit (ISU)
11. Charger roller unit
12. Toner container /YCMK
13. Developer unit /Y
14. Developer unit /C
15. Developer unit /M
16. Developer unit /K
17. Drum unit /Y
18. Drum unit /C
19. Drum unit /M
20. Drum unit /K
21. Laser scanner unit (LSU)
/YCMK
22. Document processor (DP)
