Kyocera FS-C8520MFP - Eject;Feed Shift Section Block Diagram

Kyocera FS-C8520MFP

399 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

2MY/2MZ

2-1-19

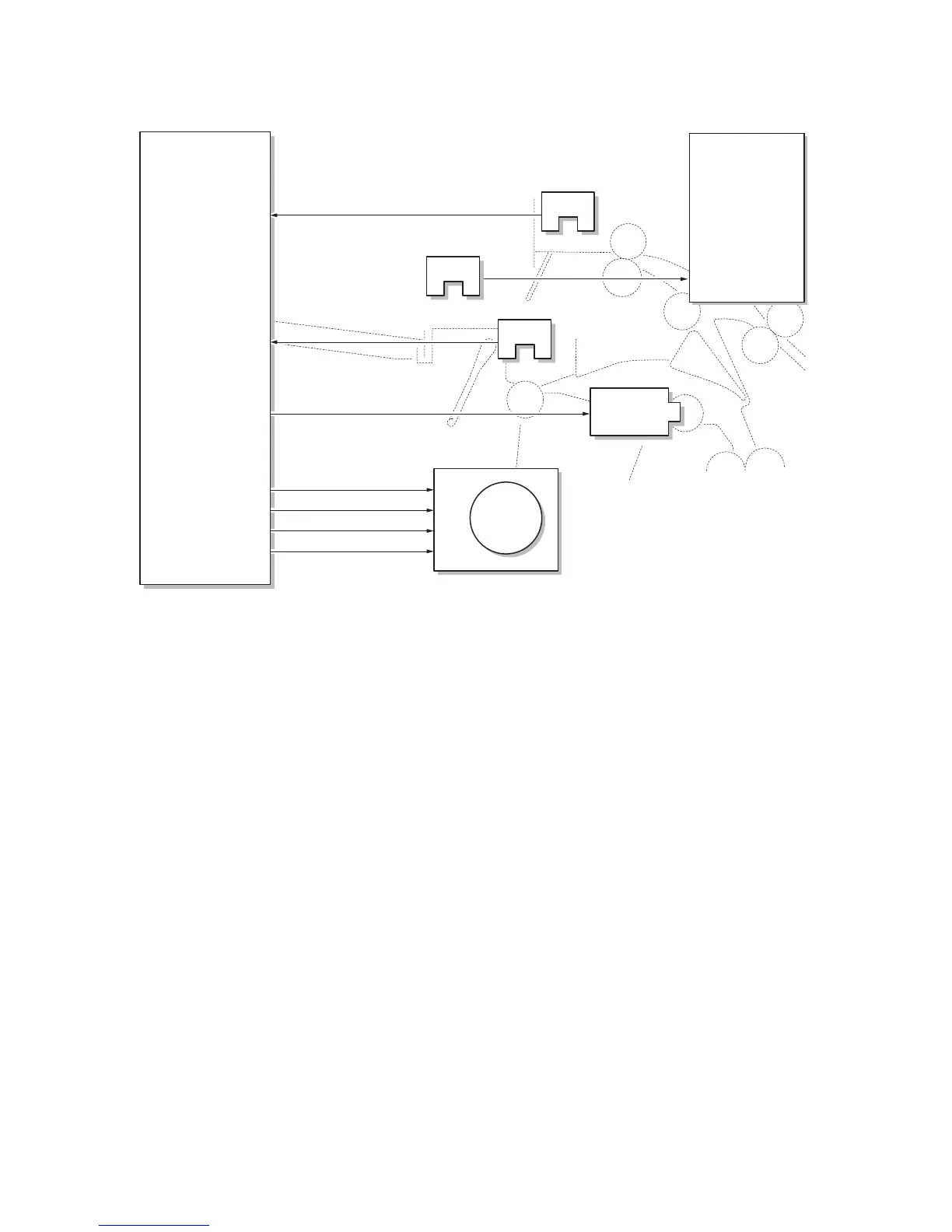

Figure 2-1-23 Eject/Feed shift section block diagram

EPWB

EJE_FULL_DWN

EJE_FULL_UP

EJECT_B

YC20-5

EJECT_A

YC20-6

3

2

1

EJECT_/B

YC20-3

YC20-1 1

EJECT_/A

EJE_SOL_RETURN

YC20-4

4

YC20-12

YC20-9

EM

PFS

JPFS

SECOND_TRAY_SW

YC3-2

JEPS

FSSOL

OPPWB
