2MY/2MZ
2-2-6
(3) Motors

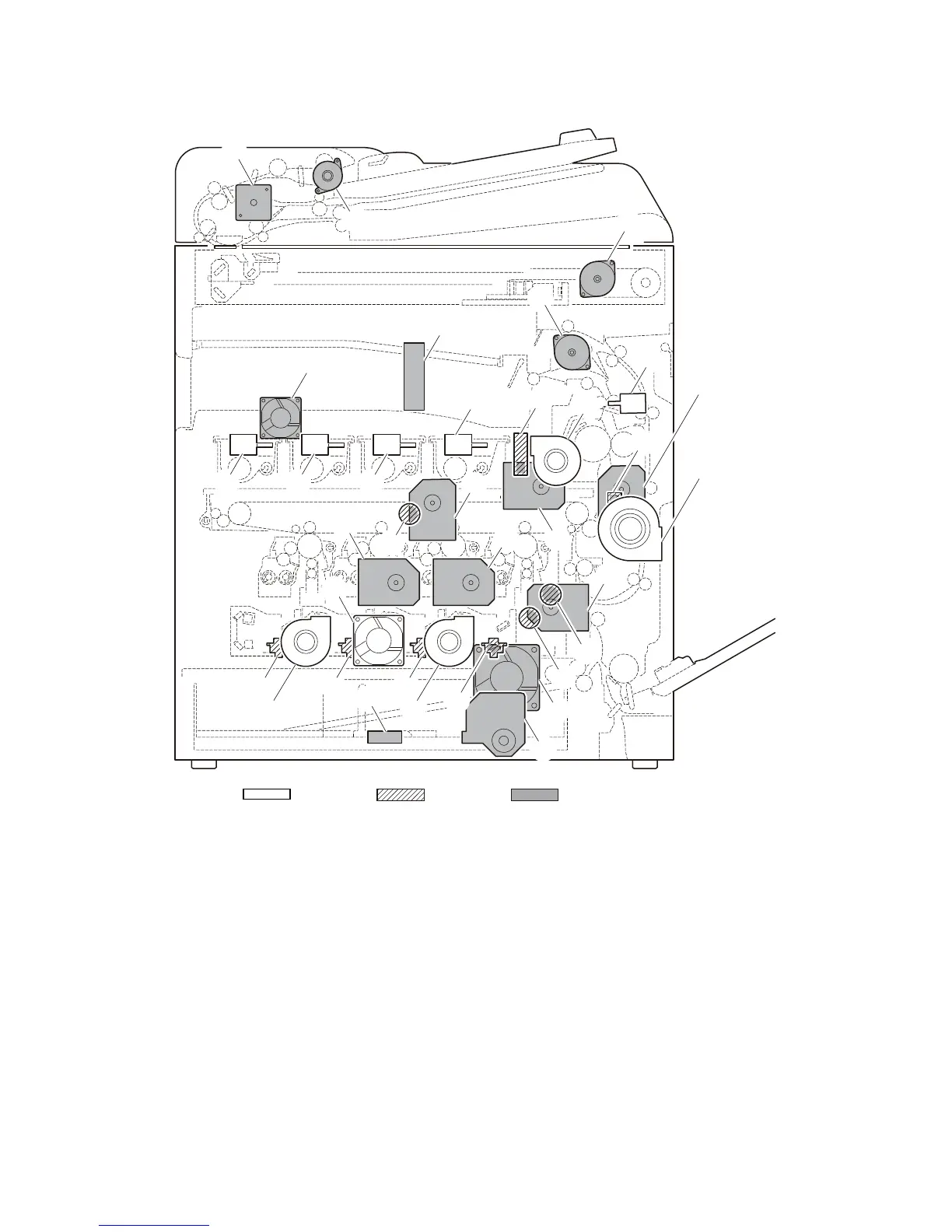

Figure 2-2-3 Motors
1. ISU motor (ISUM) ................................. Drives the ISU.
2. Fuser motor (FUM) ............................... Drives the fuser section.
3. Eject motor (EM) ................................... Drives the eject section.
4. Lift motor (LM)....................................... Operates the bottom plate.
5. Drum motor K (DRM-K) ........................ Drives the drum unit K.
6. Drum motor YCM (DRM-YCM) ............. Drives the drum unit YCM.
7. Developer motor K (DEVM-K)............... Drives the developer unit K.
8. Developer motor YCM (DEVM-YCM) ... Drives the developer unit YCM.
9. Conveying motor (CM).......................... Drives the paper feed section and conveying section.
10. Toner motor Y (TM-Y) ........................... Replenishes toner to the developer unit Y.
11. Toner motor C (TM-C)........................... Replenishes toner to the developer unit C.
12. Toner motor M (TM-M) .......................... Replenishes toner to the developer unit M.
13. Toner motor K (TM-K) ........................... Replenishes toner to the developer unit K.
