U067 Adjusting the scanner center line
Description
Adjusts the scanner center line of the original scanning.
Purpose
Perform this adjustment if there is a unmatching error between the center lines of the copy image
and original.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.l
6. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.

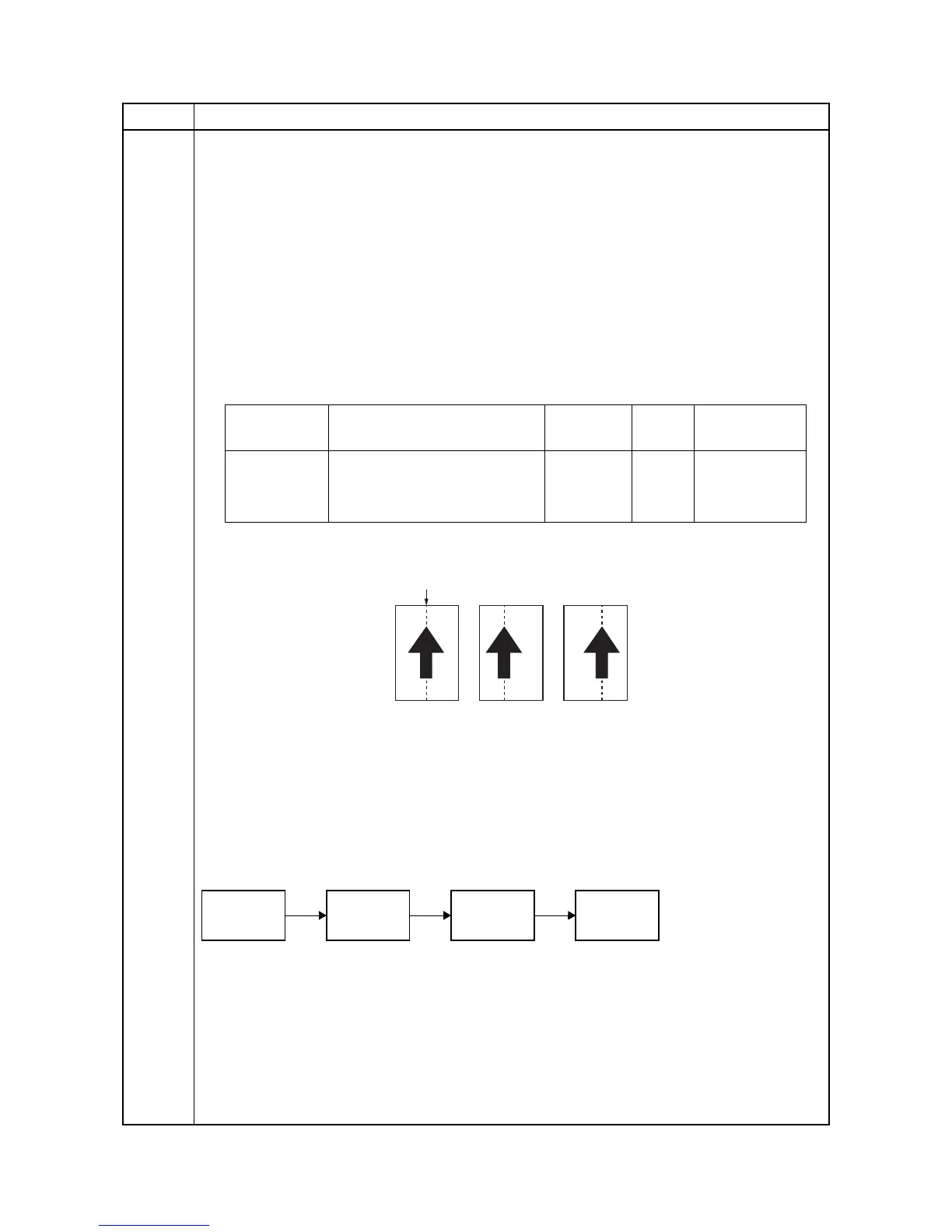

Figure 1-3-8
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following
adjustments in maintenance mode.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Front Scanner center line -40 to 40 0 0.085 mm
Rotate Scanner center line (rotate
copying)
-40 to 40 0 0.100 mm
Original Copy
example 1
Copy
example 2
Scanner center line (within ± 2.0 mm)
U067
U403
( P.1-3-78)
U072
( P.1-3-40)
U404
( P.1-3-79)
