Kyocera FS-C8520MFP - Detaching and Refitting LED Unit

2MY/2MZ
1-5-24
(3) Detaching and refitting the LED unit
Procedure
1. Remove the DP or original cover.
(See page 1-5-26)
2. Remove the sanner right cover and
platen.(See page 1-5-21)

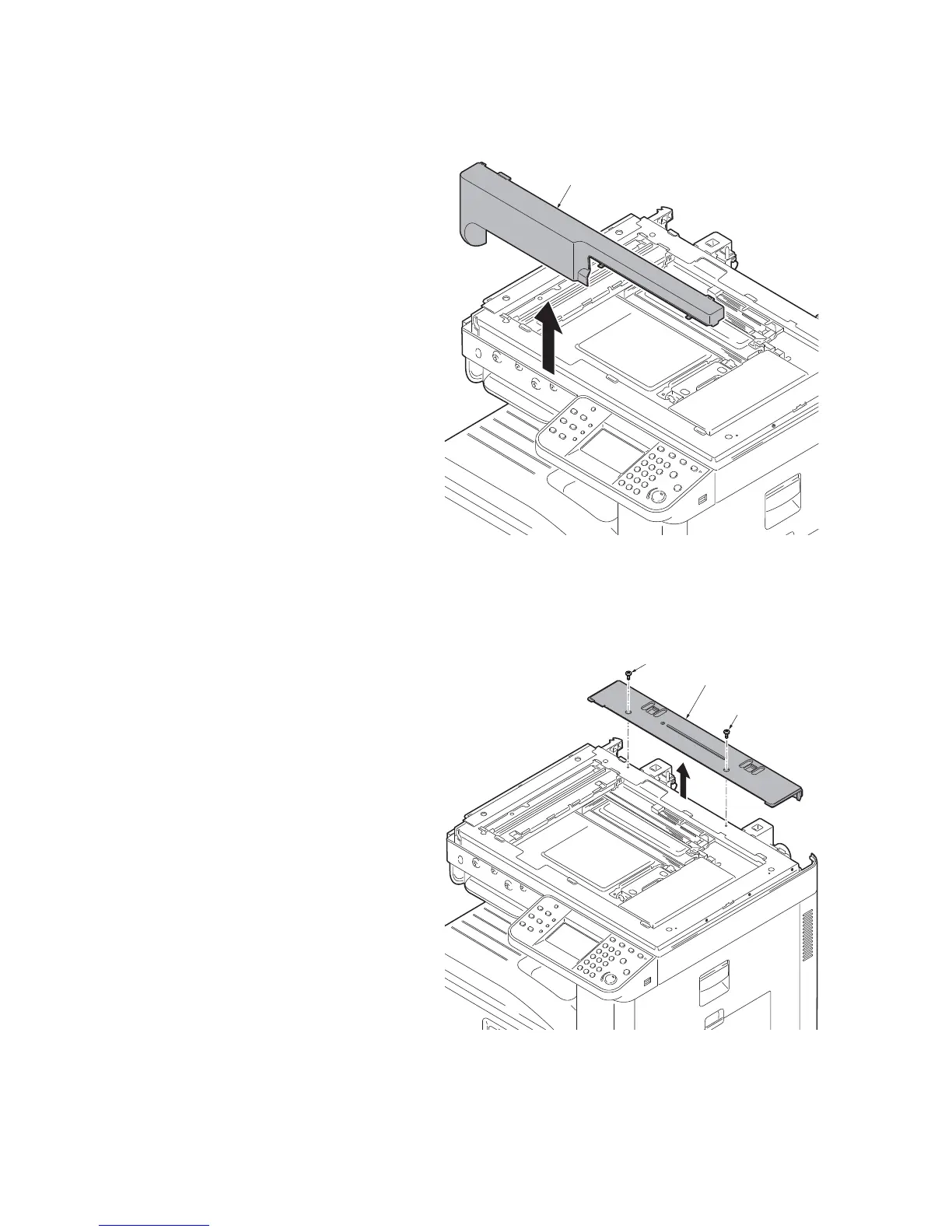

3. Remove the ISU front cover.
Figure 1-5-42
4. Remove two screws and then remove
the ISU rear cover.
Figure 1-5-43
ISU front cover
Screw
Screw
ISU rear cover
