Kyocera FS-C8520MFP - Detaching and Refitting the Power Source PWB

2MY/2MZ
1-5-33
(3) Detaching and refitting the power source PWB
Procedure
1. Remove the rear cover and inner
tray.(See page 1-5-5,1-5-6)
2. Remove the power source fan
motor.(See page 1-5-20)
3. Remove all connecters from the power
source PWB.
4. Remove four screws and then remove
the power source PWB.
5. Check or replace the power source
PWB and refit all the removed parts.

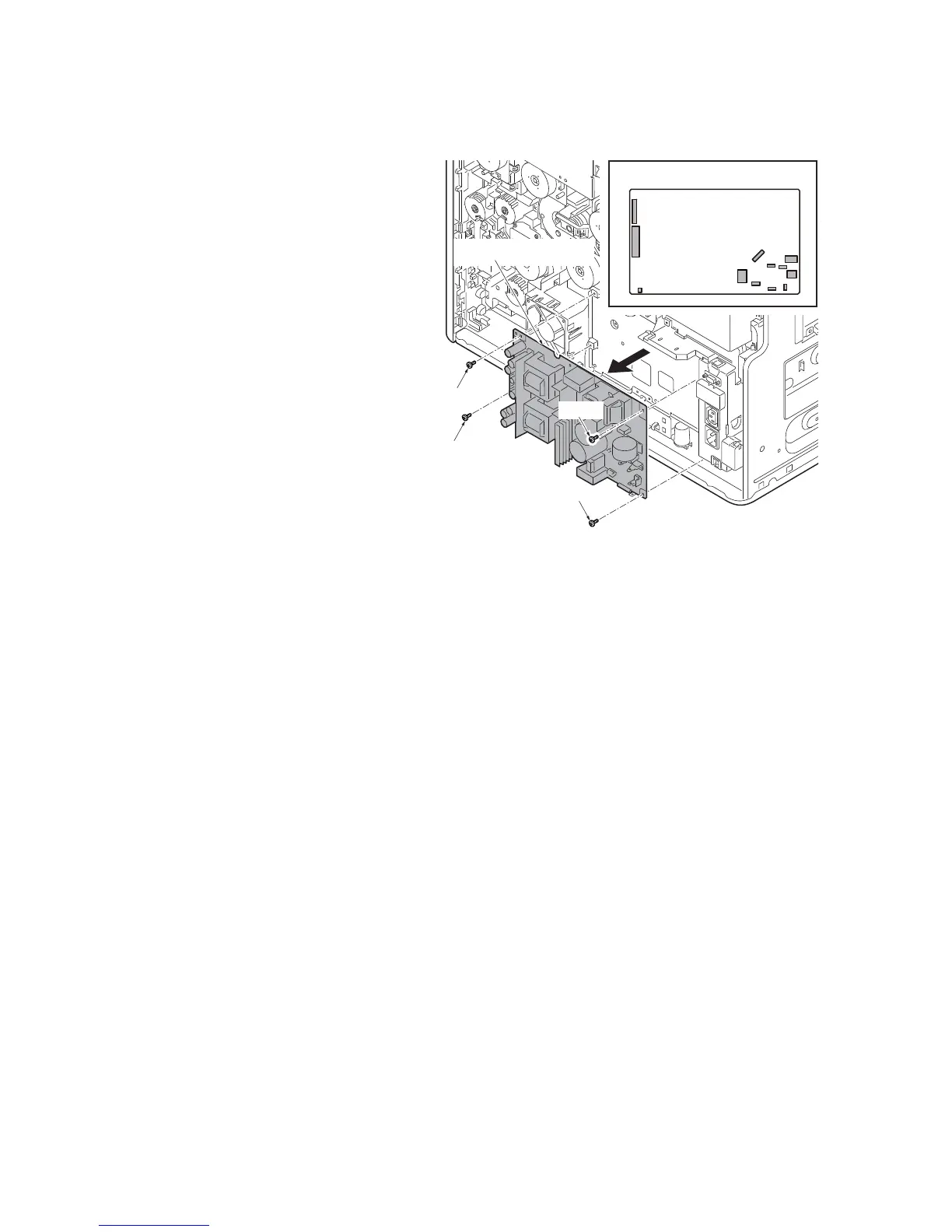

Figure 1-5-60
Screw
Power source PWB
Screw
Screw
Screw
Power source PWB connectors
