Kyocera FS-C8520MFP User Manual

2MY/2MZ
1-5-13

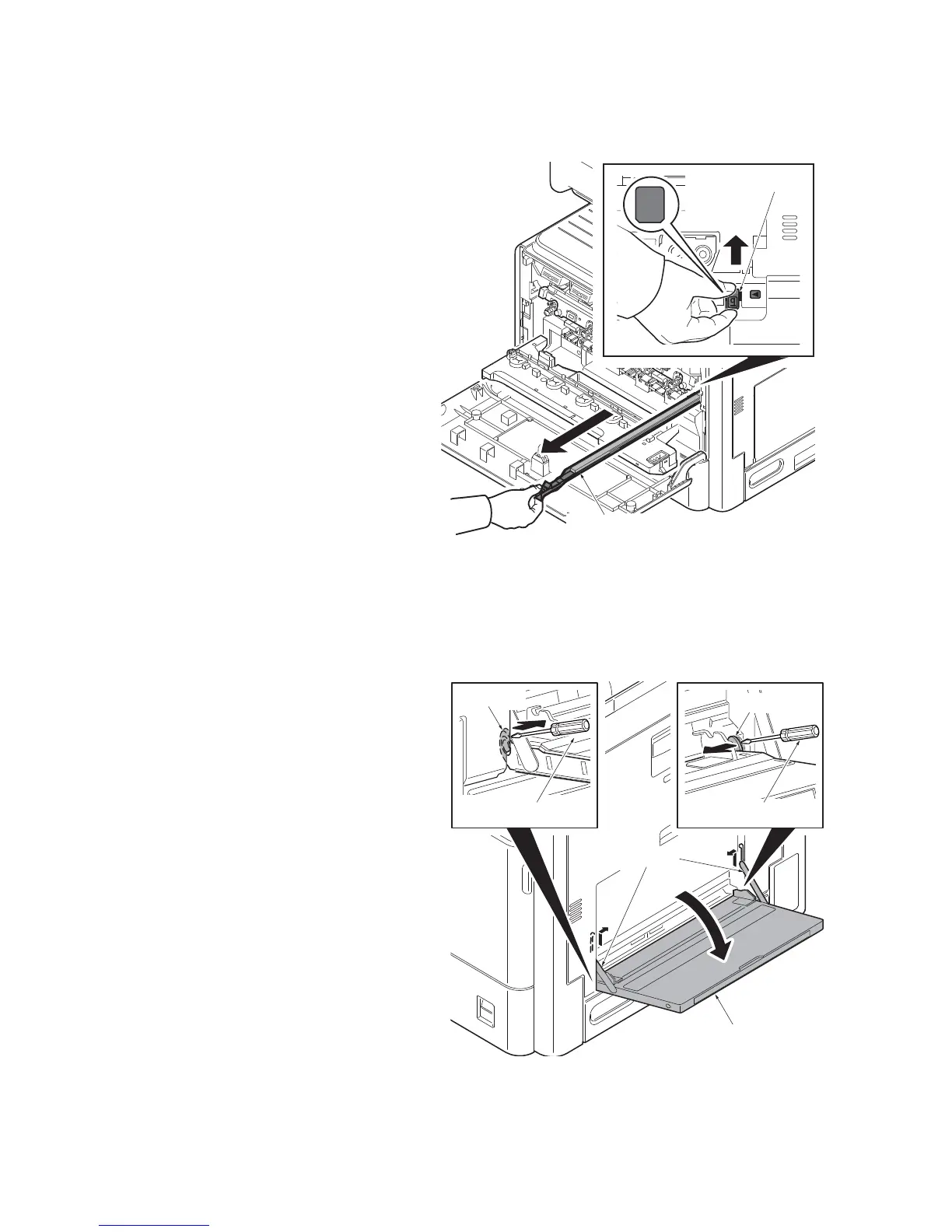

(4) Detaching and refitting the registration cleaner
Procedure
1. Open the front cover. (See page 1-5-3)
2. Open the duct cover. (See page 1-5-15)
3. Set the cleaner lever (yellow) up and
draw the registration cleaner frontward.
4. Check or replace the registration
cleaner and refit all the removed parts.
Figure 1-5-21
(5) Detaching and refitting the MP tray
Procedure
1. Open the MP tray.
2. Release two fulcrums of the MP tray by
using a flat screwdriver.
3. Pull two straps upwards to remove.
4. Remove the MP tray.
Figure 1-5-22
_
q
Registration cleaner
Cleaner lever
(yellow)
Flat screwdriver Flat screwdriver
Flucrum
MP tray
Straps
Flucrum

Kyocera FS-C8520MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	11 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A3)	10 ppm
Print speed (black, normal quality, A4/US Letter)	20 ppm
Duplex media weight	60 - 220 g/m²
Paper tray media types	Bond paper, Card stock, Coated paper, Envelopes, High resolution paper, Labels, Plain paper, Pre-Printed, Recycled paper, Rough paper, Thick paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Preprinted forms, Recycled paper, Thick paper, Transparencies
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	52 - 256 g/m²
Display	-
Product color	Grey, White
Market positioning	Business
AC input voltage	220 - 240 V
Power consumption (max)	557 W
Power consumption (ready)	121 W
Power consumption (standby)	0.9 W
Power consumption (average operating)	- W
Internal memory	1536 MB
Processor family	PowerPC
Card reader integrated	No
Maximum internal memory	2048 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	47 dB
Paper input type	Cassette, Paper tray
Total input capacity	100 sheets
Total output capacity	250 sheets
Maximum input capacity	1600 sheets
Total number of input trays	2
Maximum duty cycle	- pages per month
Page description languages	PCL 5c, PCL 6, PCL XL, PDF 1.4, PDF 1.5, PDF 1.6, PDF 1.7, PDF 1.7+, PostScript 3
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Fax compatibility	ITU-T G3
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copier resize	25 - 400 %
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	11.7 s
Time to first copy (color, normal)	13.6 s
Copy speed (black, normal quality, A3)	10 cpm
Copy speed (black, normal quality, A4)	20 cpm
Copy speed (color, normal quality, A3)	8 cpm
Scan to	E-mail, FTP, SMB, TWAIN, USB, WIA
Scan drivers	TWAIN, WIA
Maximum scan area	A3 (297 x 420) mm
Scan speed (black)	40 inch/min
Image formats supported	JPEG XR, TIF
Document formats supported	PDF, XPS
Optical scanning resolution	600 x 400 DPI
Faxing	Color faxing
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page

Weight and Dimensions

Width	590 mm
Height	740 mm
