2MY/2MZ
1-5-6

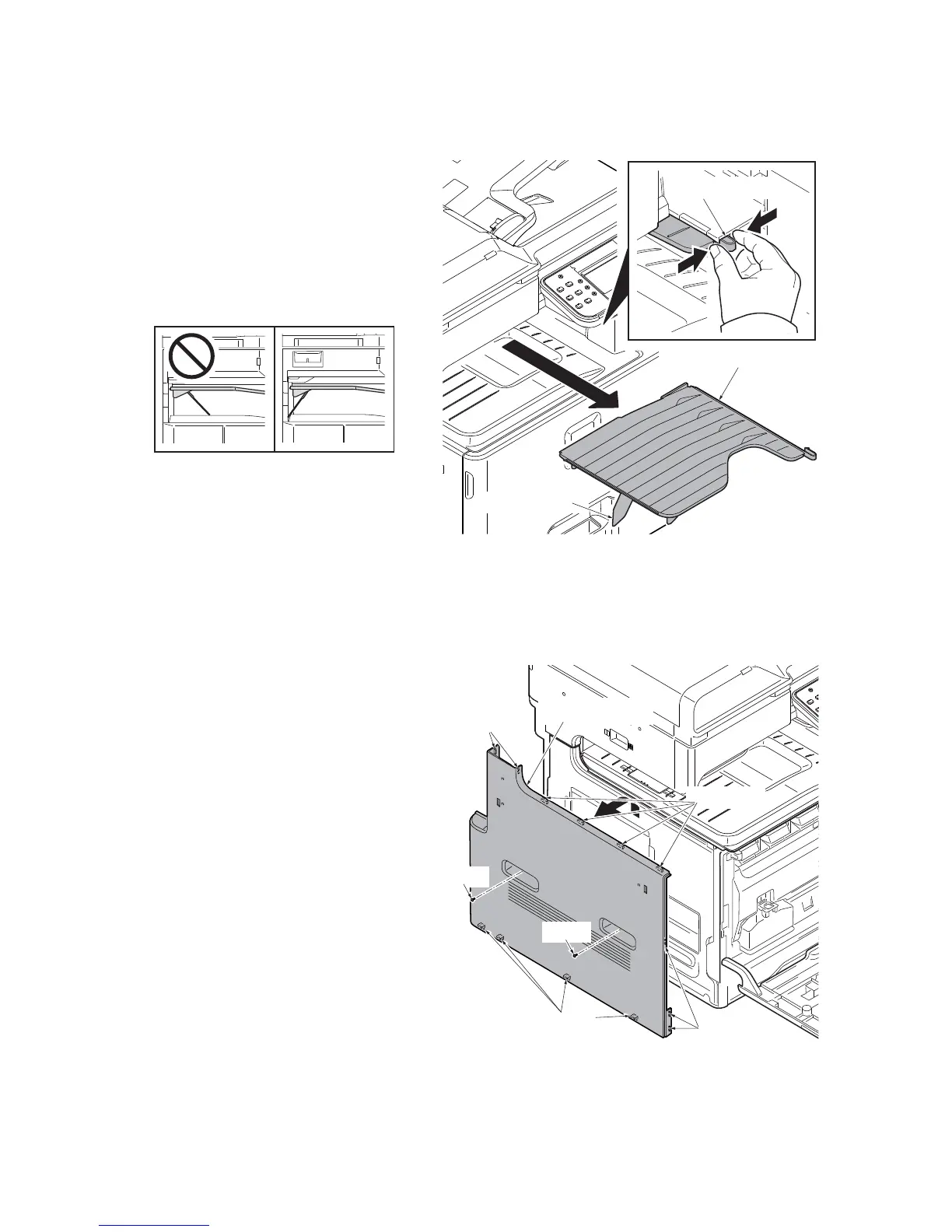

(3) Detaching and refitting the inner tray
Procedure
1. Release the lock lever and then remove
the job separator tray.
ATTENTION: When refitting the Job
separator tray, are cautious of the posi-
tion of a paper guide.
Figure 1-5-8
2. Remove the rear cover.
(See page 1-5-5)
3. Remove the cassette.
(See page 1-5-10)
4. Open the front cover.(See page 1-5-3)
5. Remove two screws.
6. Release three hooks A.
7. Pull the left lower cover upwards and
then release ten hooks B.
8. Remove the left lower cover.
Figure 1-5-9
Paper guide
Job separator tray
Lock lever
Hooks B
Screw
Hooks A
Hooks B
Left lower cover
Screw
Hooks B
To Next Page
