1-5-10 Document processor
(1) Detaching and refitting the document processor
Procedure
1. Remove the restriction parts.
2. Open the document processor on verti-
cally.

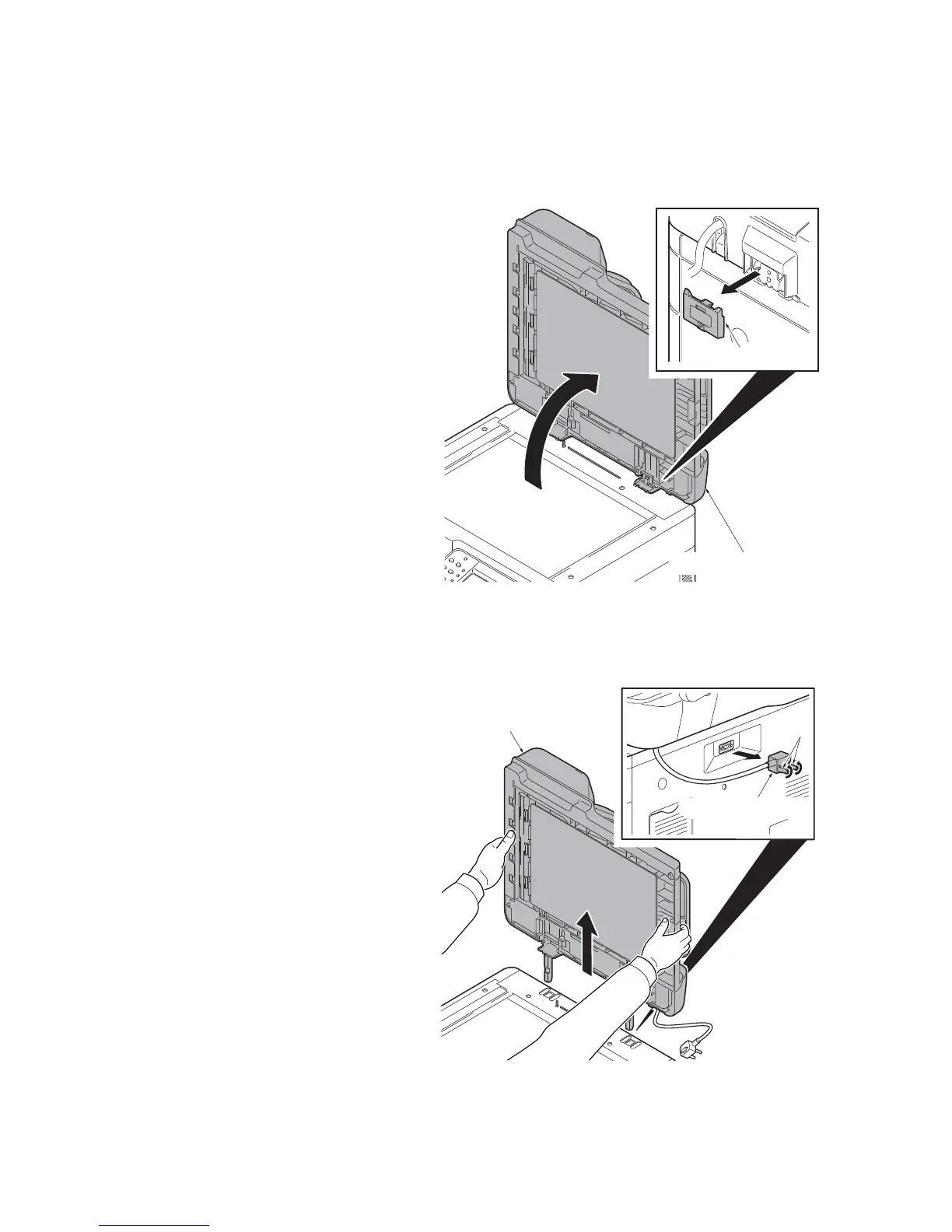

Figure 1-5-46
3. Remove two screws and then remove
the DP interface connector.
4. Pull the document processor upwards
out.
Figure 1-5-47
Document processor
Restriction parts
Document processor
DP interface
connector
Screws
