Kyocera FS-C8520MFP User Manual

2MY/2MZ
1-3-36
U070 Adjusting the DP magnification
Description
Adjusts the DP original scanning speed.
Purpose
Perform this adjustment if the magnification is incorrect in the auxiliary scanning direction when
the DP is used.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.l
Adjustment: [Y Scan Zoom]
1. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.

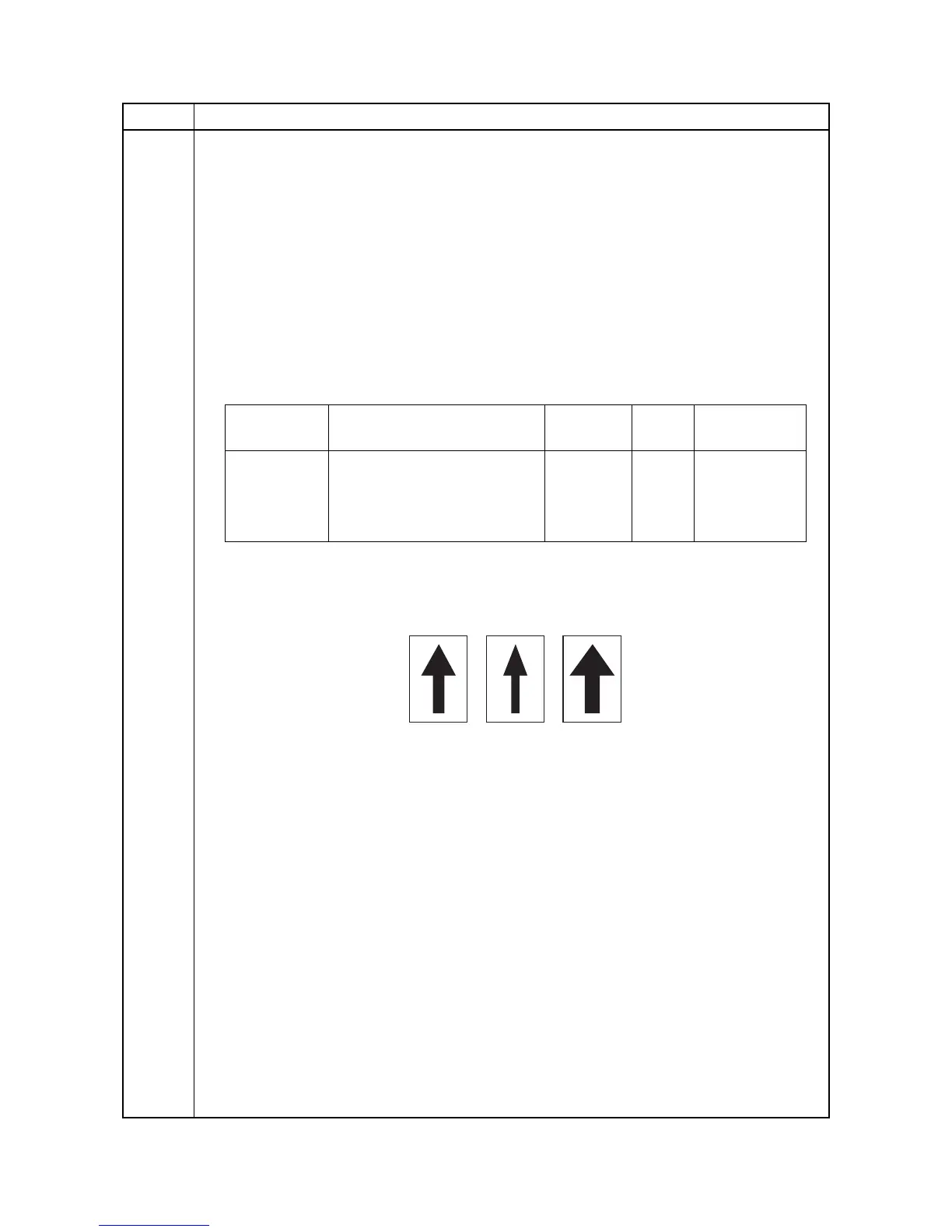

Figure 1-3-9
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Y Scan Zoom Magnification in the main scan-
ning direction
-125 to 125 0 0.02 %
X Scan Zoom Magnification in the auxiliary
scanning direction
-125 to 125 0 0.02 %
Original Copy
example 1
Copy
example 2

Kyocera FS-C8520MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	11 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A3)	10 ppm
Print speed (black, normal quality, A4/US Letter)	20 ppm
Duplex media weight	60 - 220 g/m²
Paper tray media types	Bond paper, Card stock, Coated paper, Envelopes, High resolution paper, Labels, Plain paper, Pre-Printed, Recycled paper, Rough paper, Thick paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Preprinted forms, Recycled paper, Thick paper, Transparencies
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	52 - 256 g/m²
Display	-
Product color	Grey, White
Market positioning	Business
AC input voltage	220 - 240 V
Power consumption (max)	557 W
Power consumption (ready)	121 W
Power consumption (standby)	0.9 W
Power consumption (average operating)	- W
Internal memory	1536 MB
Processor family	PowerPC
Card reader integrated	No
Maximum internal memory	2048 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	47 dB
Paper input type	Cassette, Paper tray
Total input capacity	100 sheets
Total output capacity	250 sheets
Maximum input capacity	1600 sheets
Total number of input trays	2
Maximum duty cycle	- pages per month
Page description languages	PCL 5c, PCL 6, PCL XL, PDF 1.4, PDF 1.5, PDF 1.6, PDF 1.7, PDF 1.7+, PostScript 3
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Fax compatibility	ITU-T G3
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copier resize	25 - 400 %
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	11.7 s
Time to first copy (color, normal)	13.6 s
Copy speed (black, normal quality, A3)	10 cpm
Copy speed (black, normal quality, A4)	20 cpm
Copy speed (color, normal quality, A3)	8 cpm
Scan to	E-mail, FTP, SMB, TWAIN, USB, WIA
Scan drivers	TWAIN, WIA
Maximum scan area	A3 (297 x 420) mm
Scan speed (black)	40 inch/min
Image formats supported	JPEG XR, TIF
Document formats supported	PDF, XPS
Optical scanning resolution	600 x 400 DPI
Faxing	Color faxing
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page

Weight and Dimensions

Width	590 mm
Height	740 mm
