Kyocera FS-C8520MFP - Detaching and Refitting Image Scanner Unit

2MY/2MZ
1-5-21
(2) Detaching and refitting the image scanner unit
Procedure
1. Remove the DP or original cover.
(See page 1-5-26)
2. Remove two screws and then remove
the scanner right cover.
ATTENTION: To reinstall the scanner
right cover, position it close to the
platen.

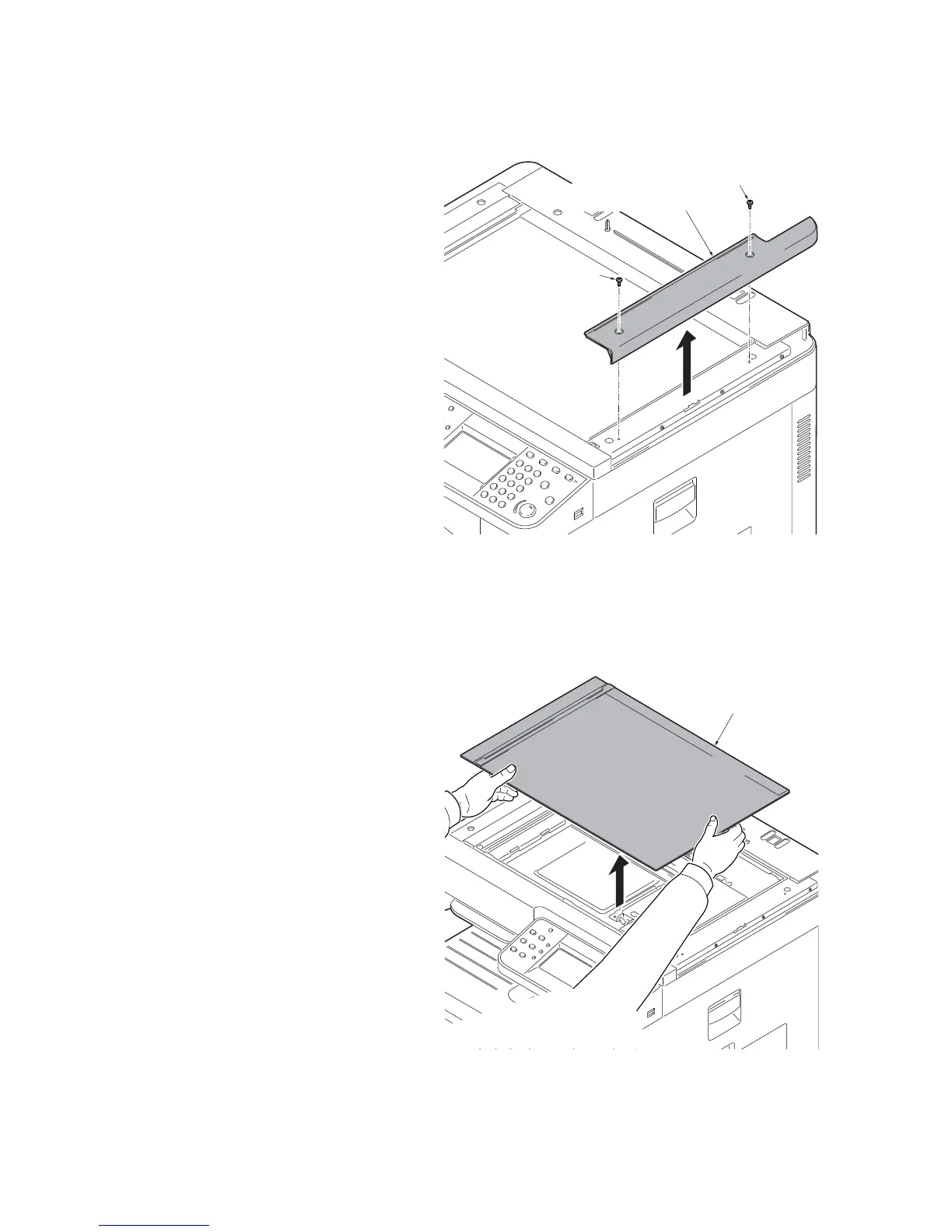

Figure 1-5-37
3. Remove the platen.
Figure 1-5-38
Screw
Screw
Scanner right cover
Platen
