2MY/2MZ

1-5-22

4. Remove four screws and then remove

the scanner cover.

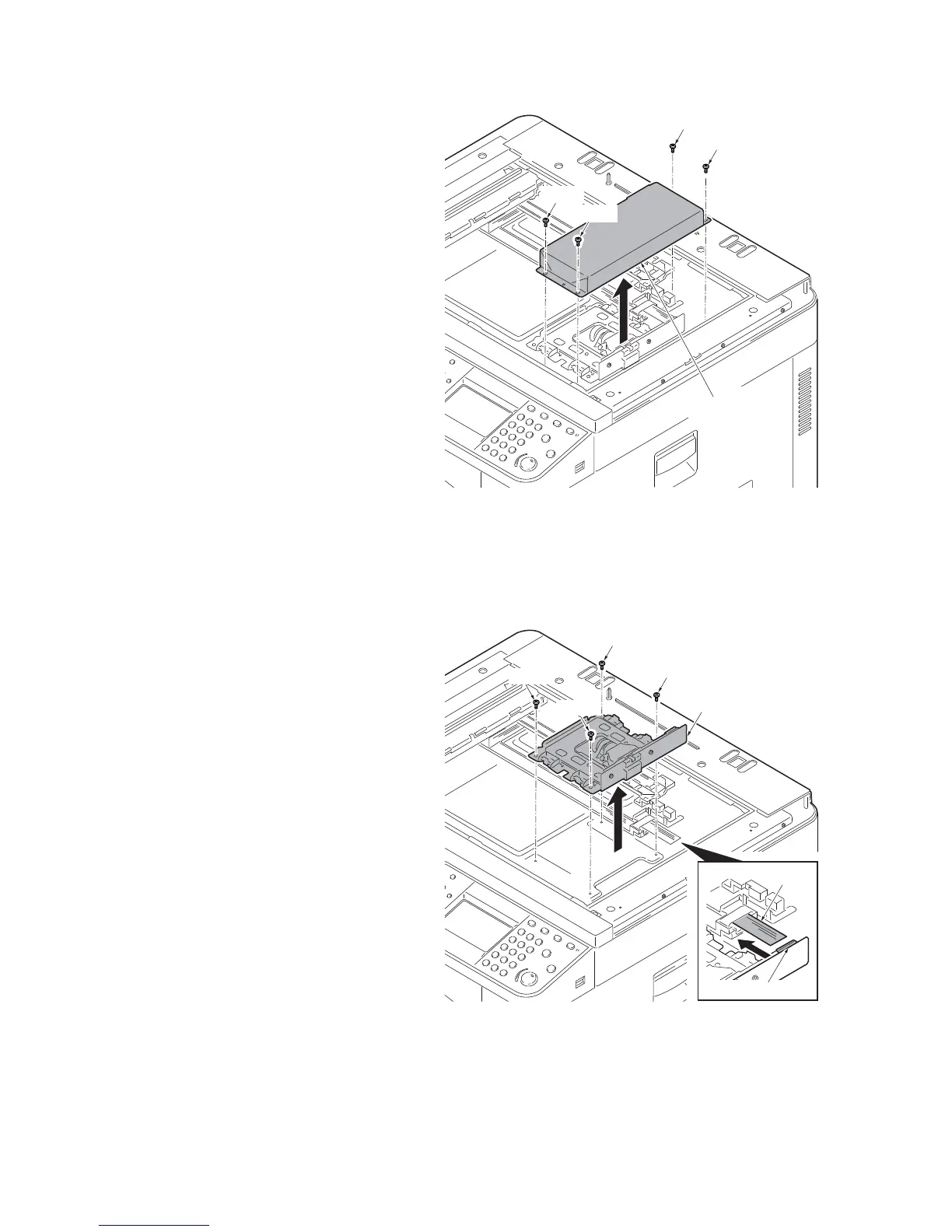

Figure 1-5-39

5. Remove the FFC from the connector.

6. Remove four screws and then remove

the image scanner unit.

Figure 1-5-40

Screw

Screw

Screw

Screw

Scanner cover

Screw

Screw

Screw

Screw

Image scanner unit

FFC

Connector
