2MY/2MZ
1-5-37
1-5-12 Others
(1) Detaching and refitting the language sheet
Procedure
1. Remove the upper cover by using a
pen.
2. Remove the LCD cover.
3. Remove two operation panel covers
4. Remove two language sheets.
5. Check or replace the language sheet
and refit all the removed parts.

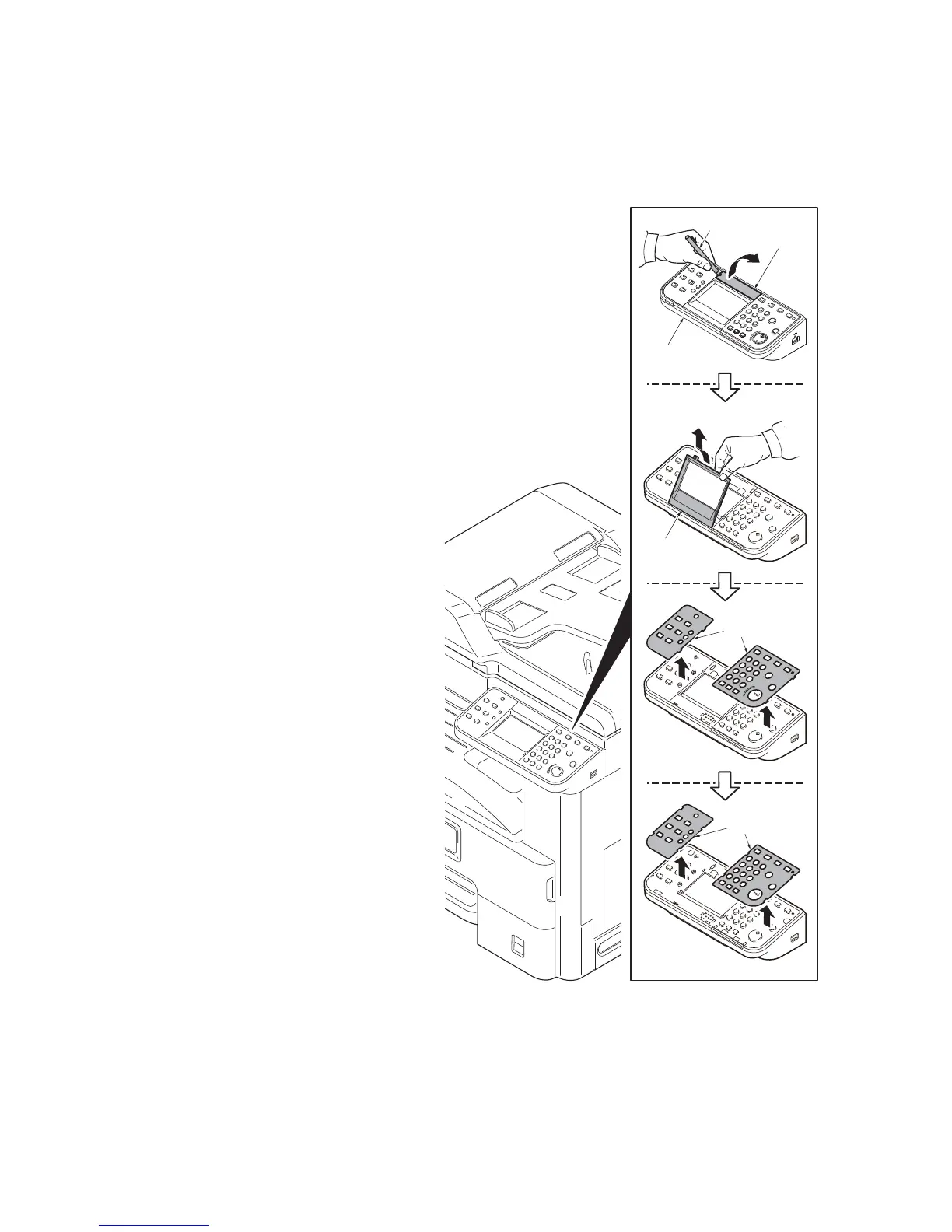

Figure 1-5-66
LCD cover
Upper cover
Operation
panel covers
Language
sheets
Operation
panel unit
Pen
