Maintenance
OPERATION GUIDE 8-5
8

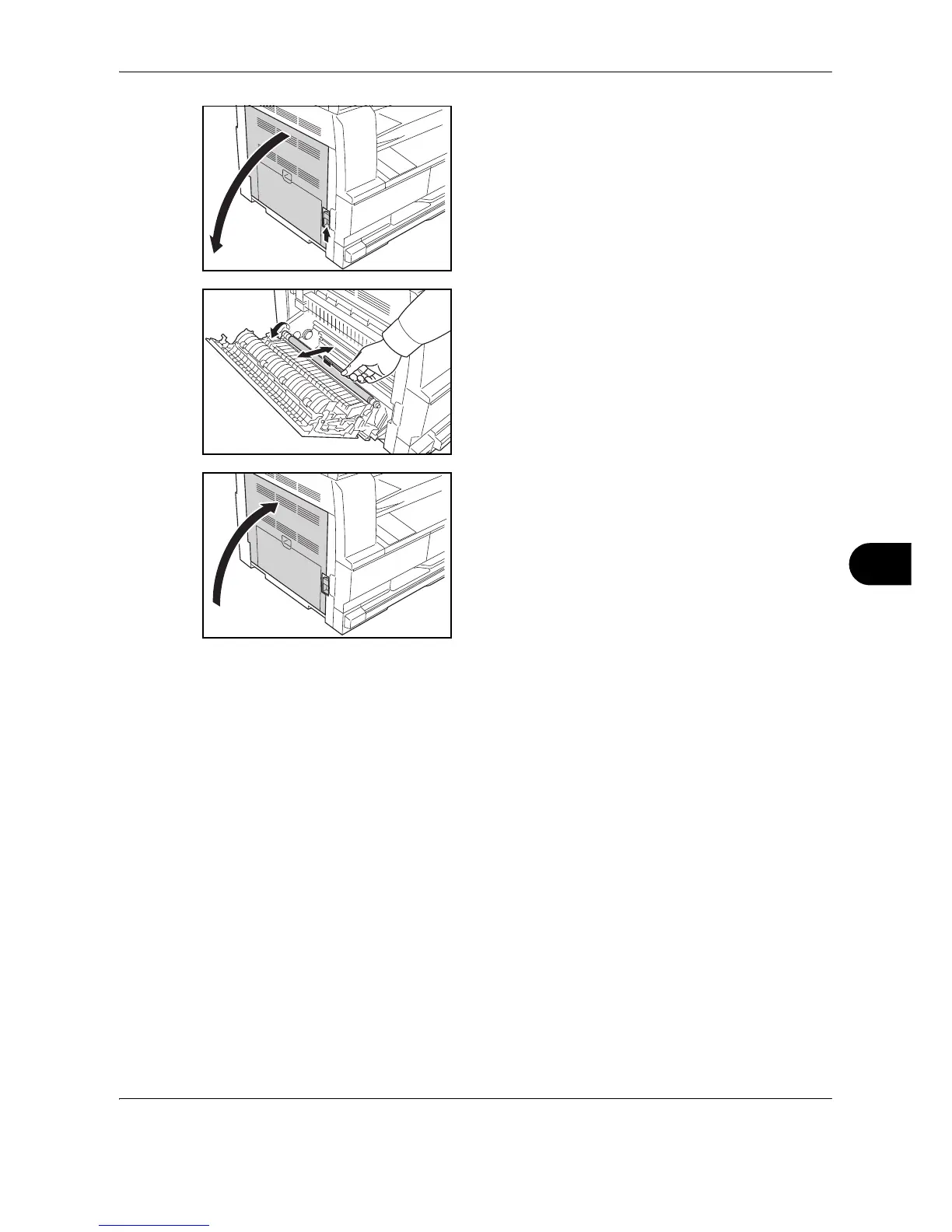

3 Pull up and open left cover.
4 As shown in the figure, clean dirt from the transfer
roller by moving the brush from side to side along
the roller while rotating the roller by turning the gear
at the left end of the roller.
5 Put away the cleaning brush, press the specified
position of the front cover and left cover to close.
To Next Page
