Maintenance
8-4 OPERATION GUIDE

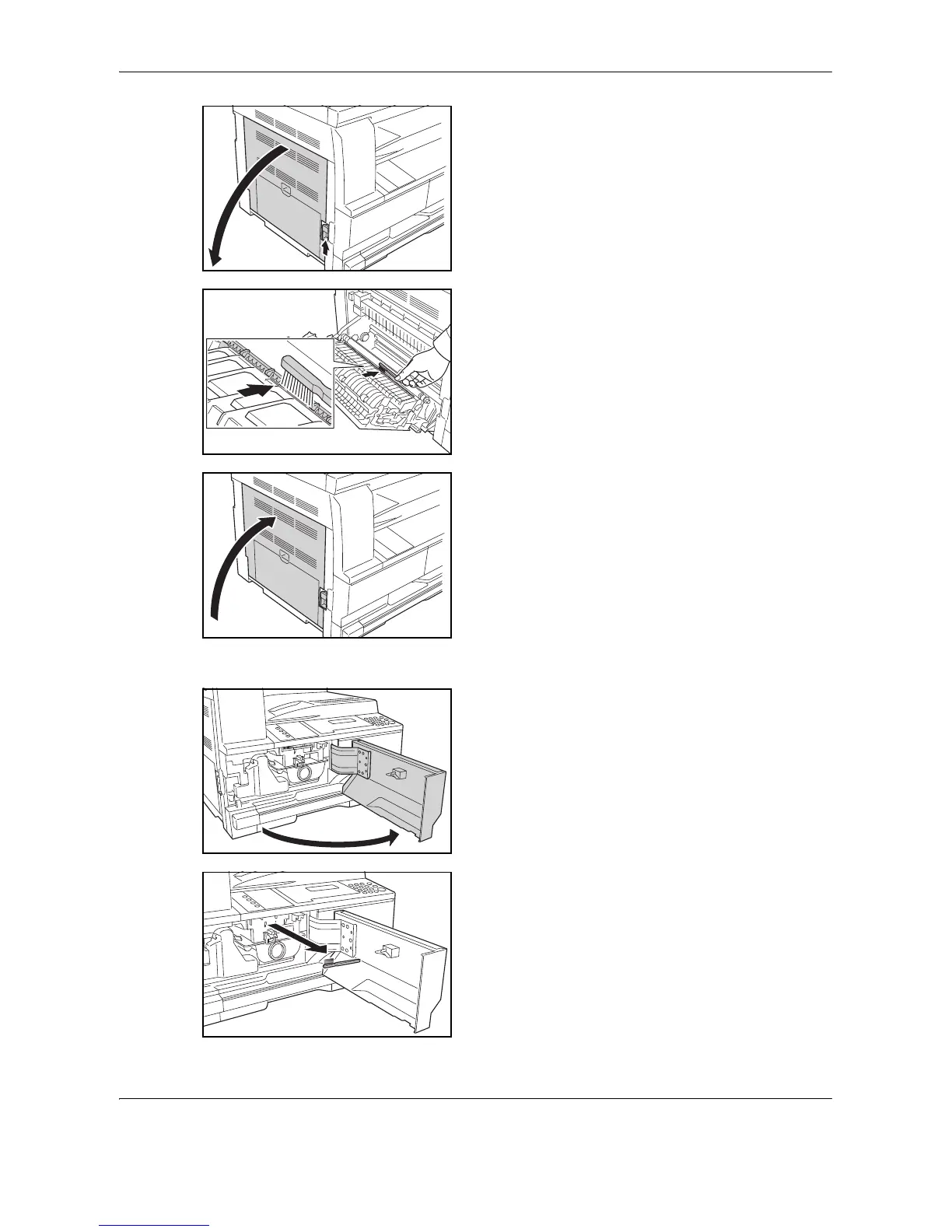

3 Pull up and open left cover.
4 As shown in the figure, clean dirt from the separator
by moving the brush from side to side along the
separator.
5 Put away the cleaning brush, press the specified
position of the front cover and left cover to close.
Transfer Roller
1 Open the front cover.
2 Remove the cleaning brush (blue colored).
To Next Page
