The hydraulic systems (forward/reverse) marked on the front of the drawbar
are depending on how the connections are made to the tractor.
Hydraulic system (I):
The hydraulic system (I) is controlled by the E‑Link manual controller to
operate the following functions:
a. the rotation of the wrapping table.
b. the up/down movements of the wrapping table,
c. the movements of the loading arm,
d. The movements of the film cutter.
The hydraulic hoses of the system are connected:
• one 3/8" hydraulic hose is connected to a single-acting valve of the
tractor.
• one 1/2"hydraulic hose is connected to a pressureless connection of the
tractor.
I. Hydraulic system

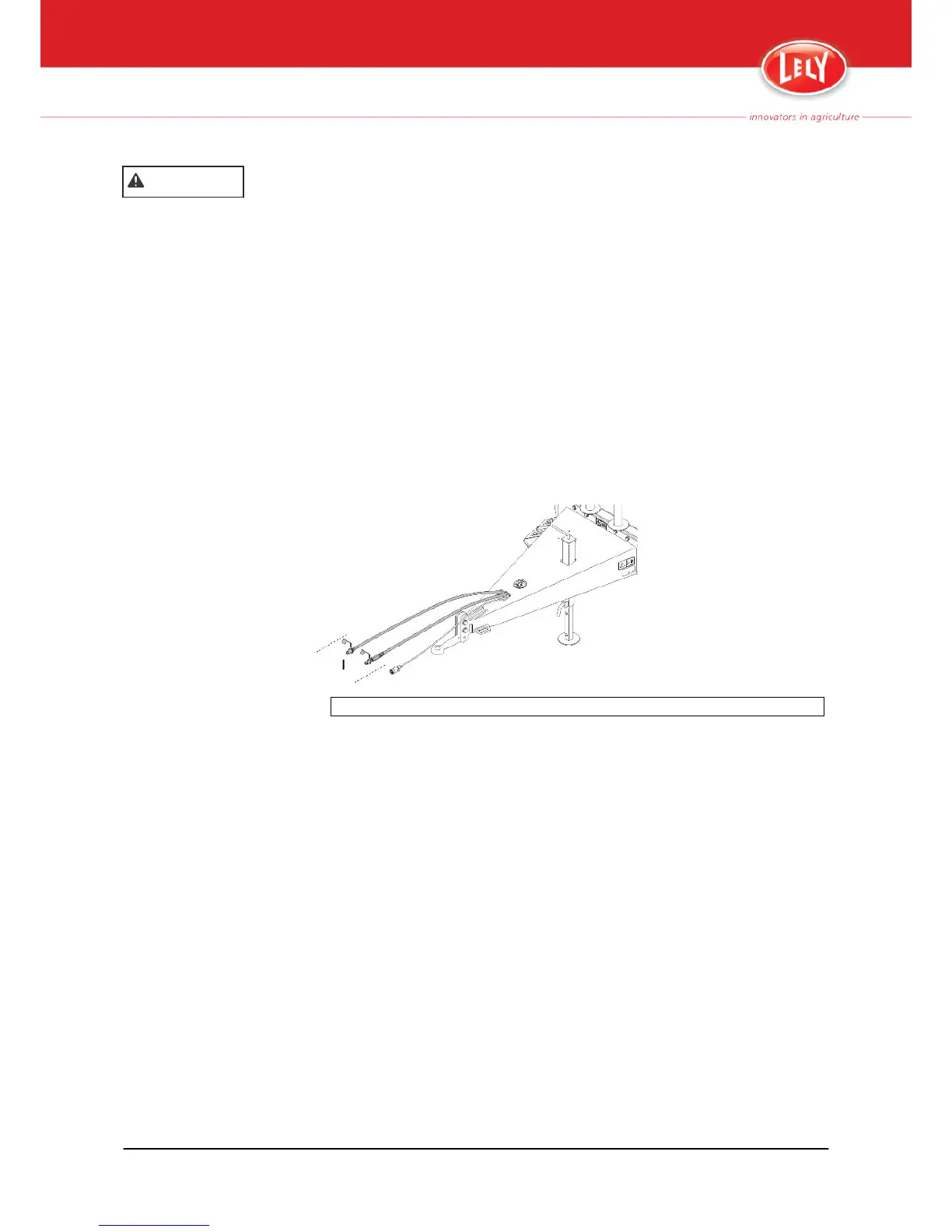

Figure 12. Hydraulic system marks and systems
CAUTION
3-2 Operation
W-H003.1403EN
