Diagnostics & error management
Error messages of the operating system
204 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
9.7 Error messages of the operating system
This chapter describes all error messages of the controller operating system and possible
causes & remedies.
 Tip!
Each error message is also saved in the logbook in chronological order. Logbook
( 197)
9.7.1 Structure of the error number (bit coding)
If an error occurs in the controller, the internal fault memory saves a 32-bit value which
contains the following information:

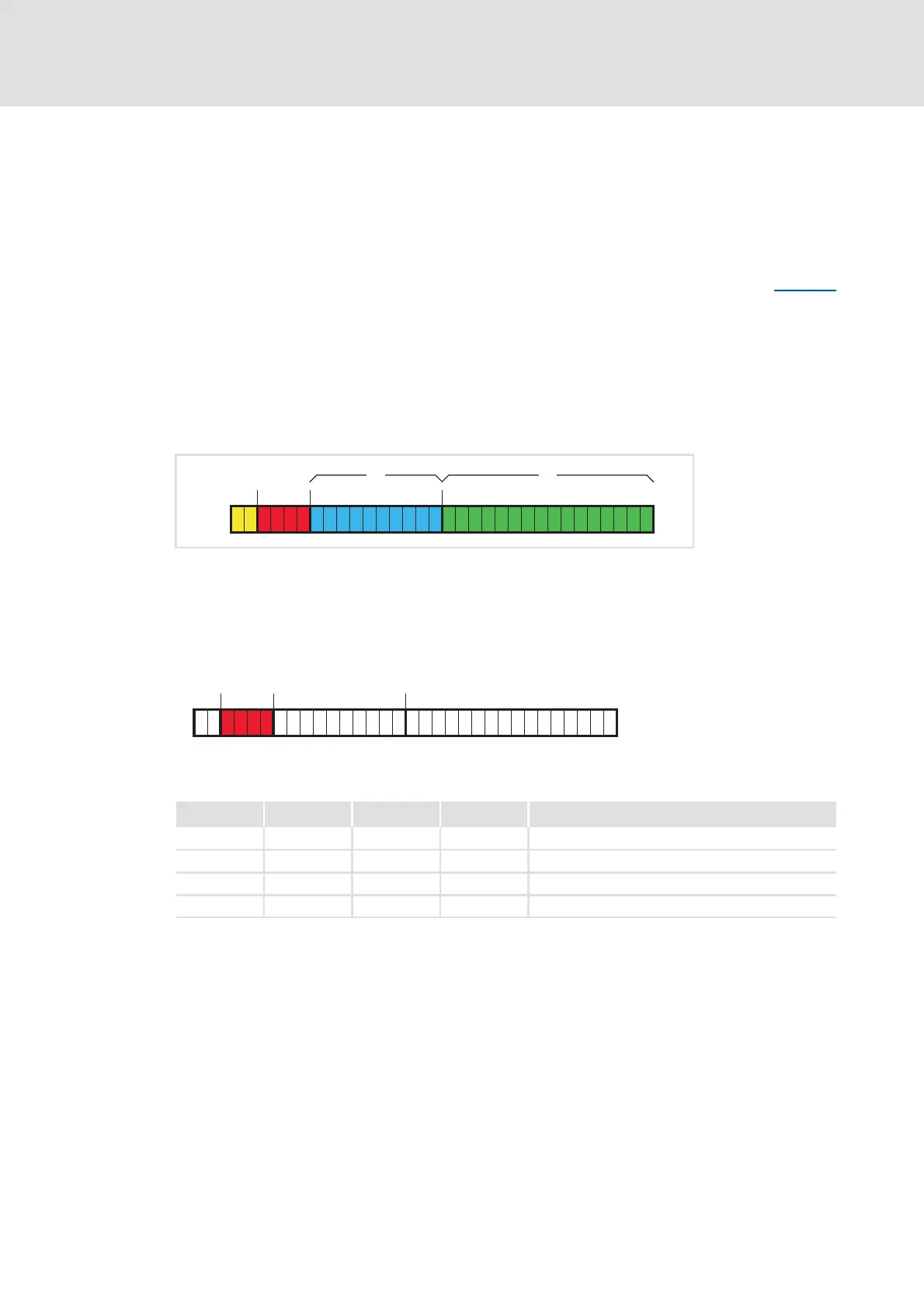

[9-1] Structure of the error number
For the sake of legibiltiy, the error number in the logbook is displayed with the following
syntax: [Error type].[Error subject area no.].[Error ID]
9.7.1.1 Error type
The error type gives information about the behaviour/response of the controller to the
error. The error type for some device errors can also be parameterised.
 Reserved
 Error type
 Error subject area
 Error ID
210 3
Bit
162526
31
015
29
30
Bit 29 Bit 28 Bit 27 Bit 26 Meaning
00000: No reaction
00011: Fault
00102: Trouble
01004: WarningLocked
Bit
162526
31
015
29
30
