Diagnostics & error management
Error messages of the operating system
206 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
9.7.1.4 Example for bit coding of the error number
C00168
displays an internal error number: "75169803".

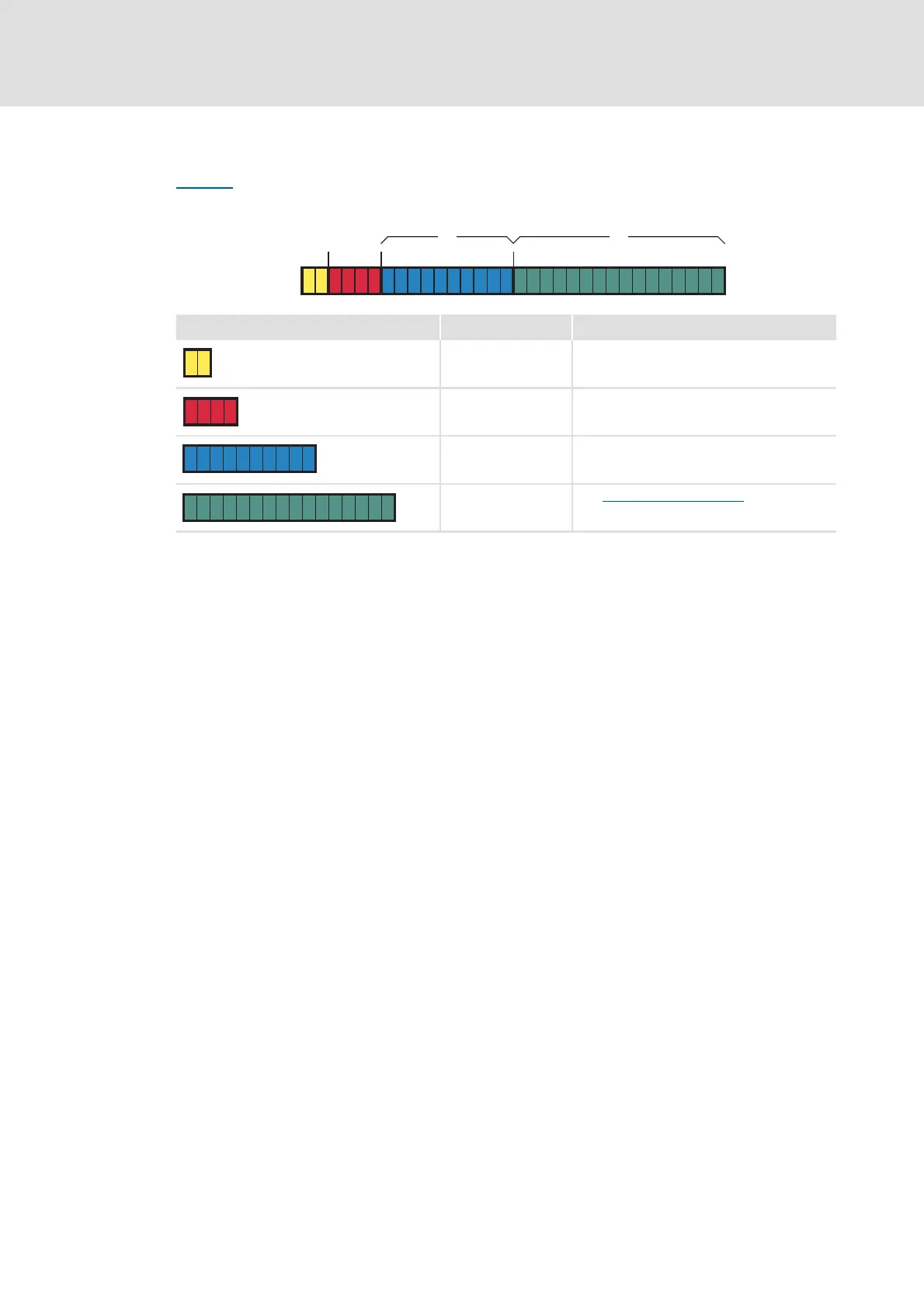

 This decimal value corresponds to the following bit sequence:
 Thus, error number "75169803" means:
An overcurrent has been detected in the "Motor management/encoder" subject area. A
pulse inhibit is set as error response. The error message must be acknowledged after
the error has been eliminated.
Assignment Information Meaning in the example
Reserved -
Error type 1: Fault (pulse inhibit)
Error subject area 123: Motor management / encoder
Error ID 13: "LU: DC bus undervoltage
"
210 3
Bit
162526
31
015
29
30
0000 0 100011110 1 10000 000000110100
00
00 0 1
00011110 1 1
0000 000000101100

Lenze 8400 motec Specifications

General

Input Voltage	3-phase 380V to 480V AC
Control Mode	Vector control
Communication	CANopen, PROFIBUS, Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, short-circuit, overtemperature
Relative Humidity	≤ 95 %, no condensation
Altitude	Up to 1000m above sea level
Storage Temperature	-20°C to 65°C
