LS_ParFix
354 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
12.17 LS_ParFix

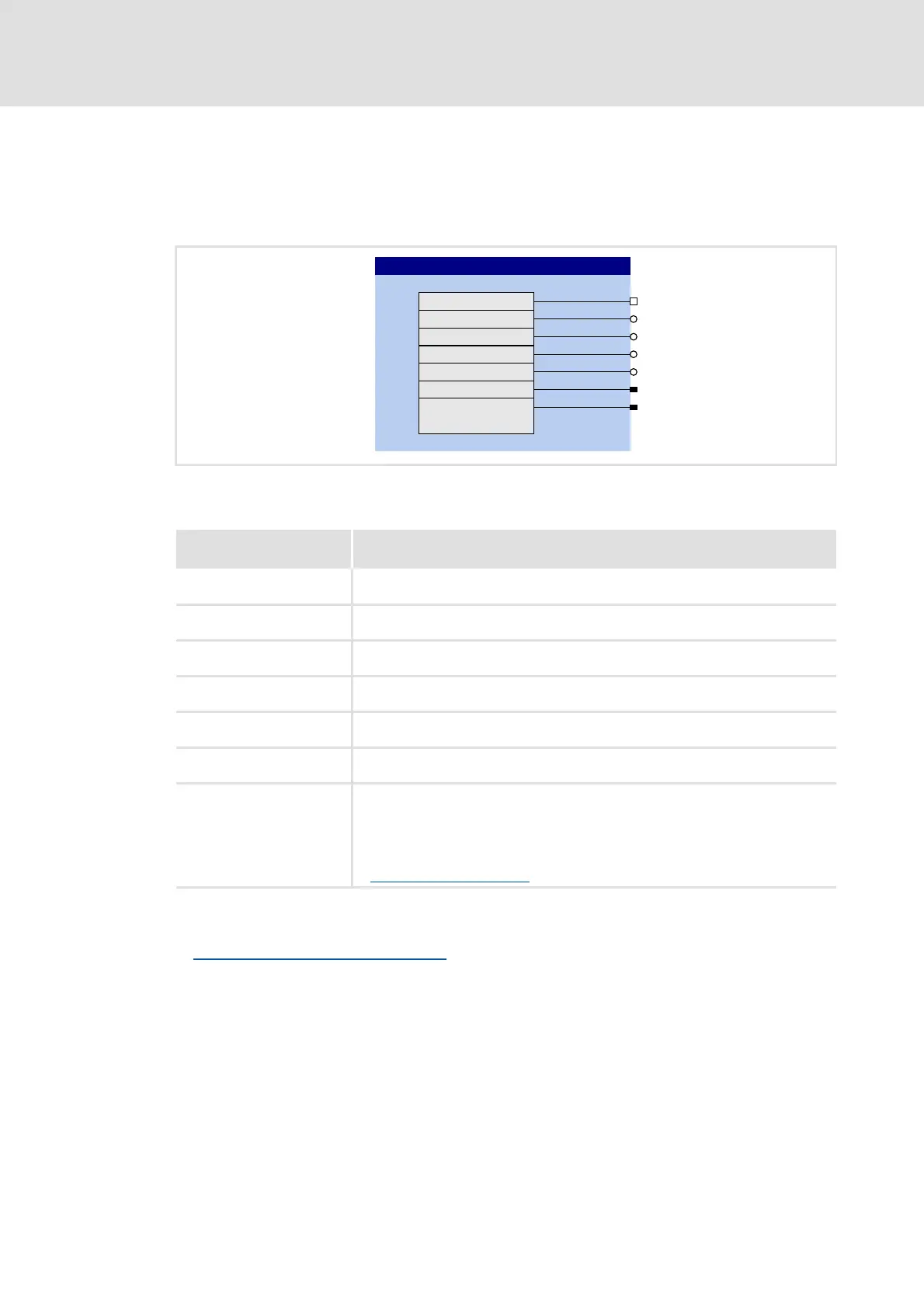

This system block outputs various fixed values (constants) to be used in the
interconnection. The constants can be assigned to other inputs via configuration
parameters.
Outputs
Related topics:
User-defined terminal assignment
( 139)
Identifier
Data type
Value/meaning
C_bTrue
BOOL
1 ≡ TRUE
C_nPos100_a
INT
16384 ≡ + 100 %
C_nNeg100_a
INT
-16384 ≡ - 100 %
C_nPos199_9_a
INT
32767 ≡ + 199.9 %
C_nNeg199_9_a
INT
-32767 ≡ - 199.9 %
C_w65535
WORD
65535 ≡ 0xFFFF
wDriveCtrl
WORD
9 ≡ 0x0009
• Bit 0, SwitchOn = TRUE
• Bit 3, EnableOperation = TRUE
• All others: FALSE
See also:
wDriveControl control word
( 160)
&BE7UXH
&BQ3RVBD
&BQ1HJBD
&BZ'ULYH&WUO
&BQ3RVBBD
&BQ1HJBBD
&BZ




[))))
758(
6ZLWFK2Q
(QDEOH2SHUDWLRQ
 758(
 758(
[
/6B3DU)L[

Lenze 8400 motec Specifications

General

Input Voltage	3-phase 380V to 480V AC
Control Mode	Vector control
Communication	CANopen, PROFIBUS, Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, short-circuit, overtemperature
Relative Humidity	≤ 95 %, no condensation
Altitude	Up to 1000m above sea level
Storage Temperature	-20°C to 65°C
