8400 motec | Software Manual
Communication
Control mode "Network (MCI/CAN)"
222 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
10.3 Control mode "Network (MCI/CAN)"
40: Network (MCI/CAN)" can be selected as a control mode in C00007
in order to quickly
and easily set-up controller control via fieldbus communication.
In this control mode, the process data (PDOs) are transferred via the MCI or CAN interface
depending on the available communication unit.
 Max. 8 process data words per direction are exchanged.
 The process data are accessed via the LP_Network_In and LP_Network_Out port
blocks. These port blocks are also called process data channels.

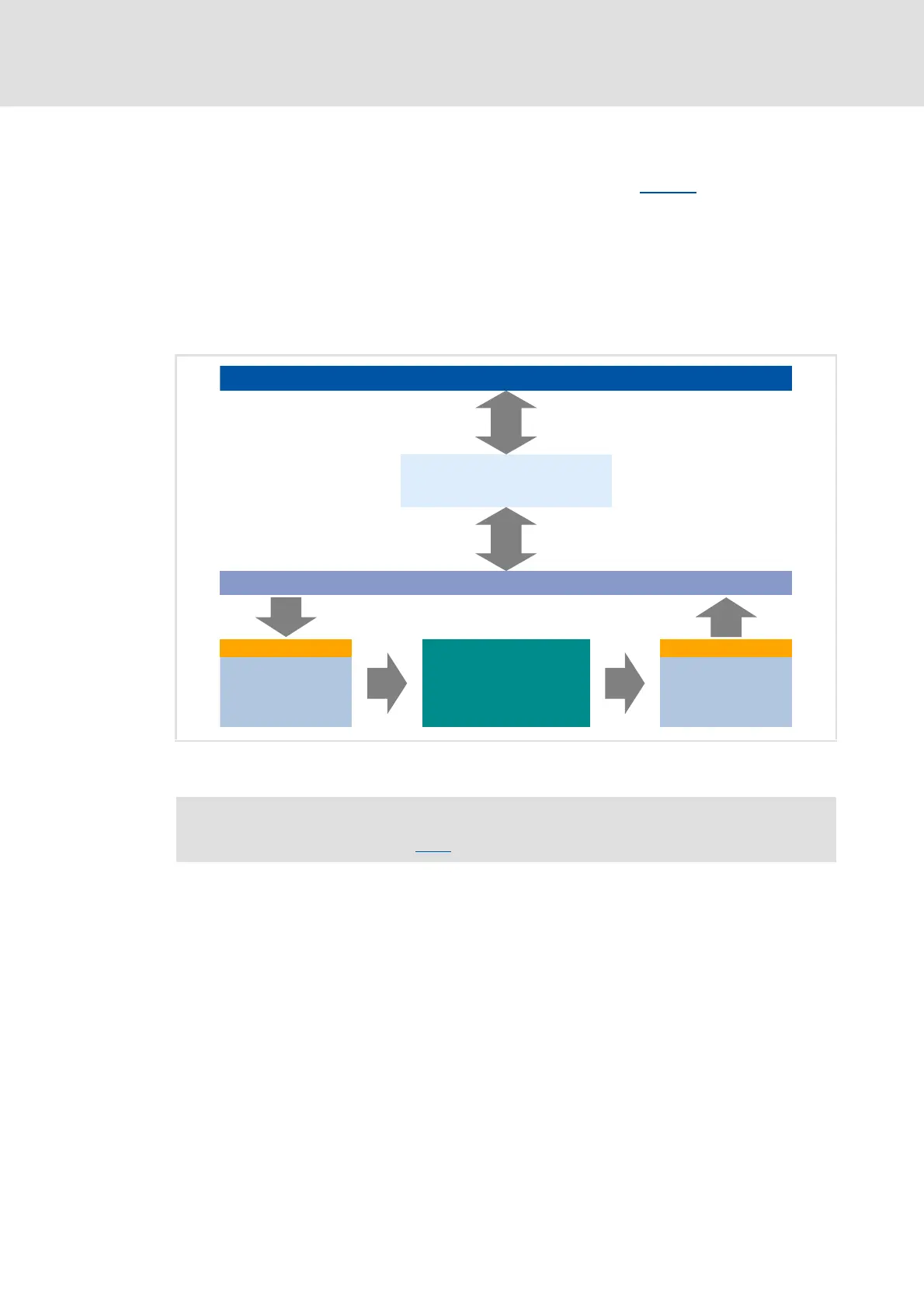

[10-1] External and internal data transfer between bus system, controller and application
/3B0FL,Q /3B0FL2XW
:RUG

:RUG
:RUG

:RUG
)LHOGEXV

$SSOLFDWLRQ
&RPPXQLFDWLRQPRGXOH
0&,LQWHUIDFH
 Preconfigured wiring of the internal interfaces in control mode "Network (MCI/
CAN)" is shown in figure [7-2]
. ( 166)

Lenze 8400 motec Specifications

General

Input Voltage	3-phase 380V to 480V AC
Control Mode	Vector control
Communication	CANopen, PROFIBUS, Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, short-circuit, overtemperature
Relative Humidity	≤ 95 %, no condensation
Altitude	Up to 1000m above sea level
Storage Temperature	-20°C to 65°C
