Lenze 8400 motec User Manual

8400 motec | Software Manual
Drive application
Parameterisation dialog
148 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
7.1 Parameterisation dialog

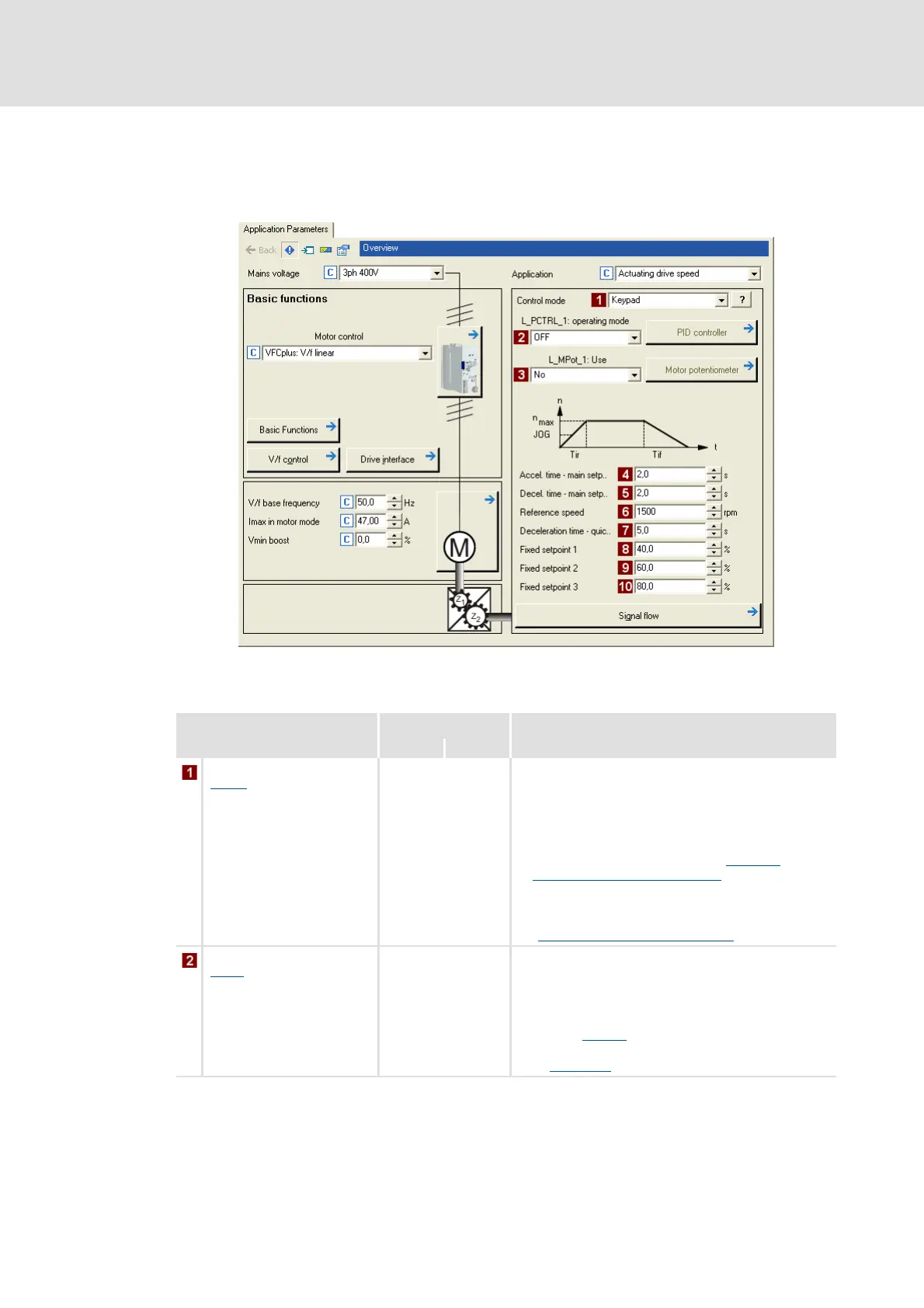

Go to the Application parameter tab to change the most important settings for the
application in the top dialog level Overview :
Short overview of the relevant parameters:
Parameter Lenze setting Info
Value Unit
Control mode
(C00007)
10: Terminals 0 Various control modes can be selected for the
application. The selection of the control mode
determines the way the application is controlled, e.g. via
terminals or via a fieldbus.
• The preconfigured assignment of the input/output
terminals and ports in the respective control mode is
described in the chapter entitled "Terminal
assignment of the control modes". ( 167)
• Detailed information on the individual configuration
of the input/output terminals can be found in the
description of the I/O terminals in the subchapter
"User-defined terminal assignment
". ( 139)
L_PCTRL_1: Operating mode
(C00242)
0: Off A process controller (PID controller) is connected
downstream of the setpoint generator.
• In the Lenze setting, the process controller is
deactivated.
• The activation is executed by selecting the operating
mode in C00242
.
• For a detailed functional description see
FB L_PCTRL_1
. ( 325)

Lenze 8400 motec Specifications

General

Input Voltage	3-phase 380V to 480V AC
Control Mode	Vector control
Communication	CANopen, PROFIBUS, Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, short-circuit, overtemperature
Relative Humidity	≤ 95 %, no condensation
Altitude	Up to 1000m above sea level
Storage Temperature	-20°C to 65°C
