LS_DisFree
348 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
12.13 LS_DisFree

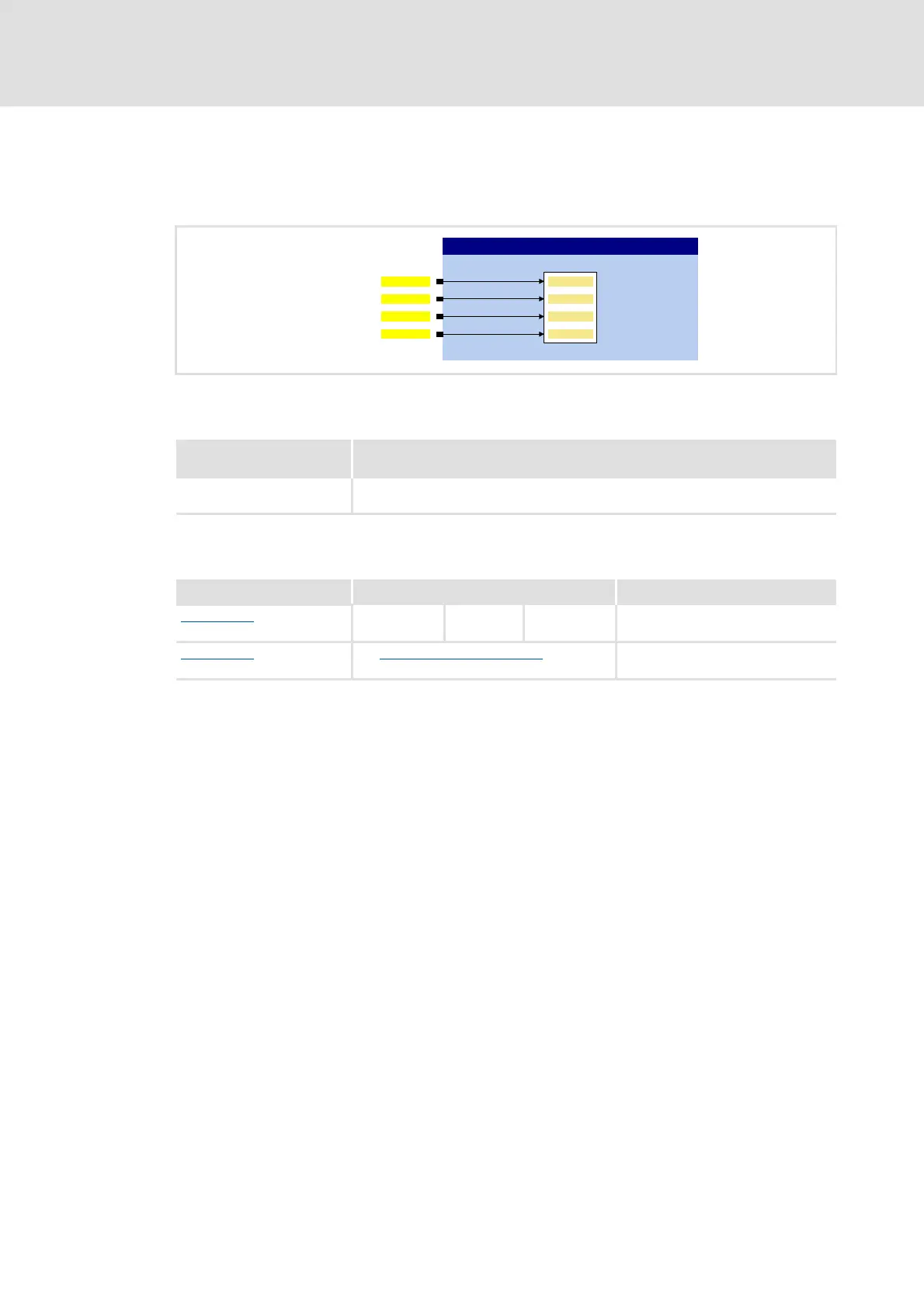

This system block displays any four 16-bit signals of the application on display codes. The
signals to be displayed are selected via the given configuration parameters.
Inputs
Parameter
Identifier
Data type
Information/possible settings
wDis1 ... wDis4
WORD
Inputs for any 16-bit signals of the application
Parameter Possible settings Info
C00481/1...4
0x0000 0xFFFF Display of the 16-bit signals at the
wDis1 ... wDis4 inputs
C00620/5...8
See selection list - analog signals Configuration parameters for the
inputs wDis1 ... wDis4
Z'LV
Z'LV
Z'LV
Z'LV
&
&
&
&
/6B'LV)UHH
&
&
&RQILJXUDWLRQSDUDPHWHUV
&
&
