Device control (DCTRL)
32 L Firmware ≤ 02.00 - DMS 2.1 EN - 03/2011
 How to get to the parameterisation dialog of the device control:
1. »Engineer« Go to the Project view and select the 8400 motec controller.
2. Go to Workspace and change to the Application parameters tab.
3. Go to the Overview dialog level and click the Drive interface button.

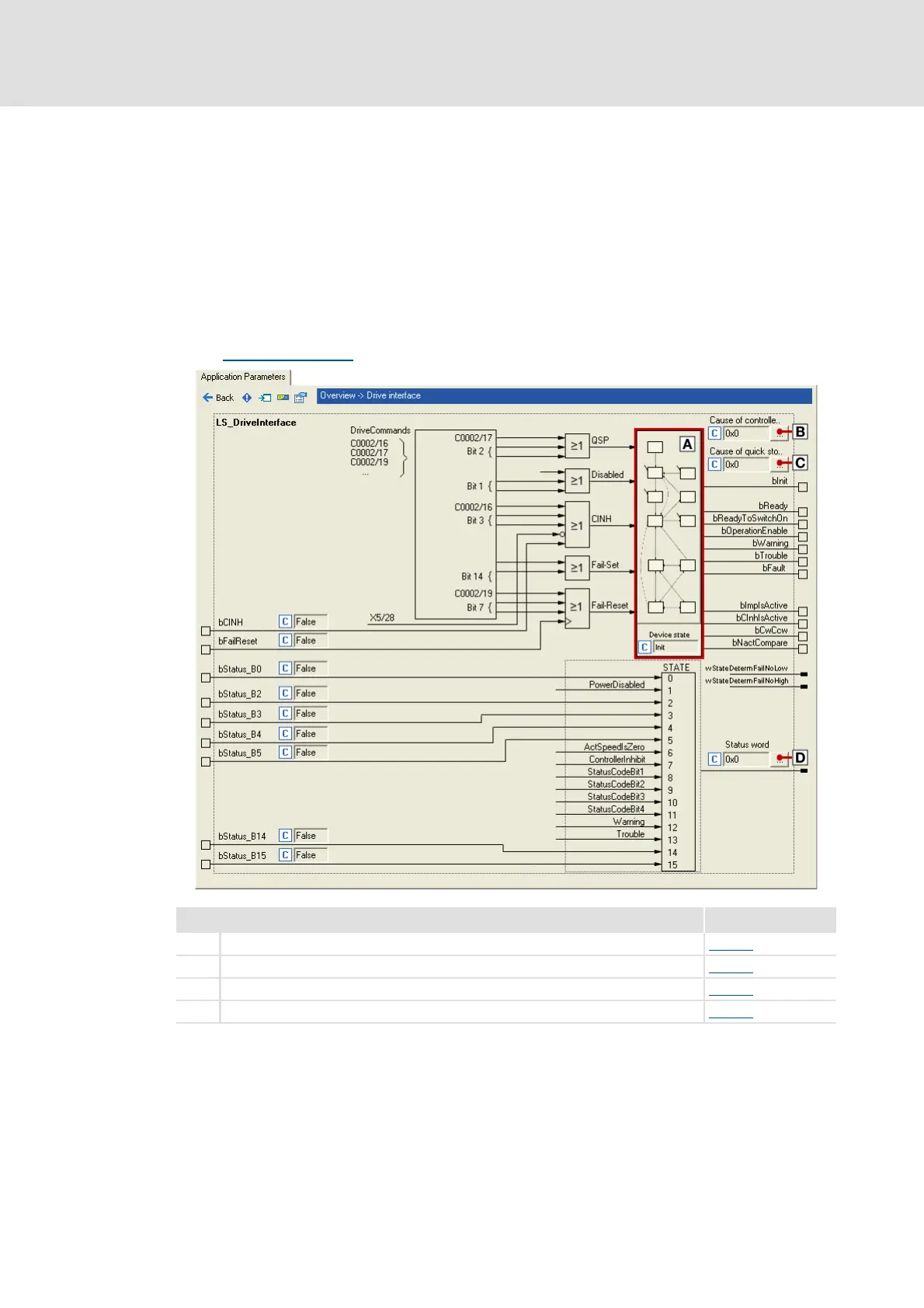

Parameterisation dialog in the »Engineer«
The parameterisation dialog shows the input / output signals and the internal signal flow
of the LS_DriveInterface
system block which displays the device control in the application:
Range / Meaning Display parameter
 Display of the internal state machine and the current device state C00137
 Display of all active sources of a controller inhibit C00158
 Display of all active sources of a quick stop C00159
 Display of the status word of the device control C00150

Lenze 8400 motec Specifications

General

Input Voltage	3-phase 380V to 480V AC
Control Mode	Vector control
Communication	CANopen, PROFIBUS, Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, short-circuit, overtemperature
Relative Humidity	≤ 95 %, no condensation
Altitude	Up to 1000m above sea level
Storage Temperature	-20°C to 65°C
