104 Indoor Unit

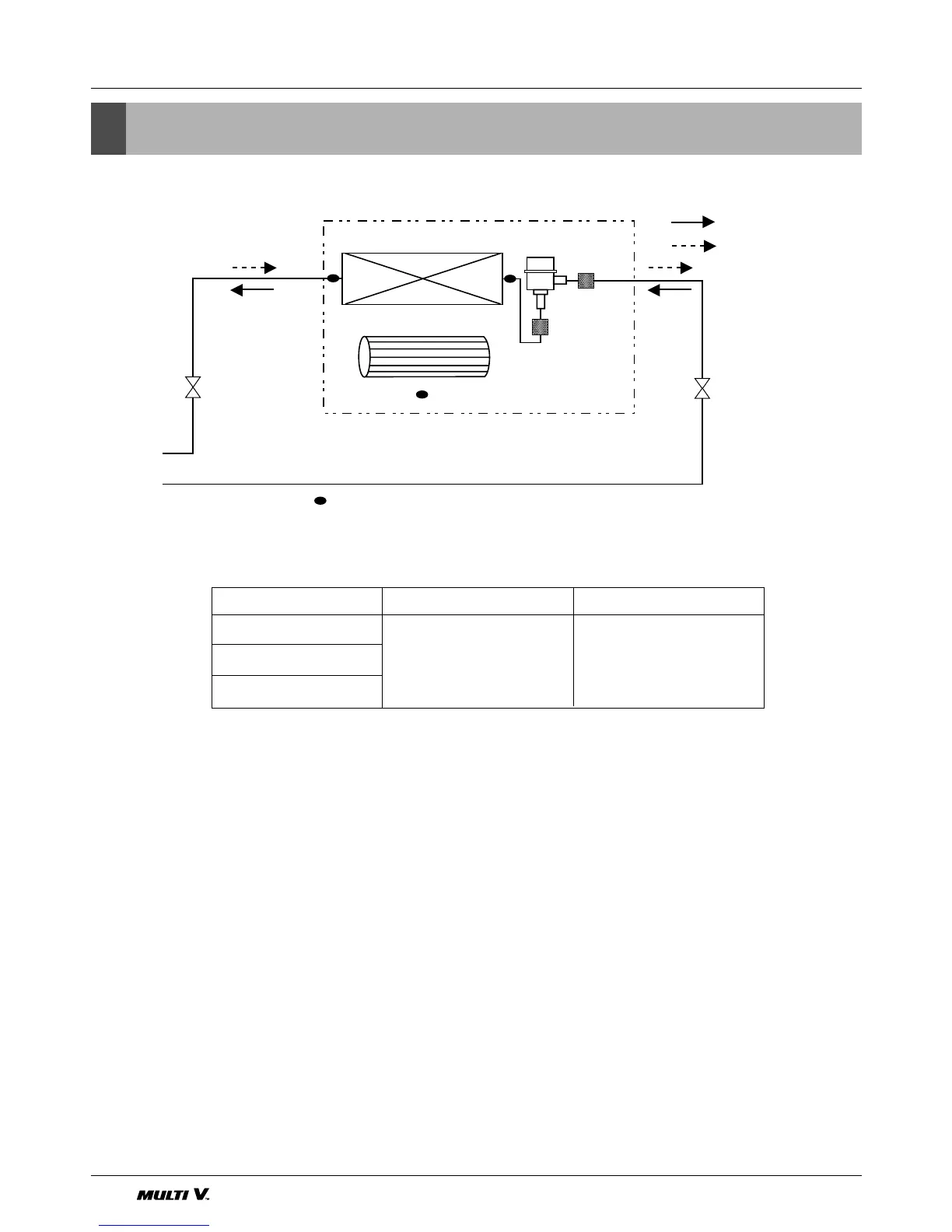

Piping Diagrams
6. Piping Diagrams
Heat Exchanger
C.F.F
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
CRNN076SU*0
CRNN096SU*0
CRNN126SU*0
Gas
12.7(1/2)
Liquid
6.35(1/4)
[unit: mm(inch)]
