LG Multi V CRUN Series User Manual

184 Outdoor Unit
Control Devices

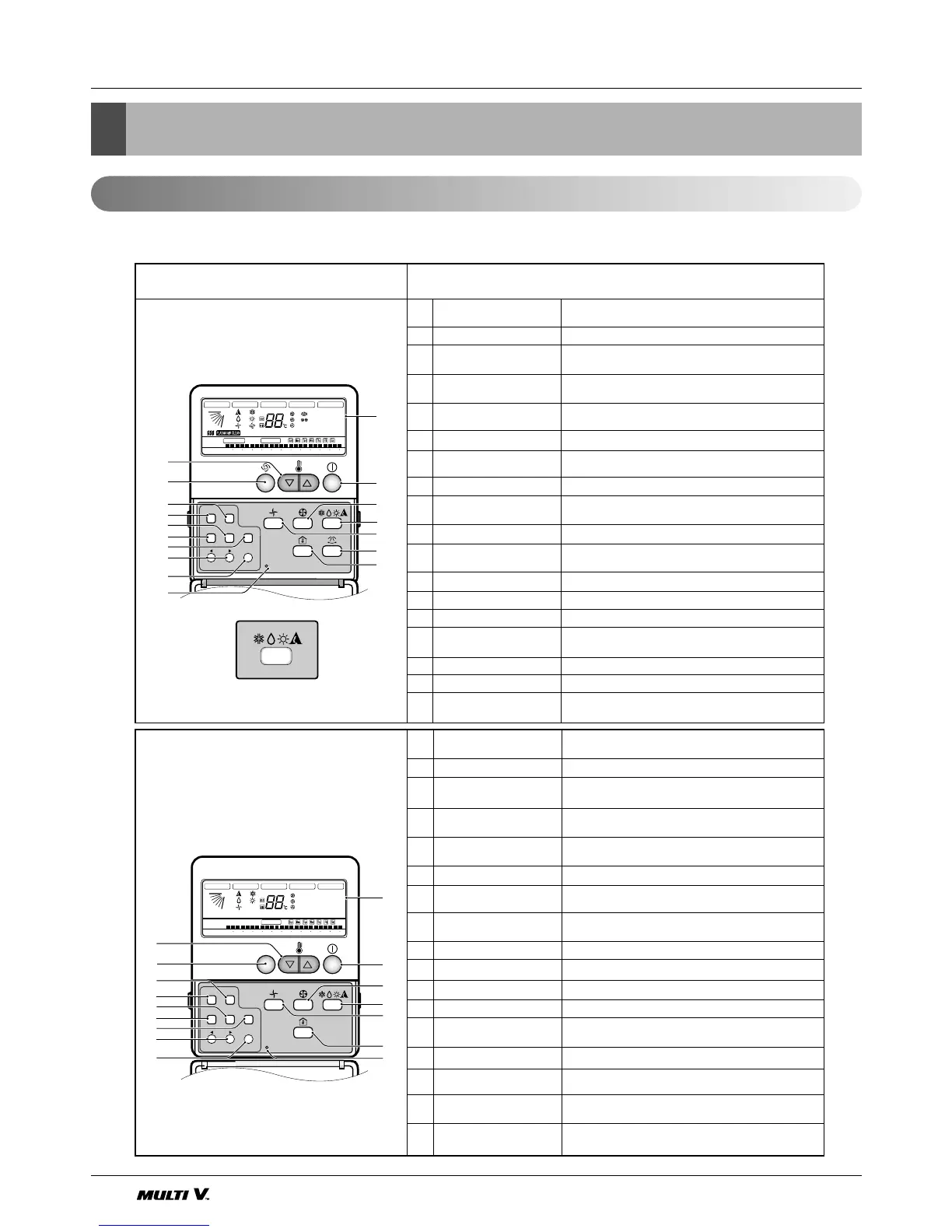

Appearance Functions (Button Descriptions)
Ceiling Mounted Cassette Type:
CRNN -TC/TD/TE
Convertible Type:
CRNN -TB
No. Name Function
1 Operation display
Displays the operation conditions.
2 On/Off
Operation starts when this button is pressed, and
stops when the button is pressed again.
3 Set Temperature
Used to set the temperature when the desired
temperature is obtained.
4 FAN Operation
Used to circulate room air without cooling or
heating.
5 Fan Speed
Used to set the desired fan speed
6
Operation Mode
Selection
Used to select the operation mode.
7 Auto Swing
Used to swing up and down.
8
Room Temperature
Checking
Used to check the room temperature.
9 Timer Cancel
Used to cancel the timer.
10 Timer Set
Used to set the timer when the desired time is
obtained.
11 Week
Used to set a day of the week
12 Program
Used to set the weekly timer.
13 Holiday
Used to set a holiday of the week.
14 Time Set
Used to set the time of the day and change the
time in weekly timer Function.
15 Set and Clear
Used to set and clear the weekly timer.
16 Jet Cool
Used to select jet cool mode.
17 Reset
Used to set the current time and clear the setting
time.
1 Operation display
Displays the operation conditions.
2 On/Off
Operation starts when this button is pressed, and
stops when the button is pressed again.
3 Set Temperature
Used to set the temperature when the desired
temperature is obtained.
4 FAN Operation
Used to circulate room air without cooling or
heating.
5 Fan Speed
Used to set the desired fan speed
6
Operation Mode
Selection
Used to select the operation mode.
7
8
Room Temperature
Checking
Used to check the room temperature.
9
10
Timer Cancel
Used to cancel the timer.
11
Timer Set
Used to set the timer when the desired time is
obtained.
12
Week
Used to set a day of the week
13
Program
Used to set the weekly timer.
14
Holiday
Used to set a holiday of the week.
15
Time Set
Used to set the time of the day and change the
time in weekly timer Function.
Set and Clear
Used to set and clear the weekly timer.
No. Name
Function
Reset
Used to set the current time and clear the setting
time.
16 Signal Receptor
Used to take the signal from wireless remote
control
Plasma
Timer Cancel
Program Week
Hour Min
Holiday
Set/Clr
RESET
ZONE
1234
Operation unit
Humidify JET
AUTO
AUTO SWING OPERATION FAN SPEED
Program set
SUB FUNCTION SET TEMP
Room Temp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Out door
Time
Timer
On
Set no. Time
Off
01 03 05 07 09 11 13 15 17 19 21 23
3
9
11
13
14
10
12
17
15
2
1
5
4
6
8
7
16
Timer Cancel
Program Week
Hour Min
Holiday
SET/CLR
RESET
Operation unit
ZONE
1234
Humidify JET
AUTO
AUTO SWING OPERATION FAN SPEED
Program set
SUB FUNCTION SET TEMP
Room Temp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Out door
Time
Timer
On
Set no. Time
Off
01 03 05 07 09 11 13 15 17 19 21 23
3
16
8
7
9
10
11
12
13
2
1
5
4
6
14
15
Ceiling Concealed Duct Type:
CRNN –BH/BG/BE/BN/BJ
Floor Standing Type:
CRNN –CA/CB/CC/CD
1.1.1 Appearance and Functions
1.1 Wired Remote Control
1. Control Devices and Function
