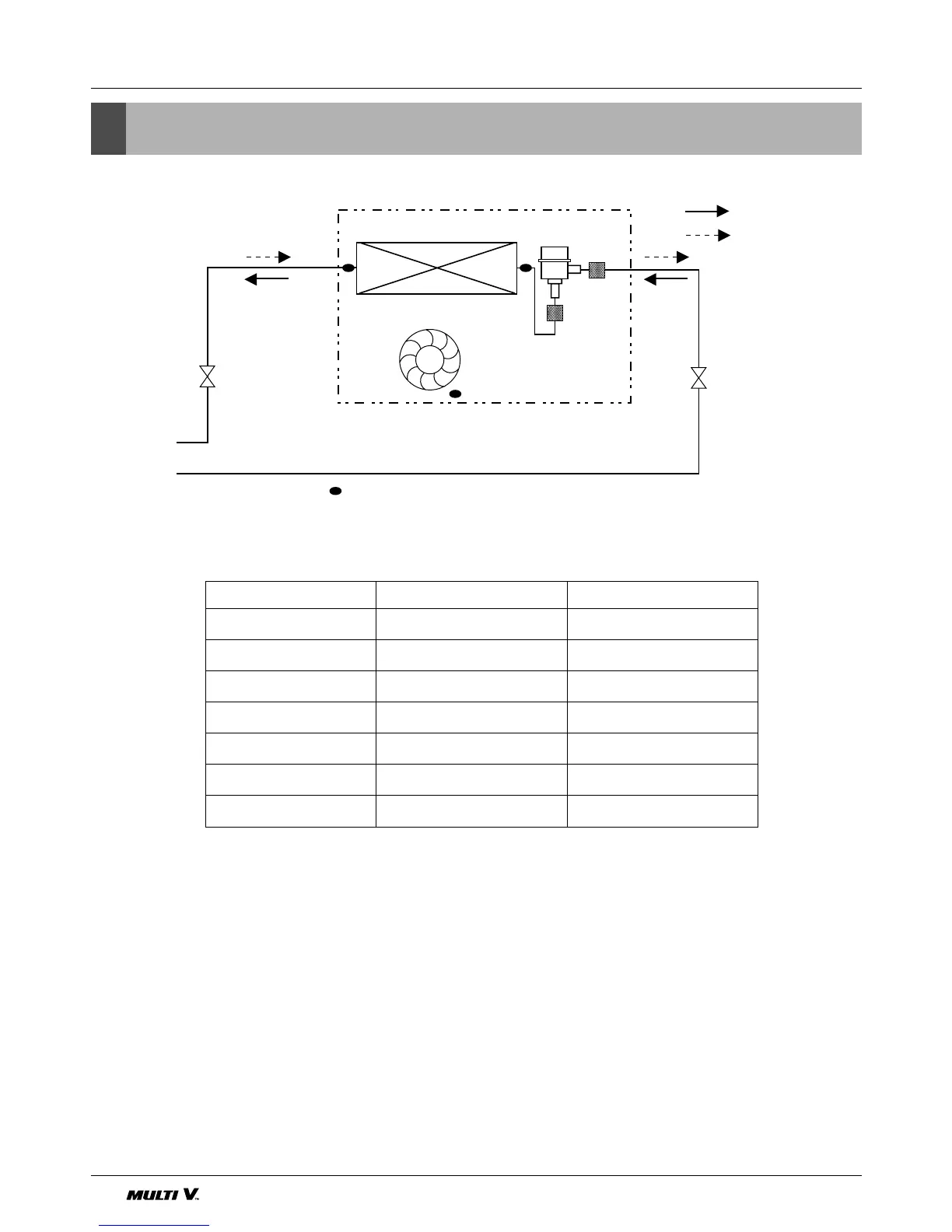

28 Indoor Unit
Piping Diagrams
5. Piping Diagrams
Heat Exchanger
Turbo Fan
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
CRNN126TEA0
CRNN186TEA0
CRNN246TDA0
CRNN286TDA0
CRNN366TDA0
CRNN426TDA0
CRNN486TDA0
Gas
12.7(1/2)
15.88(5/8)
15.88(5/8)
15.88(5/8)
19.05(3/4)
19.05(3/4)
19.05(3/4)
Liquid
6.35(1/4)
9.52(3/8)
9.52(3/8)
9.52(3/8)
9.52(3/8)
9.52(3/8)
9.52(3/8)
[unit: mm(inch)]
