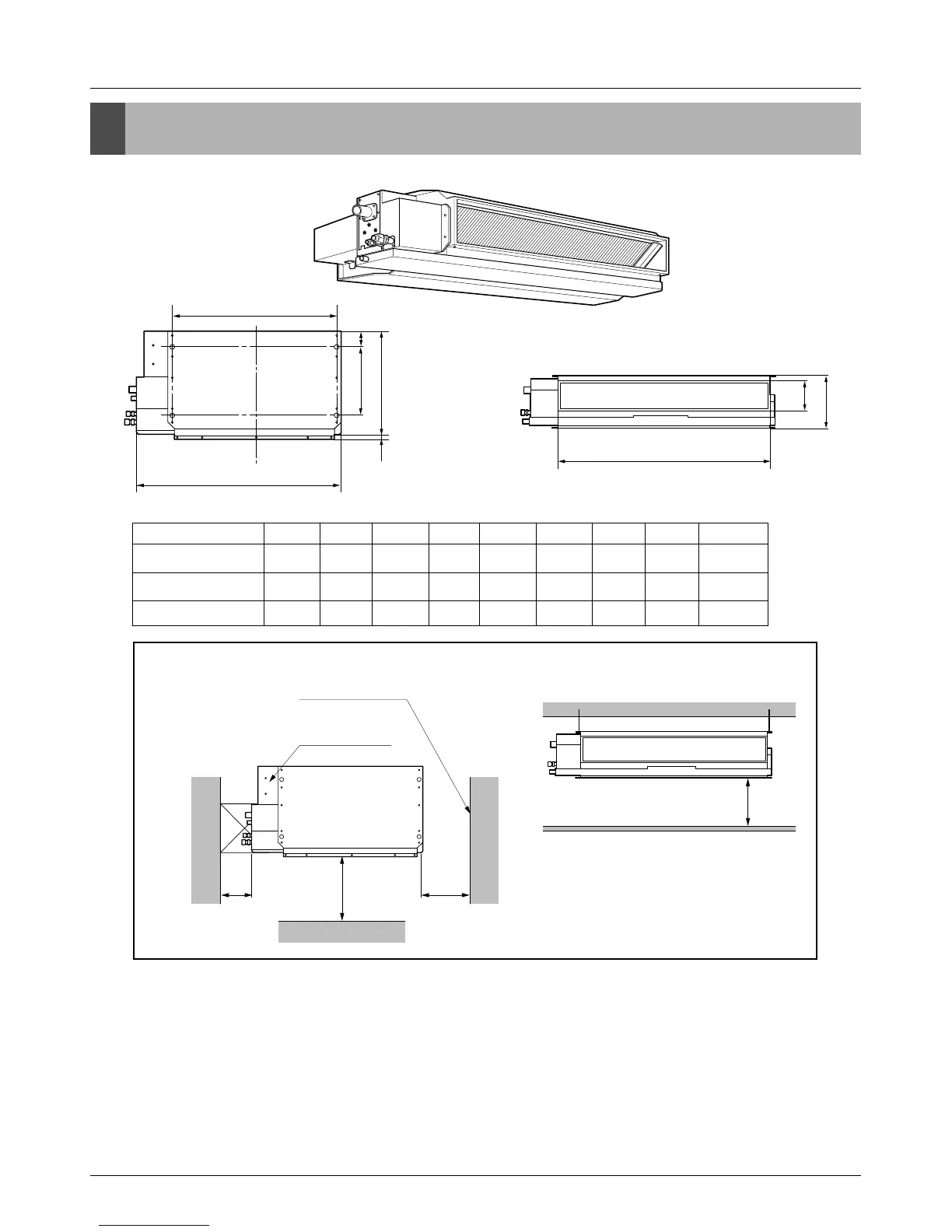

Service Manual 53
Dimensional Drawings
4. Dimensional Drawings
H
Front view
Top view
(unit: mm)
600600
Front
Inspection hole
(600X600)
1000
Control box
B
A
C
D
EF
G
H
J
Model A B C D E F G H J
CRNN076BNG0 783 667 300 100 500 20 639 120 220
CRNN096BJG0 873 767 300 100 500 20 729 120 220
CRNN126BJG0
873 767 300 100 500 20 729 120 220
