Disassembly of the parts
7. Disassembly of the parts
Warning :
Disconnect the unit from power supply before mak-
ing any checks.
Be sure the power switch is set to “OFF”.

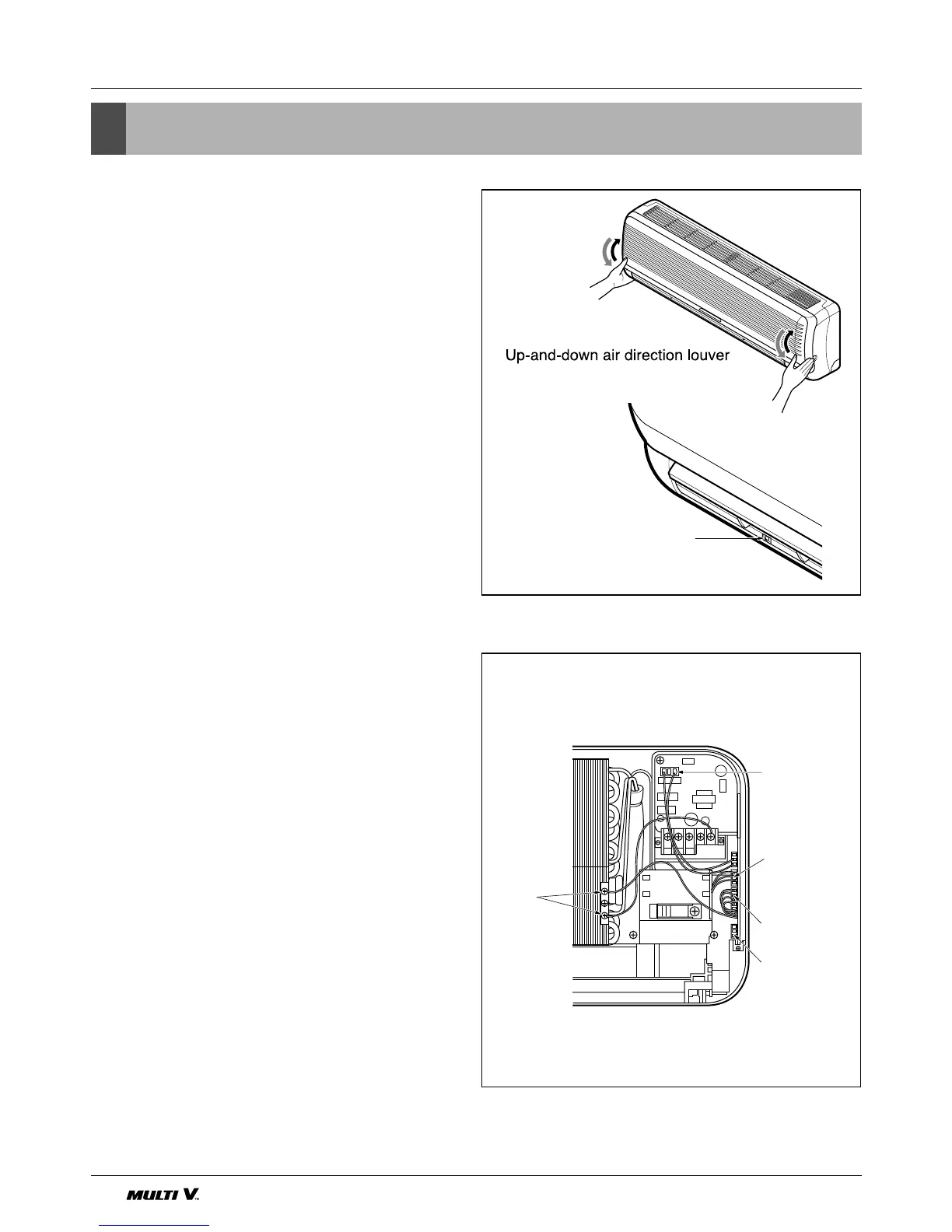

To remove the Grille from the Chassis.
• Set the up-and-down air discharge louver to open
position (horizontally) by finger pressure.
• Remove the securing screws
• To remove the Grille, pull the lower left and right
side of the grille toward you (slightly tilted) and lift
it straight upward.
1. To remove the sensor, housing connect, earth
connector & step motor connector with sen-
sor holder, Motor, Evaporator & P.C.B.
