LG Multi V CRUN Series

198 Outdoor Unit
Deluxe Central Control
2.1.4 System Configuration
Main Specifications
1. Control System
- Centralized control of of maximum 256 indoor units
- Simple Touch PAD method
- GUI setting considering convenience of use
- Power failure compensation with independent Battery Built-in (Max. 2 hours)
2. CNU
- Combination of maximum 8 outside units
- 485 to Ethernet Converter Built-in
3. PI485
- 1 pcs per outdoor units (control of 8 outdoor units per bridge)
Note: - GUI(Graphic User Interface) may be changed without any notice, for improvement or options.

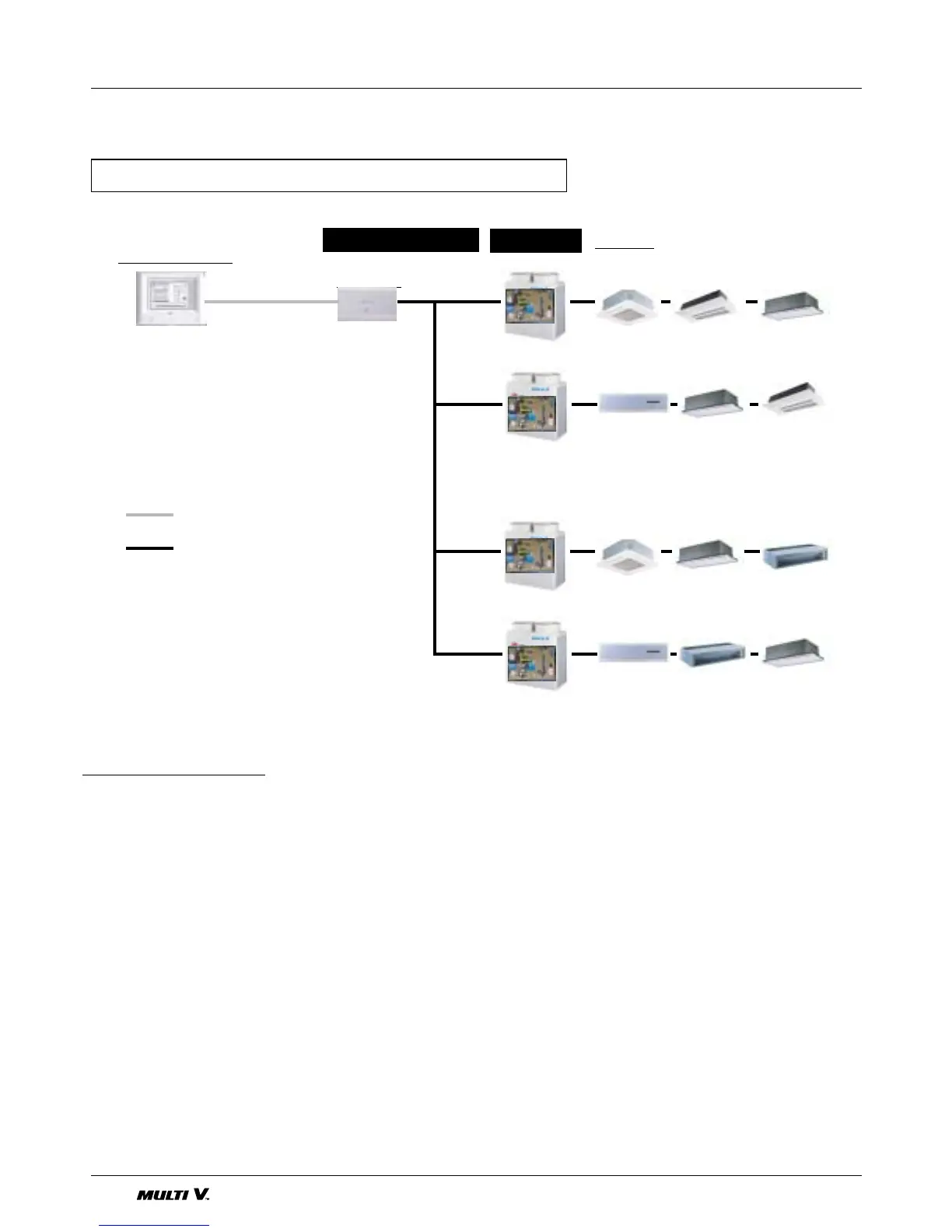

Scenario 1 : In case of not using Internet access function
Control System
Interface
Product
CNU
Delux Central
Control
Multi-V
B part
A part
PI485
PI485
PI485
PI485
Cross UTP Cable
(Cross LAN Cable)
RS-485 Cable
