Service Manual 149

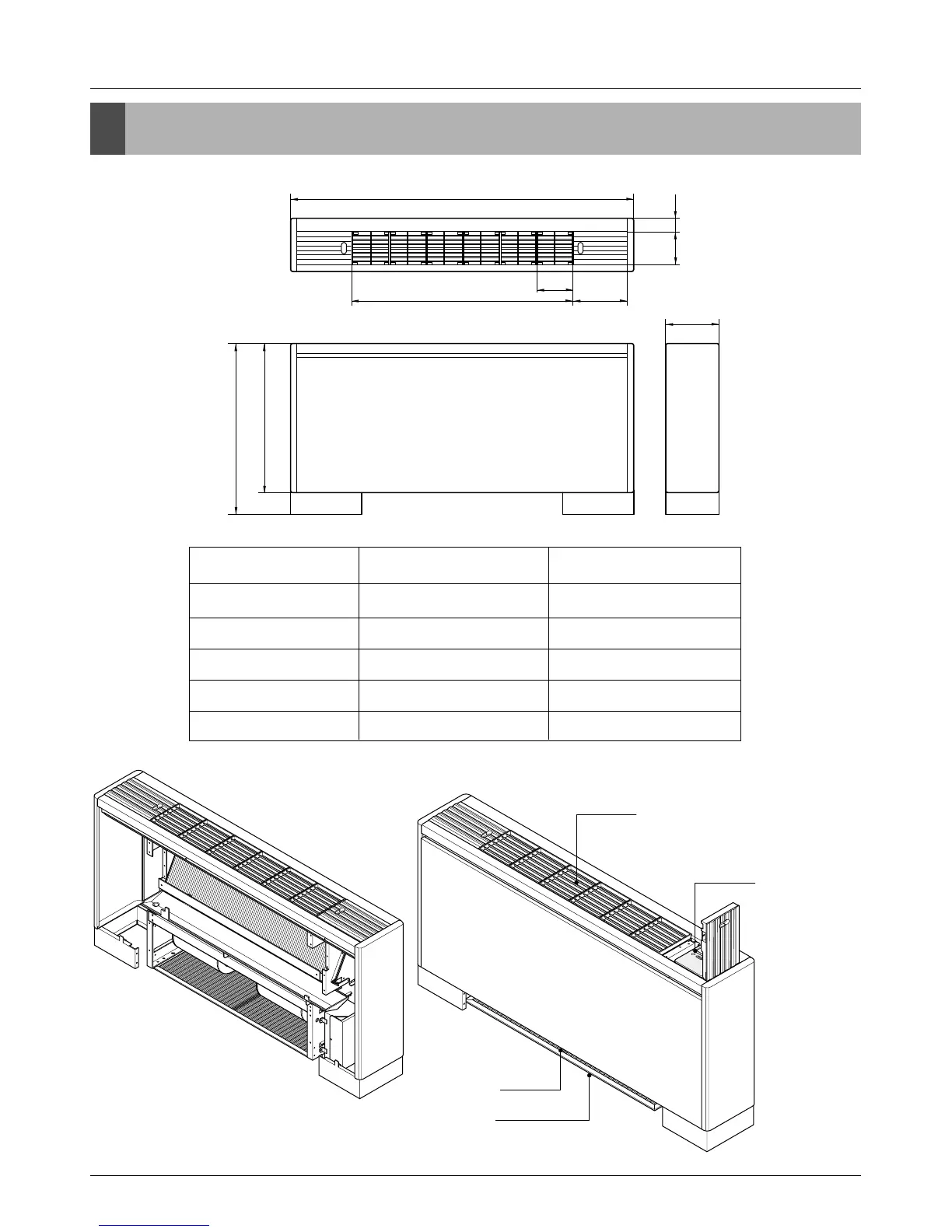

Dimensional Drawings
4. Dimensional Drawings
CRNN076CAA0
CRNN096CBA0
CRNN126CBA0
CRNN186CCA0
CRNN246CDA0
A
B
59
120
620
545
218
120
200
Air Outlet
Wired LCD
Remote Control
Air Filter
Air Inlet
Model
CRNN076CAA0
CRNN096CBA0
CRNN126CBA0
CRNN186CCA0
CRNN246CDA0
A
1,050
1,170
1,170
1,410
1,530
B
600
720
720
960
1,080
