Service Manual 43

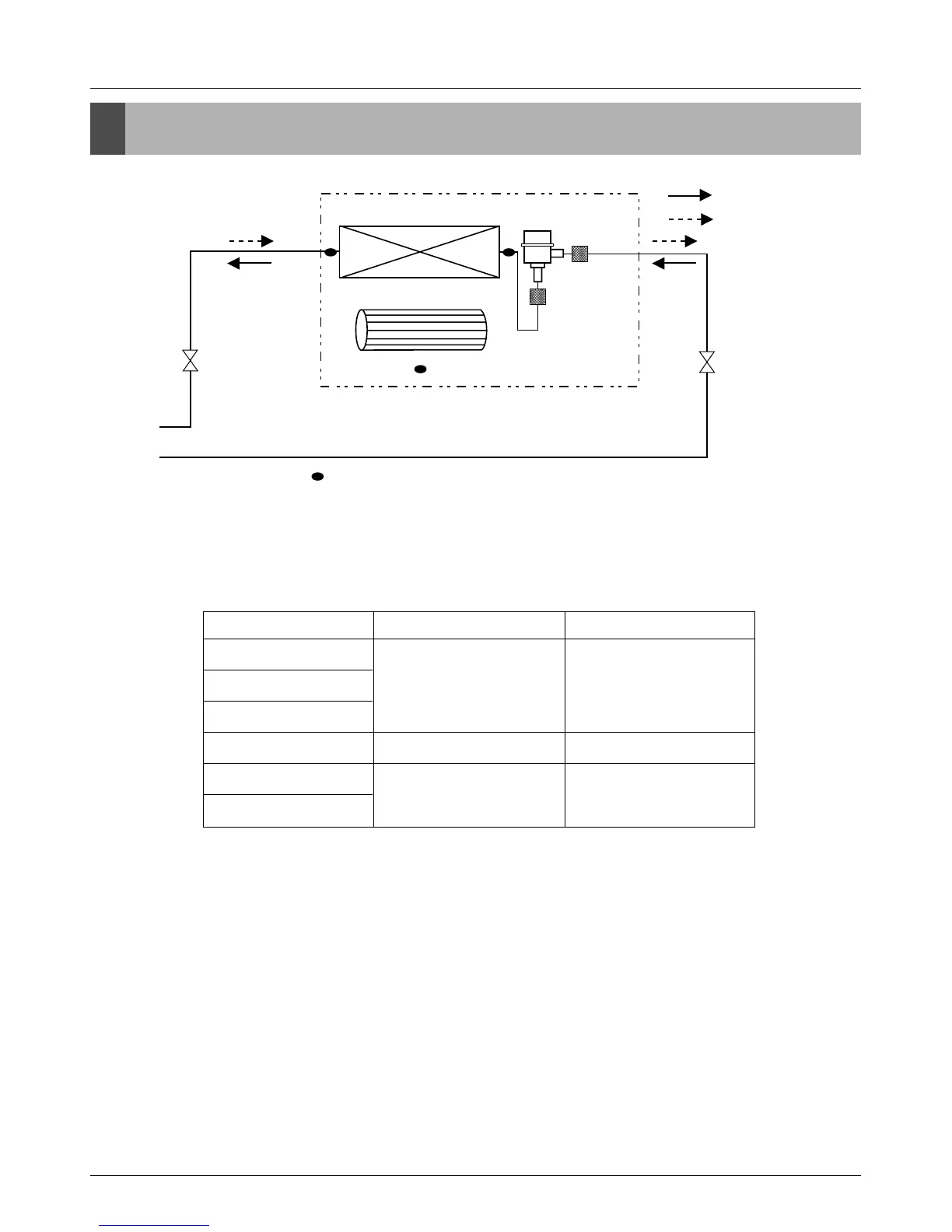

5. Piping Diagrams
Piping Diagrams
Heat Exchanger
Sirocco Fan
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
CRNN186BHA0
CRNN246BHA0
CRNN286BGA0
CRNN366BGA0
CRNN426BGA0
CRNN486BEA0
Gas
15.88(5/8)
19.05(3/4)
19.05(3/4)
9.52(3/8)
9.52(3/8)
Liquid
9.52(3/8)
[unit: mm(inch)]
