54 Indoor Unit

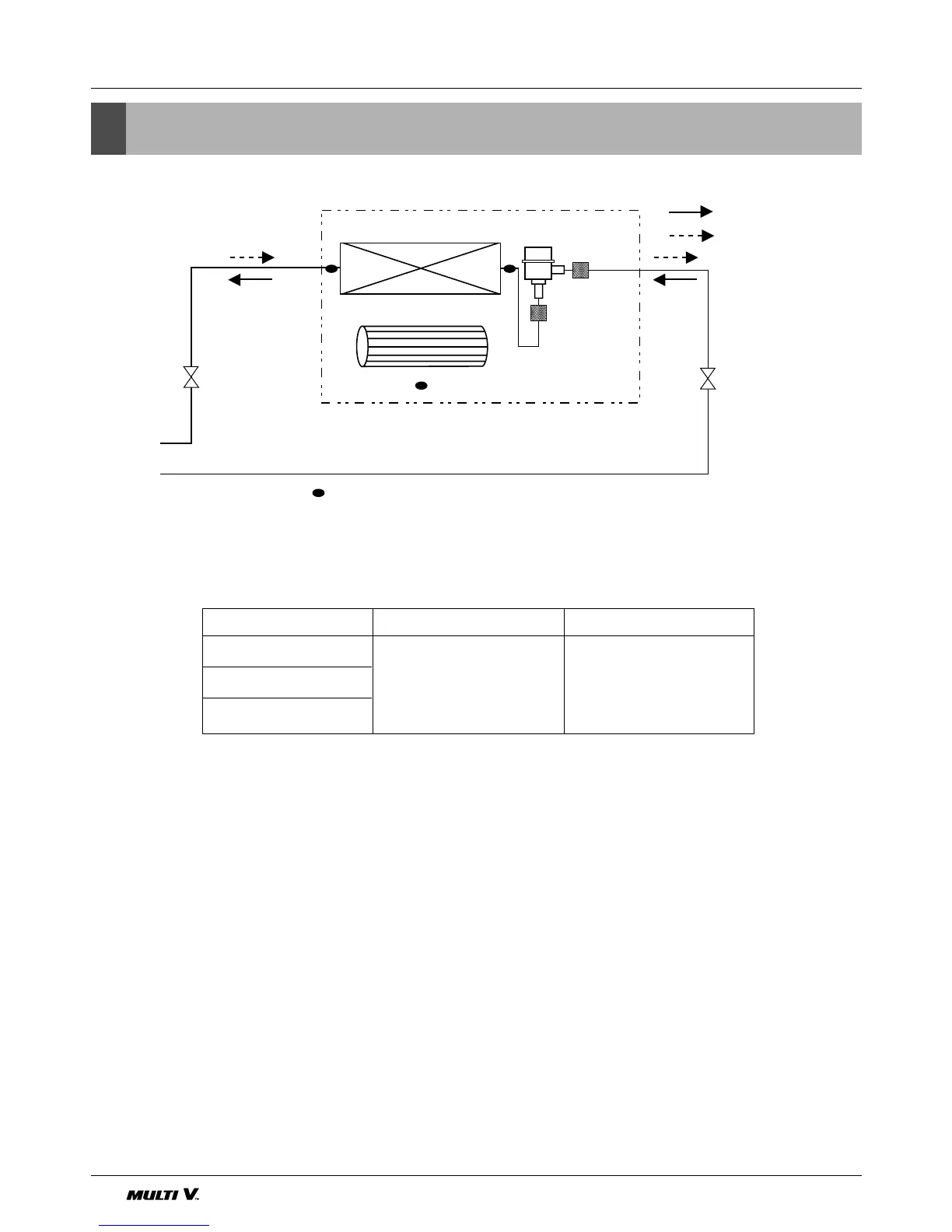

Piping Diagrams
5. Piping Diagrams
Heat Exchanger
Sirocco Fan
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
CRNN076BNG0
CRNN096BJG0
CRNN126BJG0
Gas
Ø12.7(1/2)
Liquid
Ø6.35(1/4)
[unit: mm(inch)]
