42 Indoor Unit
Dimensional Drawings

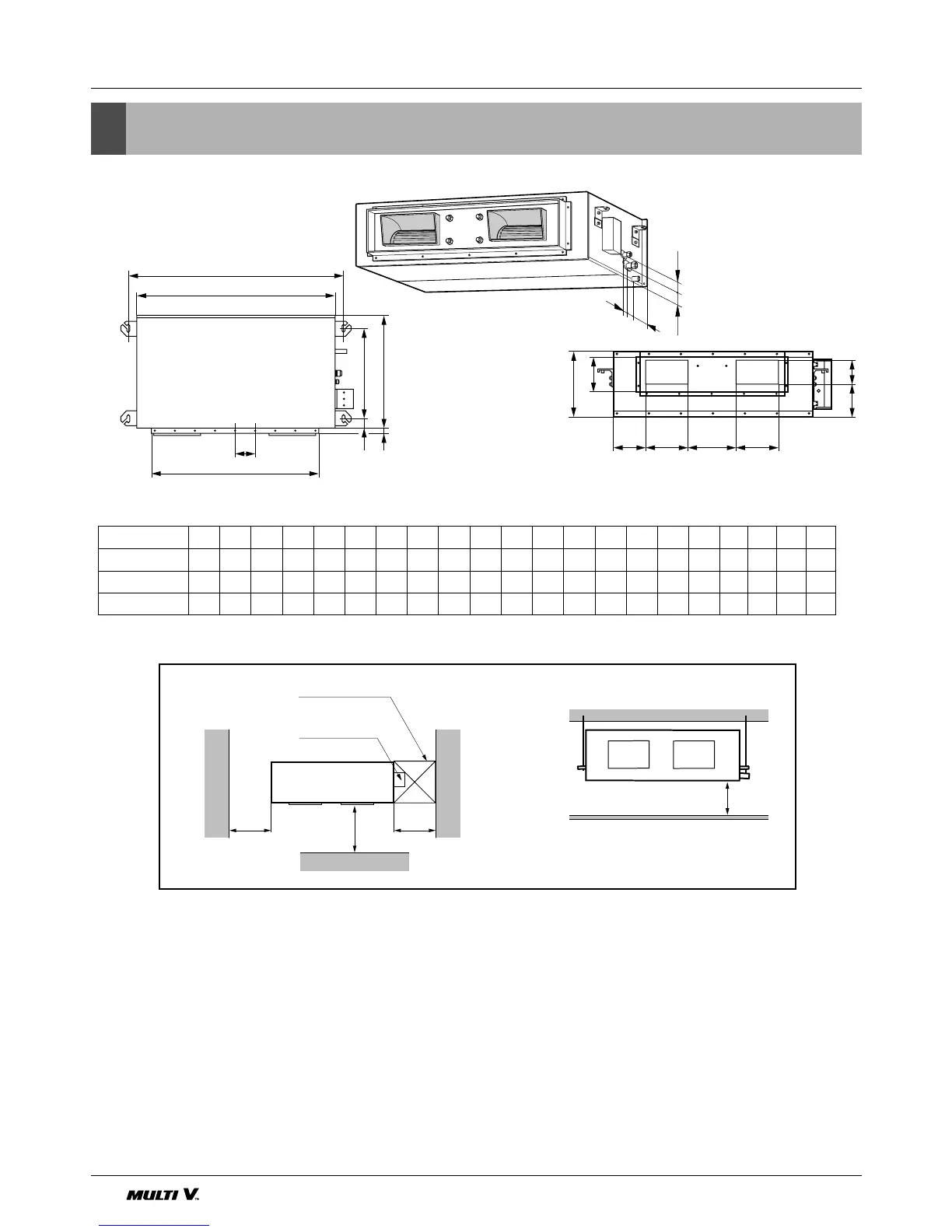

4. Dimensional Drawings
Top view
(unit: mm)
H
Front view
600600
Front
Inspection hole
(600X600)
Control box
1000
l
i
h
j
k
A
H
CD
EF
B
(G)
ab c d
K
J
fe
C D E F (G) H J K a b c d e f h i j k l
355 45.5 450 30 87 750 163 260 61.5 243 212.3 243 110 130 52 66 81 30 158.5
355 45.5 450 30 87 830 186 298 229.5 243 232 243 116 160 53 59 81 19 158.5
570.5 54 680 30 120 1006 294 370 253.5 253 217 253 152 186 42 143 82 50 172
Model A B
186/246BH 932 882
286/366/426BG 1232 1182
486BE 1292 1230
(Unit: mm)
