Service Manual 169

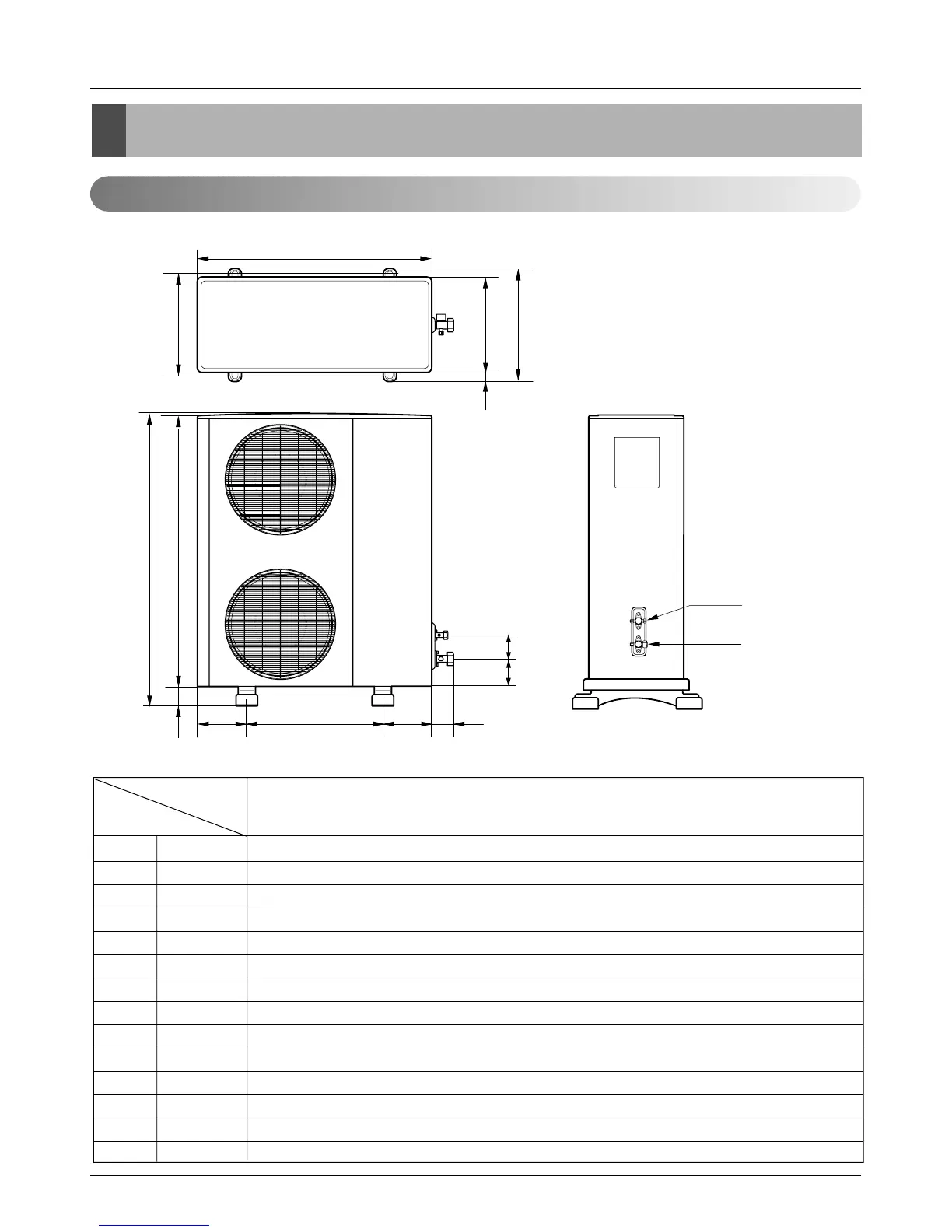

Dimensional Drawings
Model
Dimension
W mm 900
H mm 1225
D mm 370
L1 mm 460
L2 mm 45
L3 mm 410
L4 mm 1135
L5 mm 90
L6 mm 550
L7 mm 175
L8 mm 175
L9 mm 112
L10 mm 120
L11 mm 83
CRUN458S0
L6L7 L8 L9
L4
H
L11
L10
L5
W
D
L1
L2
L3
Gas side
3-way valve
Liquid side
3-way valve
CRUN158S0
4. Dimensional Drawings
