LG Multi V CRUN Series

86 Indoor Unit
Indoor Unit
Wall Mounted

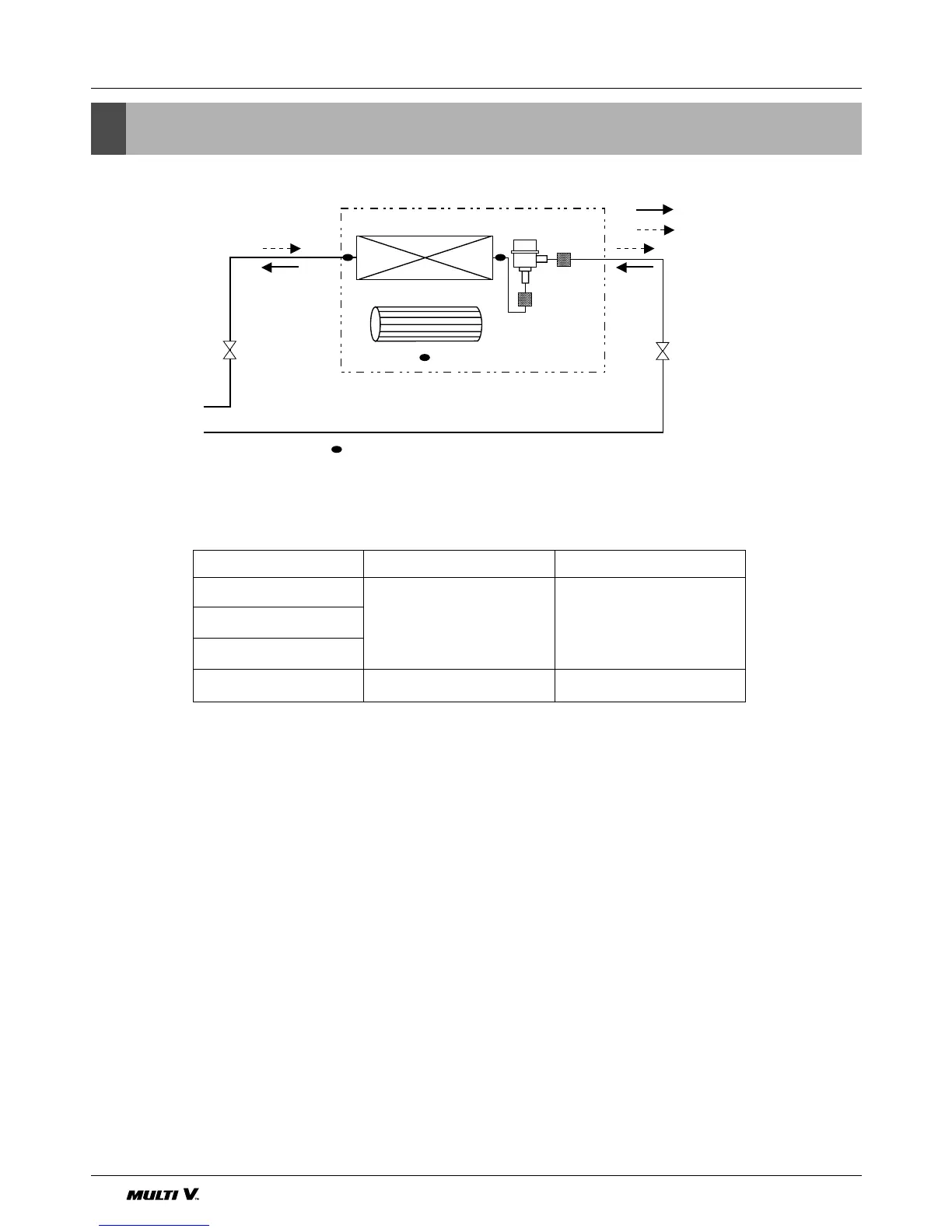

Piping Diagrams
5. Piping Diagrams
Heat Exchanger
C.F.F
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
CRNN076SRA0
CRNN096SRA0
CRNN126SRA0
CRNN186STA0
Gas
12.7(1/2)
15.88(5/8)
Liquid
6.35(1/4)
9.52(3/8)
[unit: mm(inch)]
