LG Multi V CRUN Series

150 Indoor Unit
Piping Diagrams

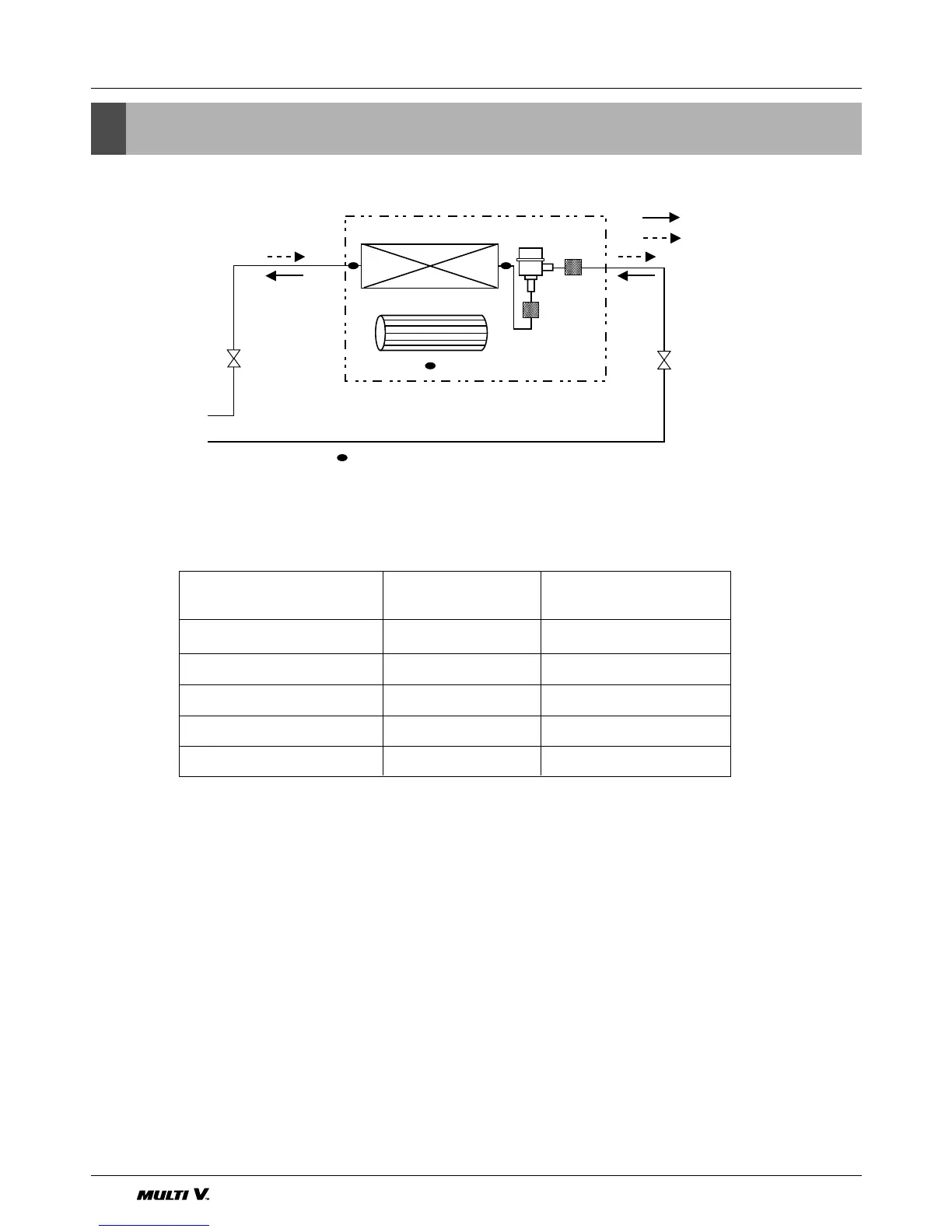

5. Piping diagrams
Heat Exchanger
Sirroco Fan
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
CRNN076CAA0
CRNN096CBA0
CRNN126CBA0
CRNN186CCA0
CRNN246CDA0
Gas
12.7(1/2)
12.7(1/2)
12.7(1/2)
15.88(5/8)
15.88(5/8)
Liquid
6.35(1/4)
6.35(1/4)
6.35(1/4)
9.52(3/8)
9.52(3/8)
[unit: mm(inch)]
